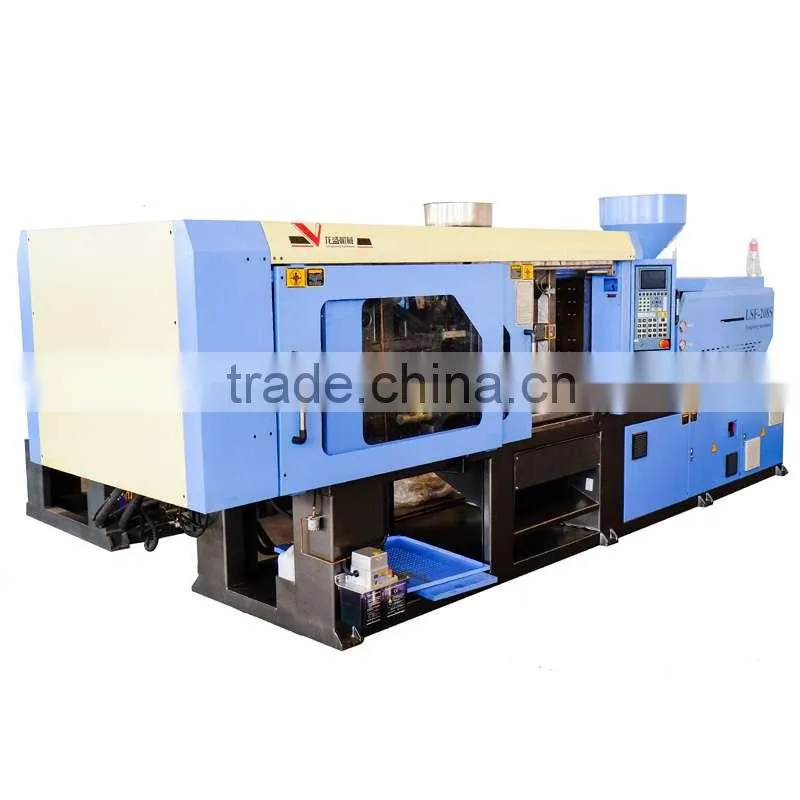

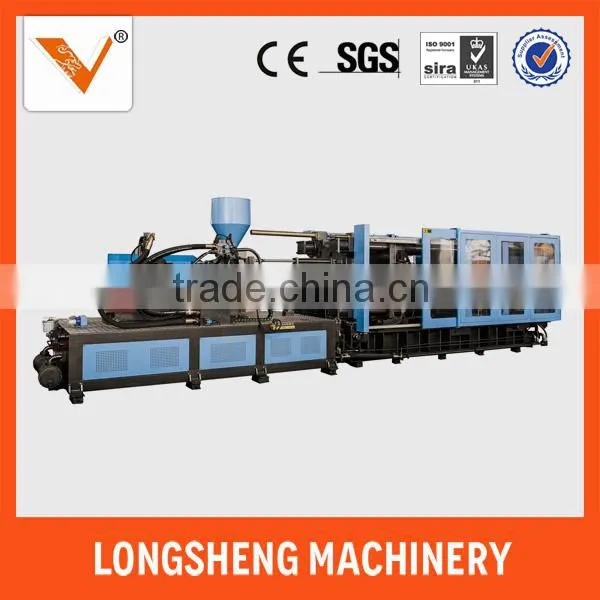

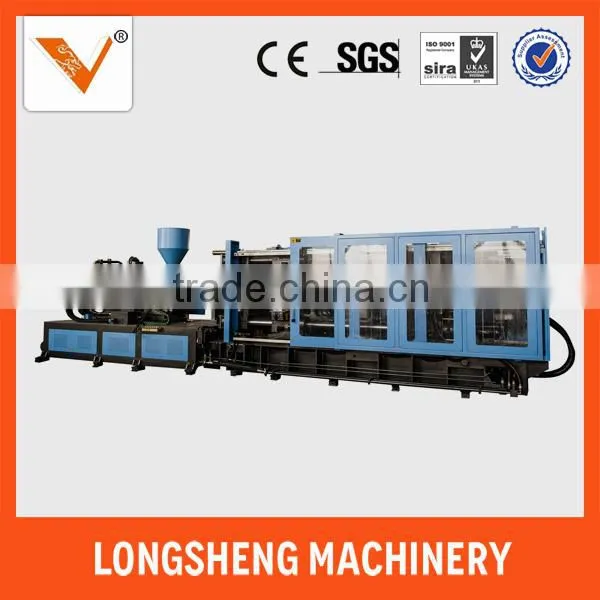

manufacturing machine 528ton
Clamping force of our machine from 600 to 32000KN, injection weight from 68g to 40570g. which can meet different sizes & weights of products production requirements. features like durability & sturdy construction.
Our strong technical team always offer timely and professional services which will give you technology and production support.
manufacturing machine 528ton Technical specifications;
| Model No | Clamp force (KN) | Injection weight (g) | Tie bar sizes (mm) | Toggle stroke (mm) | Mold sizes (mm) |
| LSF68 | 680 | 60-107 | 310*310 | 285 | 100-330 |
| LSF98 | 980 | 140-188 | 360*360 | 330 | 150-400 |
| LSF128 | 1280 | 191-267 | 410*380 | 380 | 150-430 |
| LSF148 | 1480 | 201-282 | 410*410 | 380 | 150-460 |
| LSF168 | 1680 | 274-428 | 460*460 | 450 | 180-520 |
| LSF208 | 2080 | 347-518 | 510*510 | 500 | 200-530 |
| LSF258 | 2580 | 507-730 | 560*530 | 505 | 200-560 |
| LSF308 | 3080 | 830-1136 | 630*630 | 590 | 200-630 |
| LSF398 | 3980 | 1260-1646 | 720*720 | 700 | 280-760 |
| LSF528 | 5280 | 1920-2430 | 810*810 | 800 | 350-850 |
| LSF628 | 62800 | 2270-2903 | 880*835 | 840 | 330-880 |
| LSF718 | 71800 | 2560-3826 | 910*910 | 930 | 380-950 |
| LSF880 | 88000 | 4000-5525 | 1000*1000 | 1000 | 420-1120 |
| LSF1180 | 11800 | 4203-5871 | 1150*1100 | 1200 | 500-1200 |
| LSF1380 | 13800 | 5969-8125 | 1300*1260 | 1260 | 530-1280 |
| LSF1680 | 16800 | 7520-10015 | 1500*1350 | 1520 | 700-1500 |
| LSF2200 | 22000 | 11349 | 1650*1650 | 1650 | 800-1620 |
| LSF2680 | 2680 | 23678 | 1800*1720 | 1720 | 800-1800 |
manufacturing machine 528ton Structure(Standard Configuration)
1. Adopting double-cylinder injection, with multilevel injection, pressure maintaining and anti-dribbling action, good injection pressure and good injection speed.
2. Low-speed high torque hydraulic motors drive screws directly, stepless speed changing is achieved.
3. Adopting five-pivot point double-elbow hydraulic machinery clamping devices and stable movement.
4. Adopting computer control, proportional electrohydraulic drive, auto-alarm, fail safe, high degree of automation.
5. Hydraulic motor actuate gearwheel to regulate mold.
6. Pre-molding and back-pressure regulator.
7. Low pressure protection for mold.
8. Multiple hydraulic ejecting.
9. Hydraulic oil pressure, double-pump, double-proportion control.
10. Single hydraulic inserting and taking-out core device.
11. Mechanical and electrical safety device.
12. Molding memory system.
13. Liner displacement sensor control.
14. Special computer for injection molding machine.
15. The machine has “Manual” mode, “Semi-automatic” mode and “Automatic” mode. “Automatic” mode including “Electric Eye” automatic and “Time” automatic for users to choose.
16. Hydraulic components are designed to be outside the machine, which is easy for installation and maintenance.
manufacturing machine 528ton Features:
1)Plastic injection moulding machine hydraulic unit
This unit of our plastic injection molding machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.

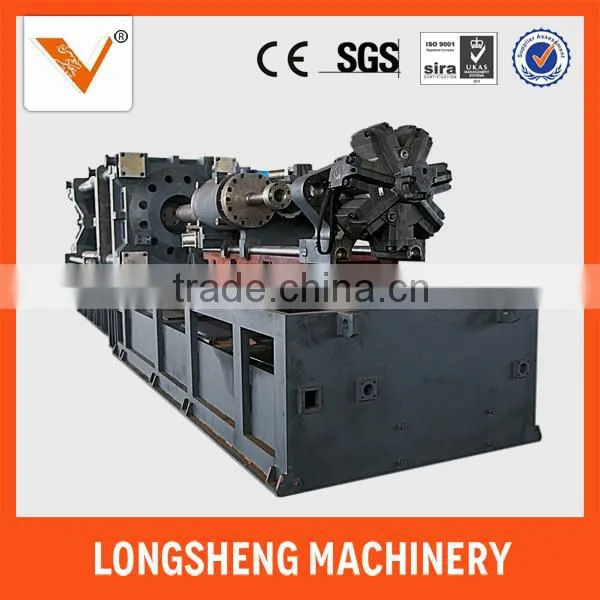

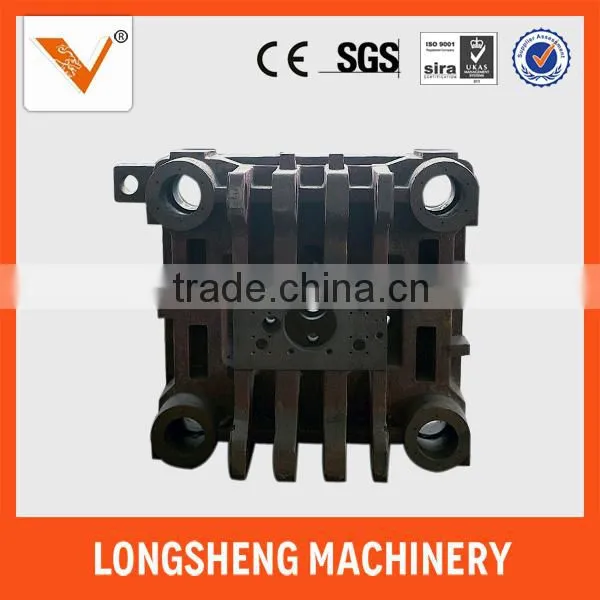

2)Plastic injection moulding machine clamping unit
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.

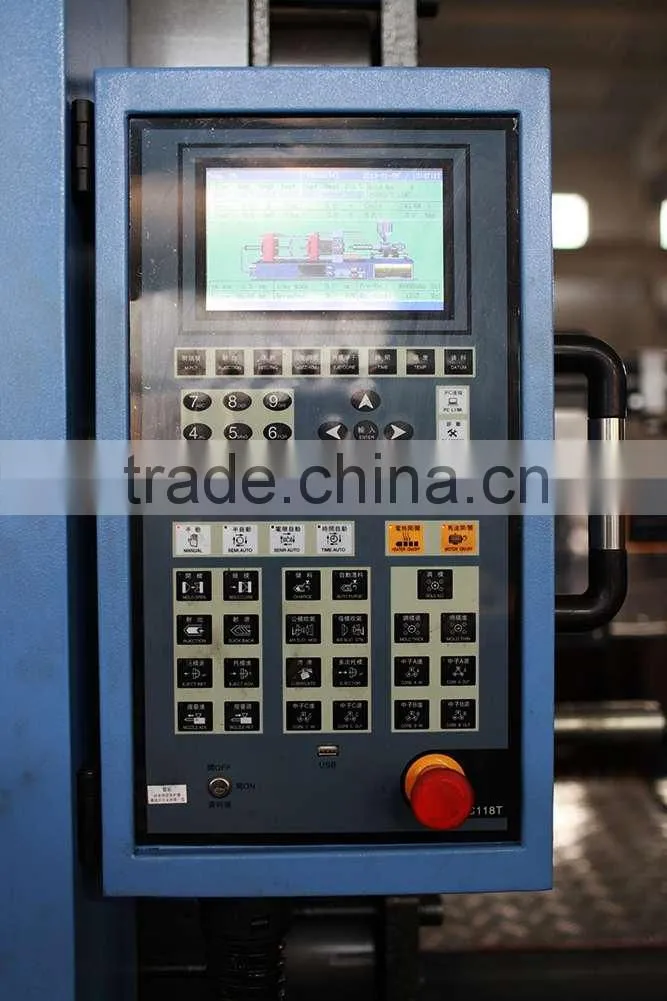

3)Plastic injection machine electronic equipments control
It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.
manufacturing machine 528ton Services;
One year guarantee
24 hours technical support by email
calling or door to door services
We are a Chinese professional injection molding machine and mould manufacturer, providing four types of injection with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g.
Welcome to contact me for professtional solutions.
