Home > Products > Synchronized Injection Molding Machine > 28mm pet preform injection moulding

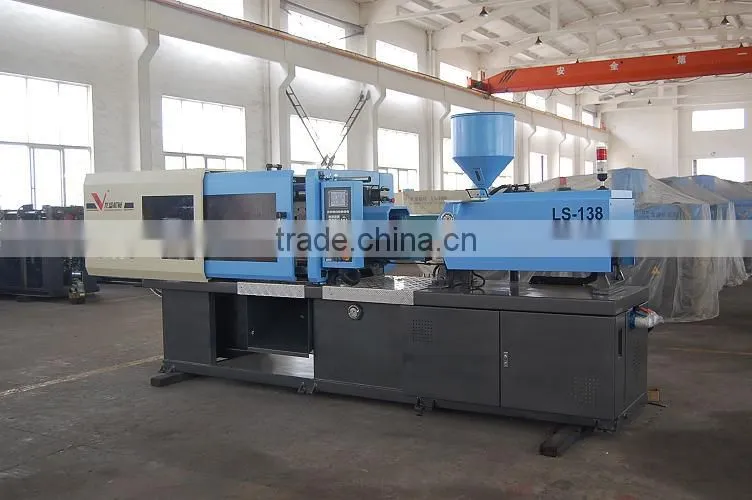

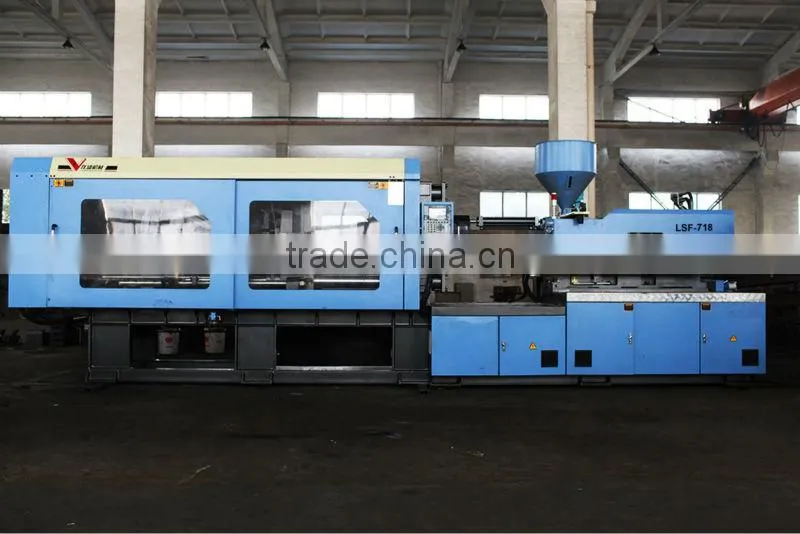

28mm pet preform injection moulding
- 50 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Tube Head Injection | Style: | Horizontal |
Brand Name: | LONGSHUN | Model Number: | LSF-398 | Place of Origin: | Jiangsu, China |
Plastic Type: | Thermoplastic | Automatic: | Yes | Injection Weight: | 1260 g- 1646 g |
Injection Rate: | 310 g/s- 405 g/s | Clamping Force: | 3980kn | Opening Stroke: | 700 |
Power(W): | 30.9 | Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard package
Product Description
Specifications
28mm pet preform injection mouldingA) Energy saving
B) Low noise
C) Low cost
D) Easy operating
28mm pet preform injection moulding:
We are a Chinese professional injection molding machine and mould manufacturer, providing different models of machines with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g. With 15 years experience, we can produce low energy consumption and high efficient machine.
Advantages:
A) Energy saving: Save 50% to 70% compared to ordinary machine.
B) Easy operating: Parameters settings, system speed adjusting is simple digit function.
C) High performance: High response (30ms-130ms), high stability, repetition.
D) Fast response: Energy saving, high precision and lower defectives and waste.
E) Spare parts: Come from Japan, Germany, Italy etc.
F) High precision: Correct the result to 2 decimal places.
G) Visual lubricating system: Protective machinery parts without abrasion and broken.
Important features:
A) Clamping Unit:
Five points double toggle mould clamping mechanism is featured with fast opening & clamping, stable & energy saving.
Reliable low pressure protection function greatly prolongs the service life of the mould.
Mechanical & double electric interlock protection devices guarantee the safety of the operators.
B) Injection Unit:
Infection platform is fixed by double axis pin plus flat key so that it is stable.
Double cylinder balance infection molten material mechanism provides high-pressure injection of molten material & safe space.
C) Features of hydraulic system:
Perfect combination between computer & high efficient proportional plunger variable pump saves electricity by 25%-50%.
D) Controller:
Six stages material injection speeds & pressure, three stages pressure holding speed & pressure, and two stages material molten speed & pressure control can meet all complicated process requirement of products.
Fuzzy temperature control is used. High & low temperature deviation alarm & thermocouple disconnection inspection functions are available.
INJECTION UNIT |
| Unit | LSF-398 | ||
A | B | C | |||
Screw Diameter | Mm | 70 | 75 | 80 | |
Screw L/D Ratio | L/D | 21.4 | 20 | 18.8 | |
Short Size | Cm3 | 1385 | 1590 | 1809 | |
Injection weight | G | 1260 | 1447 | 1646 | |
Injection Rate | g/s | 310 | 356 | 405 | |
Plasticizing capacity | g/s | 60 | 65 | 70 | |
Injection Pressure | Mpa | 195 | 158 | 139 | |
Screw Speed | Rpm | 0-165 | |||
CLAMPING UNIT | Clamp Force | KN | 3980 | ||
Space Between Tie Bars | mm | 720*720 | |||
Toggle Stroke | mm | 700 | |||
Max. Mold Height | mm | 760 | |||
Min. Mold Height | mm | 280 | |||
Ejector Stroke | mm | 200 | |||
Ejector Tonnage | KN | 110 | |||
Ejector Number | P | 13 | |||
OTHERS | Max. pump Pressure | Mpa | 16 | ||
Pump motor powder | Kw | 37 | |||
Heater Power | Kw | 24.8 | |||
Machine Dimension(L*W*H) | M | 7.3*2.0*2.2 | |||
Oil Tank Capacity | L | 850 | |||
Machine Weight | T | 16 |
Service:
A) Before sales service:
Our sales and technical team can provide the plastic mould design and relevant parameter suggestions to help them decide the most suitable machine.
B) During sales service:
We help customer to make the workshop display, such as electricity line and cooling water installation and provide free operating training.
C) After sales service:
Our engineers will help customer to install and debug the plastic molding machine. During the 1 year guarantee time, we offer all the damaged parts free of charge.
Company Profile
Changzhou Longsheng Machinery Co., Ltd. (Longsheng) is located at Zhonglou Science and Technology Industry Park of Changzhou. We mainly produce and sell plastic injection molding machines, with high technology and reliable quality. Our products are selling well all over the world. We compare price with the same quality, while comparing quality with the same price, and compare service with the same quality and price, so as to improve our management. We always integrate optimized designs with manufacture and good sales service together. We utilize 24 hours networking for sales services. All lifecycle services for products and smile are our characteristics.
Ways to success start from Longsheng. With strong capability, Longsheng is devoted to building a brand name - Longsheng Machinery Series. The clamp force of our machines ranges from 600KN to 16800KN, and shot weight ranges from 63g to 10,000g. Our plastic injection molding machines are widely applied in the areas of automobile, mechanical, chemical, and electrical industries, daily supplies, and toys.
With good quality, professional services and sincere credit, Longsheng can go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefits. We can try to create a prosperous future with our customers as we always do.
