Specifications
For all volume of preform productionHigh rigidity,long working life
Energy saving 20% to 80%
Timely aftersales serveces
plastic bottle tube making machine price

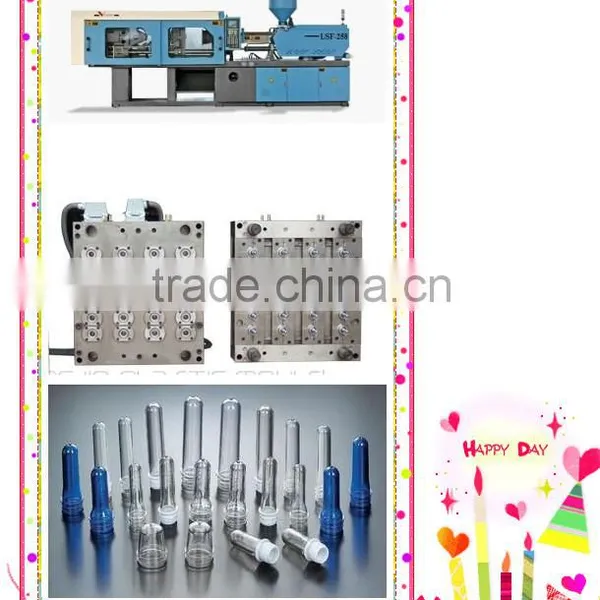

Our bottle tube making machines can production all volume of tubes, welcome contact for more details & professional services.
Our strong technical team always offer timely and professional services which will give you technology and production support.
Technical specification of LSF-208;
|
INJECTION UNIT |
Unit |
LSF-208 |
|||
A |
B |
C |
|||
Screw Diameter |
Mm |
45 |
50 |
55 |
|
Screw L/D Ratio |
L/D |
22.2 |
20 |
18.2 |
|
Short Size |
Cm3 |
381 |
471 |
569 |
|
Injection weight |
G |
347 |
428 |
518 |
|
Injection Rate |
g/s |
170 |
210 |
254 |
|
Plasticizing capacity |
g/s |
19 |
23.2 |
28.7 |
|
Injection Pressure |
Mpa |
229 |
186 |
154 |
|
Screw Speed |
Rpm |
0-190 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
2080 |
||
Space Between Tie Bars |
mm |
510*510 |
|||
Toggle Stroke |
mm |
500 |
|||
Max. Mold Height |
mm |
530 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
150 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
5 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
18.5 |
|||
Heater Power |
Kw |
14.25 |
|||
Machine Dimension(L*W*H) |
M |
5.3*1.4*1.95 |
|||
Machine Weight |
T |
6.9 |
|||
Advantages:
Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate

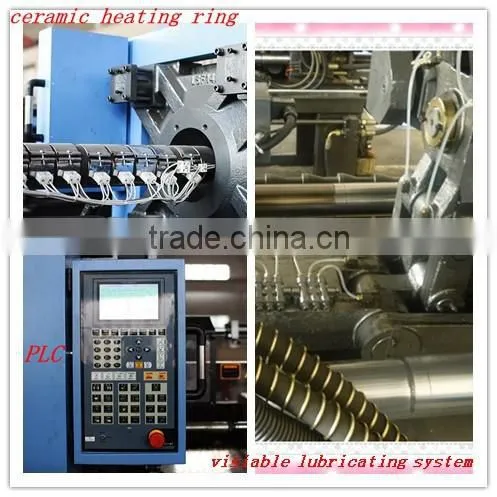

Control system: PLC computer control,simple operation,molding data memory system
Power system: 30-70% power saving, high efficient and precise
Metal parts: Thickness of machine frame, metal plate and wallboard are thicker than other company
Ceramic heating loop: Uniform heating, better thermal insulation properties, good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
