plastic sealing strip injection moulding machine
- 300 Set / Sets per Month
- shanghai
- T/T Credit Card
Product Details
Condition: | New | Product Type: | Other, perfoms | Place of Origin: | Jiangsu, China |
Brand Name: | Longsheng | Model Number: | LSF98 | Voltage: | customize |
Power(W): | 17kw | Dimension(L*W*H): | 3.92*1.1*1.9 | Weight: | 3.5T |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard export package
Product Description
Specifications
Sealing strip in different sizesmachine with High rigidity,long working life
Energy saving by 60%-70%
Technical specification of LSF-98 pet preform machine;
INJECTION UNIT | Unit | LSF-98 | |||
A | B | C | |||
Screw Diameter | Mm | 34 | 37 | 40 | |
Screw L/D Ratio | L/D | 22.3 | 20.5 | 19 | |
Short Size | Cm3 | 154 | 177 | 207 | |
Injection weight | G | 140 | 161 | 188 | |
Injection Rate | g/s | 78 | 92 | 116 | |
Plasticizing capacity | g/s | 12 | 15 | 17 | |
Injection Pressure | Mpa | 232 | 196 | 168 | |
Screw Speed | Rpm | 0-210 | |||
CLAMPING UNIT | Clamp Force | KN | 980 | ||
Space Between Tie Bars | mm | 360*360 | |||
Toggle Stroke | mm | 330 | |||
Max. Mold Height | mm | 400 | |||
Min. Mold Height | mm | 150 | |||
Ejector Stroke | mm | 110 | |||
Ejector Tonnage | KN | 33 | |||
Ejector Number | P | 5 | |||
OTHERS | Max. pump Pressure | Mpa | 16 | ||
Pump motor powder | Kw | 11 | |||
Heater Power | Kw | 6.2 | |||
Machine Dimension(L*W*H) | M | 3.92*1.1*1.9 | |||
Machine Weight | T | 3.5 |
Service for installation, training and dispatching the technician
- if user require dispatching our technical for the new machine installation or operation training, the user will afford the fee for our engineer’s round-trip ticket ,board and lodging during installation ,and salary(100USD/day), we will run the machine and train the workers in buyer place until everything is satisfying.
Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of PP,PE .PPR ,PVC ,PC ABS ,PET …products injection moulding machine ,the clamp force is from 68 ton to 1680ton .injection weight ranges from 60g to 10000g .
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic productssuch as precision electronics, telecommunication equipment, home appliances, toys, auto parts and so on.
Q: What is the ability of your factory?
A: About injection molding machine, we could produce 60-80 sets machines per month.
Q: Do you have any technical supports about your products?
A: We have many agents in the world , like in Russia , in Egypt, in Iran and in UZ ,etc , which will give you on site technical support, Or we will send you our technical engineer to buyer’s factory for installation ,
Q: Do you have any other service about your products?
A: We have a lot of experience on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system

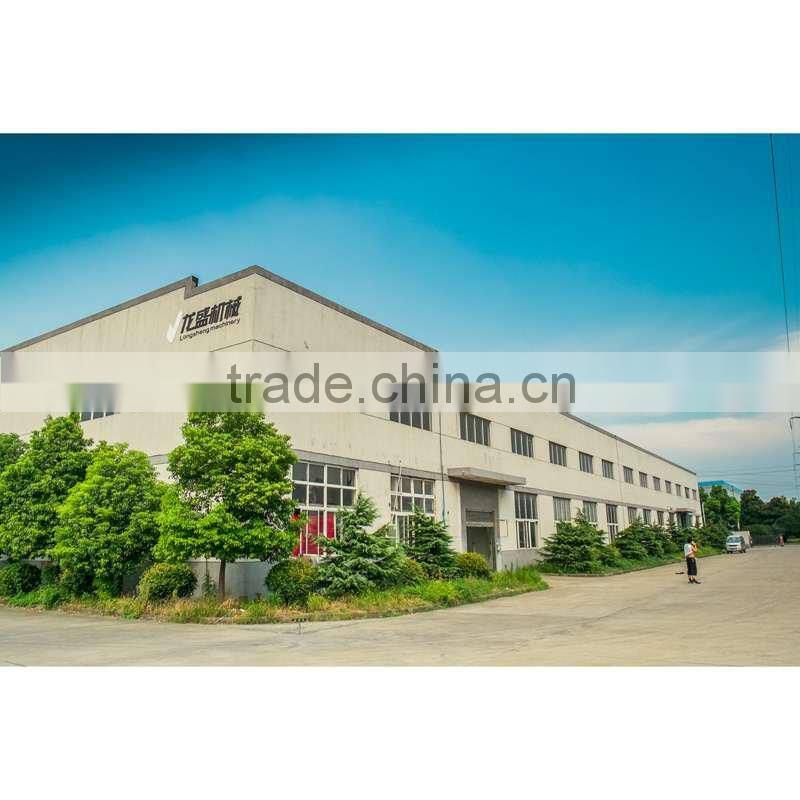

Company Profile
Changzhou Longsheng Machinery Co., Ltd. (Longsheng) is located at Zhonglou Science and Technology Industry Park of Changzhou. We mainly produce and sell plastic injection molding machines, with high technology and reliable quality. Our products are selling well all over the world. We compare price with the same quality, while comparing quality with the same price, and compare service with the same quality and price, so as to improve our management. We always integrate optimized designs with manufacture and good sales service together. We utilize 24 hours networking for sales services. All lifecycle services for products and smile are our characteristics.
Ways to success start from Longsheng. With strong capability, Longsheng is devoted to building a brand name - Longsheng Machinery Series. The clamp force of our machines ranges from 600KN to 16800KN, and shot weight ranges from 63g to 10,000g. Our plastic injection molding machines are widely applied in the areas of automobile, mechanical, chemical, and electrical industries, daily supplies, and toys.
With good quality, professional services and sincere credit, Longsheng can go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefits. We can try to create a prosperous future with our customers as we always do.
