400ton Energy Saving Plastic Injection Molding Machine Price

400ton Energy Saving Plastic Injection Molding Machine Price thumbnail-1
400ton Energy Saving Plastic Injection Molding Machine Price thumbnail-2
400ton Energy Saving Plastic Injection Molding Machine Price thumbnail-3
400ton Energy Saving Plastic Injection Molding Machine Price thumbnail-4
400ton Energy Saving Plastic Injection Molding Machine Price thumbnail-5
400ton Energy Saving Plastic Injection Molding Machine Price thumbnail-6

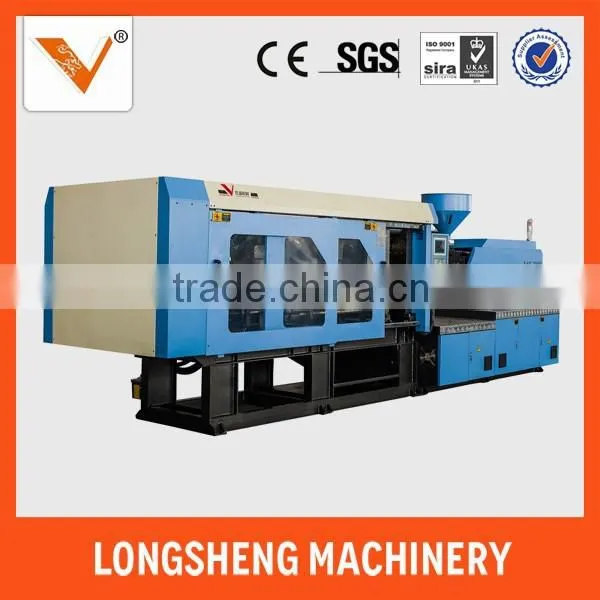

400ton Energy Saving Plastic Injection Molding Machine Price photo-1

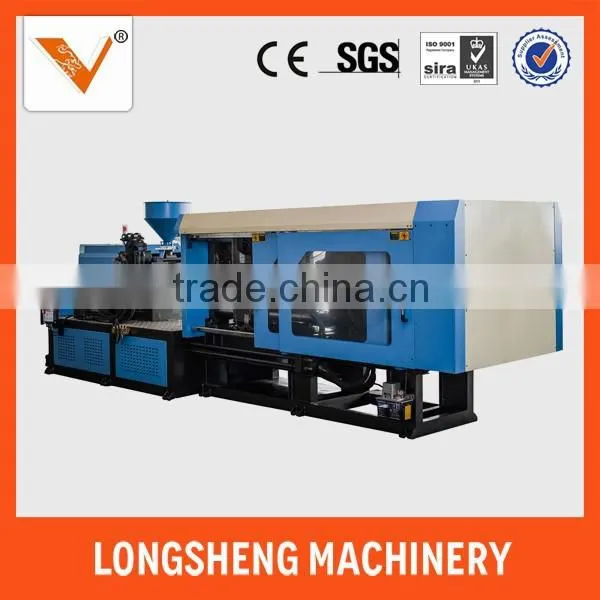

400ton Energy Saving Plastic Injection Molding Machine Price photo-2
400ton Energy Saving Plastic Injection Molding Machine Price photo-3
400ton Energy Saving Plastic Injection Molding Machine Price photo-4
400ton Energy Saving Plastic Injection Molding Machine Price photo-5
400ton Energy Saving Plastic Injection Molding Machine Price photo-6
US$ 48,680 - 48,680 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, thermoplastic
Style:
Horizontal
Contact Supplier Request Quote Chat Now
Changzhou Longsheng Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, thermoplastic
Style Horizontal
Brand Name Longshung
Model Number LSF-418
Place of Origin Jiangsu, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 1260-1646g
Injection Rate 310-405g/s
Clamping Force 4180KN
Opening Stroke 700mm
Power(W) 37KW
Certification ISO9001,CE
After-sales Service Provided Engineers available to service machinery overseas

400ton energy saving plastic injection molding machine price



Plastic injection machines we build clamping force from 680 to 8800KN, shot weight from 83 to 4390gr, which can meet all kinds of plastic products production requirements.



Equiped with servo motor, which energy saving by 60% in average ,with longer working life (low oil temperature),low noise ,high precision (close looped system ).



Welcome contact us for more details and professional services.



Technical specifications;

 INJECTION UNIT



Unit

LSF-418


A

B

C


Screw Diameter

Mm

70

75

80


Screw L/D Ratio

L/D

21.4

20

18.8


Short Size

Cm3

1385

1590

1809


Injection weight

G

1260

1447

1646


Injection Rate

g/s

310

356

405


Plasticizing capacity

g/s

60

65

70


Injection Pressure

Mpa

195

158

139


Screw Speed

Rpm

0-165

 CLAMPING UNIT

Clamp Force

KN

3980


Space Between Tie Bars

mm

720*720


Toggle Stroke

mm

700


Max. Mold Height

mm

760


Min. Mold Height

mm

280


Ejector Stroke

mm

200


Ejector Tonnage

KN

110


Ejector Number

P

13

 OTHERS

Max. pump Pressure

Mpa

16


Pump motor powder

Kw

37


Heater Power

Kw

24.8


Machine Dimension(L*W*H)

M

7.3*2.0*2.2


Oil Tank Capacity

L

850


Machine Weight

T

16



 400ton energy saving plastic injection molding machine price

Advantages;
a)Energy saving; save 30% to 60% compare  to ordinary machine.

b)Easy for operating:parameters settings,system speed adjusting is simple digit function, operate on the control interface like on the ordinary machine.

c)High performance; high response(30ms-130ms),high stability,repetition.

d)Fast response; energy saving,high precision and lower defectives and waste.

e)Spare parts:come from Japan, Germany,Italy etc.

f) High precision: Correct the result to 2 decimal places .

g)Visual  lubricating system:  protective machinery parts without abrase and broken.

We also can according to customer's requirements to make molds.

Application Scope:
All kinds of plastic products,such as auto, mechanic, chemical, electronic,toys, daily products etc.
