High Speed Injection Machines for Disposable Food Container
US$ 12,580 - 39,850
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Injection Blow Molding
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Fast Food Container Making MachineUS$ 12,580 - 39,850MOQ: 1 Set -
Energy Saving Injection Molding MachineNegotiableMOQ: 1 Set
-
Energy Saving Plastic Molding MachineNegotiableMOQ: 1 Set
-
Electrical Parts Molding MachineNegotiableMOQ: 1 Set
-
Industrial Plastic Molding MachineNegotiableMOQ: 1 Set
Condition
New
Type
Injection Blow Molding
Style
Horizontal
Brand Name
LONGSHUN
Model Number
LSF-308
Place of Origin
Jiangsu, China
Plastic Type
Thermosetting
Automatic
Yes
Injection Weight
738-1004g
Injection Rate
177-239g/s
Clamping Force
3080KN
Opening Stroke
590mm
Power(W)
15kw
Certification
ISO9001,SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Fast cycle time,2-5 times fasterthan normalenergy saving,imported spare parts
better price&services

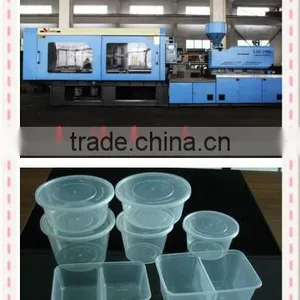

high speed injection machines for disposable food container
Clamping force of our machine from 600 to 32000KN, injection weight from 68g to 40570g, which can meet all kinds of your production requirements.
Our strong technical team always offer timely and professional services which give you technology and production support.
Specification of LSF-308;
INJECTION UNIT | Unit | LSF-308 | |||
A | B | C | |||
Screw Diameter | Mm | 60 | 65 | 70 | |
Screw L/D Ratio | L/D | 21.6 | 20 | 18.6 | |
Short Size | Cm3 | 811 | 952 | 1104 | |
Injection weight | G | 738 | 866 | 1004 | |
Injection Rate | g/s | 177 | 206 | 239 | |
Plasticizing capacity | g/s | 41 | 49 | 57 | |
Injection Pressure | Mpa | 193 | 164 | 142 | |
Screw Speed | Rpm | 0-185 | |||
CLAMPING UNIT | Clamp Force | KN | 3080 | ||
Space Between Tie Bars | mm | 630*630 | |||
Toggle Stroke | mm | 590 | |||
Max. Mold Height | mm | 630 | |||
Min. Mold Height | mm | 200 | |||
Ejector Stroke | mm | 160 | |||
Ejector Tonnage | KN | 62 | |||
Ejector Number | P | 9 | |||
OTHERS | Max. pump Pressure | Mpa | 16 | ||
Pump motor powder | Kw | 30 | |||
Heater Power | Kw | 18 | |||
Machine Dimension(L*W*H) | M | 6.15*1.57*2 | |||
Machine Weight | T | 10.2 | |||
Some of the important features:

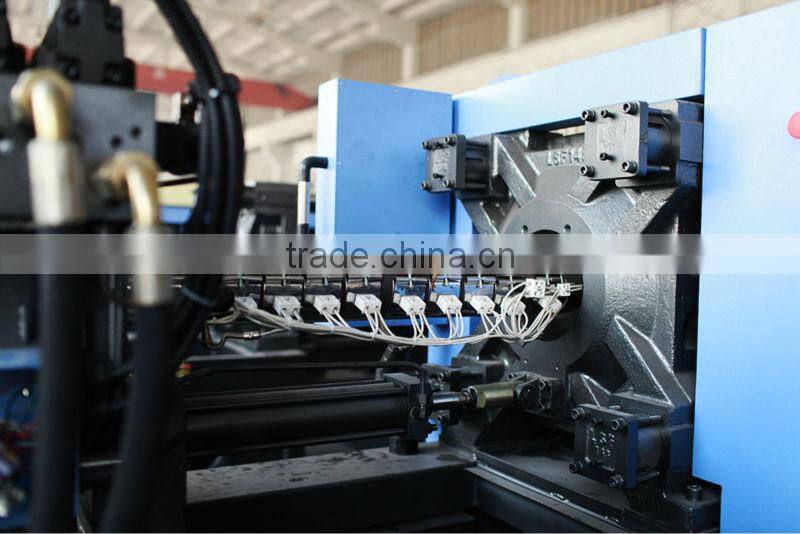

- Clamping system: Faster response, steable and high rigidity
- Injection system: Accurate and flexible, lower rejection rate

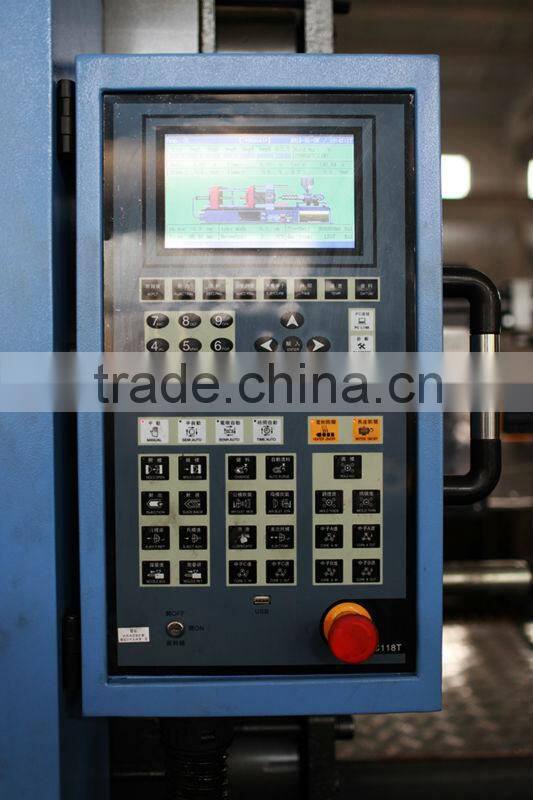

- Control system: Computer and simple operation,molding data memory system
- Power system: Energy saving, high efficient and precise
- Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
- Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
- Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
- Oil treasure: Filter of hydraulic oil,good for pump and valves
- Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
- Delivery time:30-60 days
- Port of dispatch: Shanghai
