Specifications
SCM2 series 5hp centrifugal water pump1.High quality and best price
2.Easy operation & maintenance
3.CE ISO9001 certificate

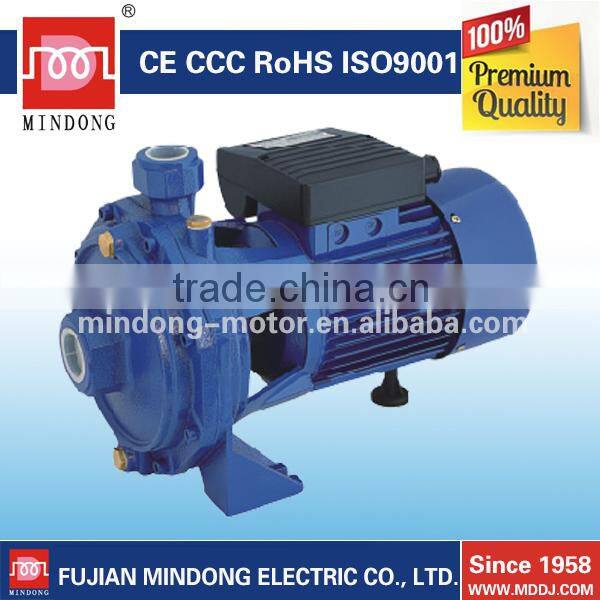

SCM2 series 5hp centrifugal water pump
Applications and installation
The SCM2 series are with two back-to-back impellers centrifugal pumps, are developed for higher head valve than single impeller pumps and have extremely high outputs. They are suitable for pumping clean water and chemically non-aggressive liquid, reliable, economical and simple to use. They can be used for pressure boosting washing systems, cooling and fire-fighting units , Industrial water supplying, horticultural and agricultural irrigation applications, civil and domestic water transfer schemes, boiler, chiller and refrigeration systems.
Pumps should be installed in a covered area, protected
against the weather.
Operating limitations
Max ambient temperature up to 40°C
Max fluid temperature up to 80°C
Max pressure up to 10 bar
Construction features
Pump Body: cast iron
Motor Housing: aluminum/cast iron
Shaft: 45# steel /stainless steel
Impeller: Brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/metalized carbon

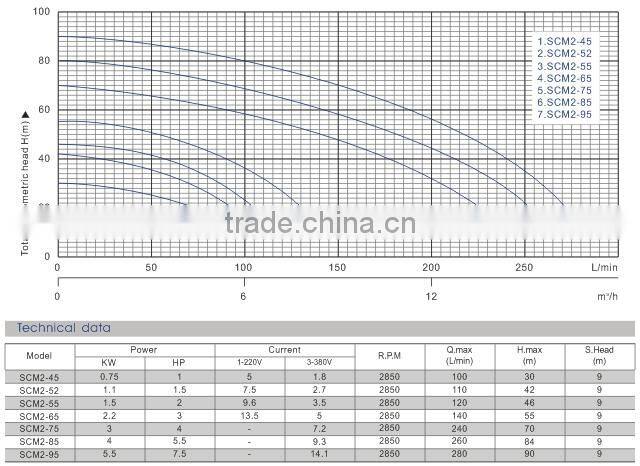

Technical parameters
