Specifications
(CE ISO9001) QB60 0.5 hp cast iron hand water pump1)A+ quality and best price
2)CE ISO9001 certificate
3)100% copper wire

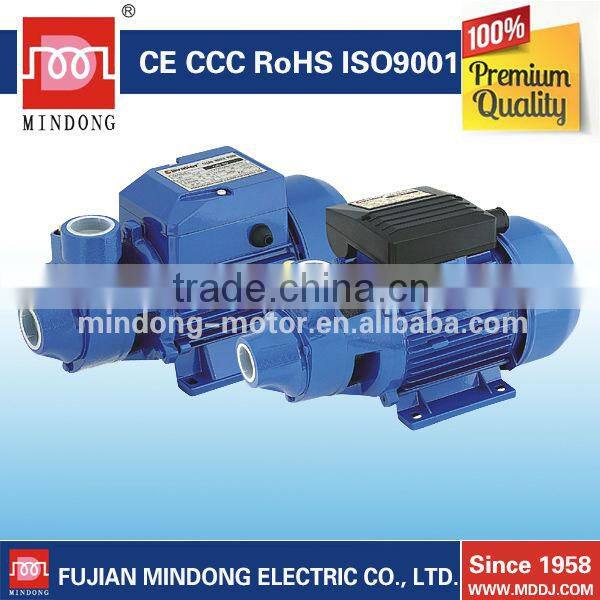

(CE ISO9001) QB60 0.5 hp cast iron hand water pump
Features
The QB60 Small Electric Water Pump are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. They have relatively simple construction and are very economical, reliable and safe.
1) 100% copper wire, and automatic wiring.
2) Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.
3) Demagnetization of stainless steel nuts.
4) Anti-rust treatment castings and electrophoresis.
Application
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:
1. Tank filling
2. Domestic water supply
3. Water transfer
4. Pressure boosting
5. Irrigation
Construction
Electric water pump body: Cast Iron
Impeller: Brass/Aluminum/Plastic
Motor: Electric Motor
Shaft: Stainless Steel/Carbon Steel
Insulation : Class B ( Class F if you required)
Protection : IP44/IP54
Cooling: External Ventilation
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Installation
Electric water pump should be installed in a covered area, protected
against the weather.
Operating limitations
Max ambient temperature up to 40°C
Max fluid temperature up to 80°C
Max pressure up to 10 bar
Technical data
