Specifications
AUJET high pressure russia pump1.easy operation and maintenance
2.extremely reliable
3.good quality and best price

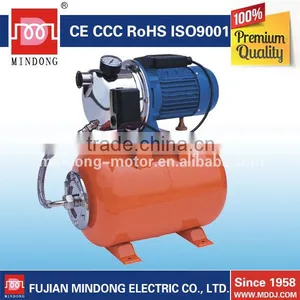

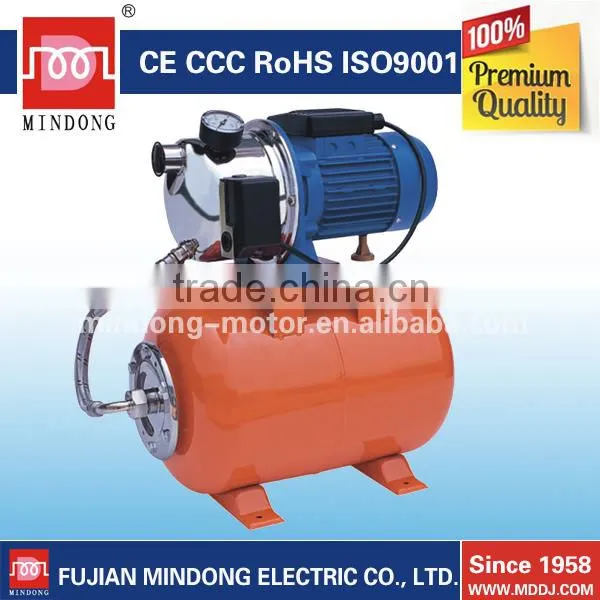

AUJET high pressure water pump,russia pump
Automatic Water Pump
- Auto series of pump is constituted with clean water pump, non-return valve and air-water separation room, which located on the upside of the pump body.
- During operating, it is no need to use foot valve, the only thing that you should do is just leave some water in the pump body.
- After a few minutes' running, the water will be sucked out relying on the pump body itself.
- They are particularly suitable for domestic applications such as supplying water from well, pool etc.
- It is also suitable for water pressure boosting, gardening and automatic water supplying if combined with other appliances.
Construction
Pump-Peripheral
Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum / Brass
Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
With thermal overload protector in single phase motor
Operating Condition
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:10Bar
WARRANTY: 1 Year (according to our general sales conditions)
If you need more information about this series, please feel free to contact us.
model |
power |
ampere |
speed |
q.max |
h. max |
s.head |
pipe dia |
n.w. |
l×w×h |
|
hp |
kw |
1-220v |
||||||||
AUJET60 |
0.5 |
0.37 |
2.5 |
2850 |
45 |
35 |
9 |
25×25 |
12.8 |
375×188×200 |
AUJET80 |
0.75 |
0.55 |
3.6 |
50 |
40 |
13.5 |
375×188×200 |
|||
AUJET100 |
1.0 |
0.75 |
4.8 |
55 |
45 |
14.1 |
375×188×200 |
|||
Operating limitations
Max ambient temperature up to 40°C
Max fluid temperature up to 40°C
Max pressure up to 10 bar
Construction features
Pump Body: S/S
Motor Housing: Aluminum
Shaft: 45# Steel /Stainless Steel
Impeller: Brass/Stainless Steel/PPO optional
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: Continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon
