Low Cost PCB Prototype Machine Prototype PCB

Low Cost PCB Prototype Machine Prototype PCB thumbnail-1
Low Cost PCB Prototype Machine Prototype PCB thumbnail-2
Low Cost PCB Prototype Machine Prototype PCB thumbnail-3
Low Cost PCB Prototype Machine Prototype PCB thumbnail-4
Low Cost PCB Prototype Machine Prototype PCB thumbnail-5
Low Cost PCB Prototype Machine Prototype PCB thumbnail-6
Low Cost PCB Prototype Machine Prototype PCB photo-1
Low Cost PCB Prototype Machine Prototype PCB photo-2
Low Cost PCB Prototype Machine Prototype PCB photo-3
Low Cost PCB Prototype Machine Prototype PCB photo-4
Low Cost PCB Prototype Machine Prototype PCB photo-5
Low Cost PCB Prototype Machine Prototype PCB photo-6
US$ 0.1 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
FCPCB0711
Contact Supplier Request Quote Chat Now
Shenzhen Fulltronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number FCPCB0711
Base Material FR4
Copper Thickness 1OZ
Board Thickness 1.6mm
Min. Hole Size 0.15mm
Min. Line Width 0.1mm
Min. Line Spacing 0.1mm
Surface Finishing HASL, Lead free HASL, ENIG

          Low Cost PCB Prototype Machine Prototype PCB

Your Best Choice for High-frequency PCB Manufacturing & Assembly

Company Information

Our service:

    Design/Layout of Printed Circuit Boards, PCB Fabrication, Component Assembly, Wire Harness Assembly, Box Assembly, Parts Procurement, Component Forming and Electrical Testing.
   We product all kinds of Flex pcb and Rigid flex pcb which are widely used in modern portable electronics and devices.such as Cell pone, key board, LCD module, Disk cable and etc.

1.With 12 years experience in circuit board,Printed Circuit Board field to serve your needs

2.Competitive circuit board, Printed Circuit Board price with high quality

3.Excellent service and prompt delivery

4.Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet ROHS REACH standard

Low Cost PCB Prototype Machine Prototype PCBLow Cost PCB Prototype Machine Prototype PCB
Our Services

 Technical Data:



PCB Item

Manufacture Capacity

Layer Counts

1--22L

Base Material

FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)

Material Thickness(mm)

0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2

Max board size(mm)

1200x400mm

Board Outline Tolerance

±0.15mm

Board Thickness

0.4mm--3.2mm

Thickness Tolerance

±8%

Minimum line/space

0.1mm

Min Annular Ring

0.1mm

SMD Pitch

0.3mm

Holes



Min  Hole Size(mechanical)

0.2mm

Min Hole Size(laser hole)

0.1mm

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating



HASL/LF HAL

2.5um

Immersion Gold

Nickel  3-7um  Au:1-5u''

Surface Finish

HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP

Copper



Copper Weight

0.5--6oz

Color



Soldermask

Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue

Silkscreen

White, Black, Blue,Yellow

Acceptable File Format

Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000

Certificate

ROSH,ISO9001,UL



 Lead Time For Production Orders:



PCB Category

Sample Lead time

Mass production lead time

Single sided PCB

1~3

4~7

Double sided PCB

2~5

7~10

Multilayer PCB

7~8

10~15

PCB and Assembly

8~15

15~30

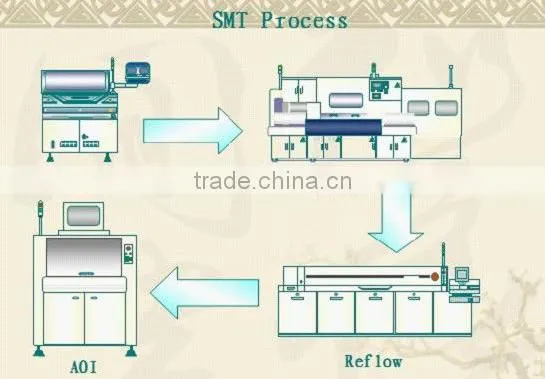

Capability - SMT
  • Lines                   9(5 Yamaha,4KME)
  • Capacity                 52 million placements per month
  • Max Board Size           457*356mm.(18”X14”)
  • Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
  • Speed                   0.15 sec/chip,0.7 sec/QFP

Low Cost PCB Prototype Machine Prototype PCB



Testing

 AOI Testing

  • Checks for solder paste
  • Checks for components down to 0201"
  • Checks for missing components, offset, incorrect parts, polarity

 X-Ray Inspection

X-Ray provides high-resolution inspection of:

  • BGAs
  • Micro BGAs
  • Chip scale packages
  • Bare boards

 In-Circuit Testing

In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems.

  • Power-up Test
  • Advanced Function Test
  • Flash Device Programming
  • Functional testings

 Low Cost PCB Prototype Machine Prototype PCB

Low Cost PCB Prototype Machine Prototype PCB

Product Description
Low Cost PCB Prototype Machine Prototype PCBLow Cost PCB Prototype Machine Prototype PCBLow Cost PCB Prototype Machine Prototype PCB

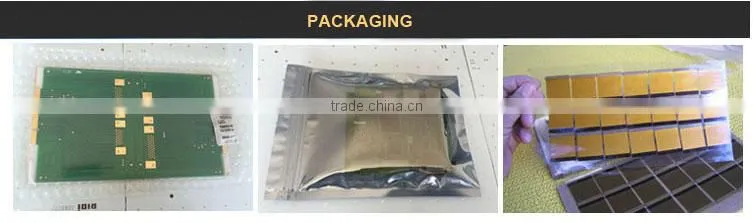

Packaging & Shipping

 Low Cost PCB Prototype Machine Prototype PCBLow Cost PCB Prototype Machine Prototype PCB



FAQ



Are my design files secure when I send them to you?
Your files are held in complete safety and security while Fulltronis  is in possession of them.  Your files are never shared nor will any third parties have access to your design files.



Do you have a formal,documented Quality System? If yes,which model is your Quality System based on?
Yes,our quality system is based on TS 16949,ISO9001



Do you have after-sales product servicing available for your customers?
Yes,for any quality problems Fulltronics will take our responsibility to solve it for you any time. And problems make us grow up.



Quote Requirements for PCB and PCB Assembly:

- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
