Professional Multilayer Pcb Factory

US$ 0.1 - 10 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Number of Layers:

10-Layer

Shenzhen Fulltronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Number of Layers 10-Layer

Base Material FR4

Copper Thickness 1oz

Board Thickness 1.0mm

Min. Hole Size 0.1mm

Min. Line Width 0.1mm

Min. Line Spacing 0.1mm

Surface Finishing Lead free HAL

Specifications

1.faster lead time
2.supply ability:25000/pcs per month
3.UL,SGS,Rohs Certificate

We provide Aluminum based LED Light PCB and LED PCB assembly.

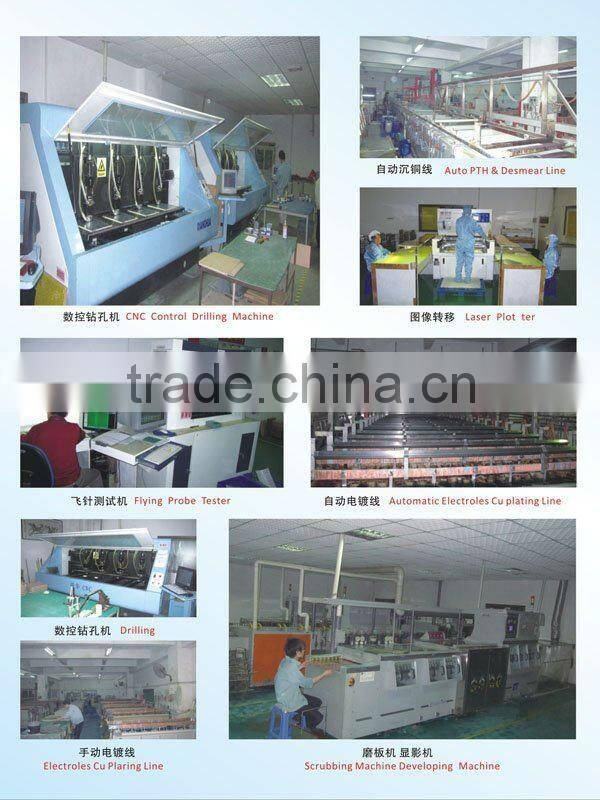

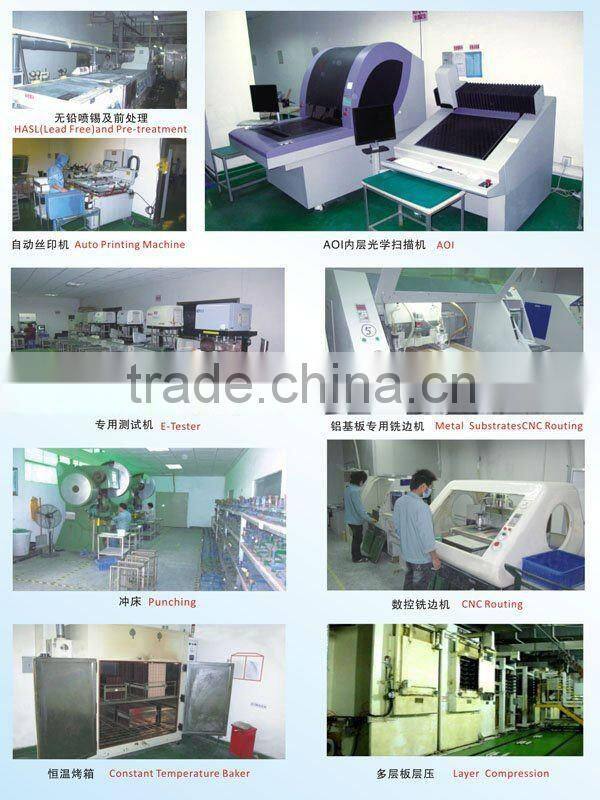

Our production capacity

PCB Item	Manufacture Capacity
Layer Counts	1--20L
Base Material	FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
Material Thickness(mm)	0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
Max board size(mm)	1200x400mm
Board Outline Tolerance	±0.15mm
Board Thickness	0.4mm--3.2mm
Thickness Tolerance	±8%
Minimum line/space	0.1mm
Min Annular Ring	0.1mm
SMD Pitch	0.3mm
Holes
Min Hole Size(mechanical)	0.2mm
Min Hole Size(laser hole)	0.1mm
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
Plating
HASL/LF HAL	2.5um
Immersion Gold	Nickel 3-7um Au:1-5u''
Surface Finish	HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP
Copper
Copper Weight	0.5--6oz
Color
Soldermask	Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Silkscreen	White, Black, Blue,Yellow
Acceptable File Format	Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
Certificate	ROSH,ISO9001,UL
