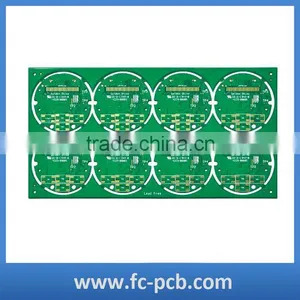

Help CenterFR4 Multilayer Pcb With Rogers Material
Related Products
-
Multi-layer FR4 PCB With Immersion Gold FinishingUS$ 0.5 - 10MOQ: 5 Pieces -
4 Layers OSP Multi-layered PCB, Made of FR-4 MaterialUS$ 0.5 - 10MOQ: 5 Pieces
-
Multi-layer PCB With Impedance ControlledUS$ 0.1 - 10MOQ: 5 Pieces
-
Over 10 Layer Pcb Board for Cell PhoneUS$ 0.1 - 10MOQ: 5 Pieces
-
Multilayer Custom Prototype FR4 PCBUS$ 1 - 2MOQ: 5 Pieces
Specifications
1.Approved:UL, ISO9001,ISO14000 ,RO certification2.Competitive price and fast delivery date
3.Over 10 years experience
Specification as below:
Specifications |
Details |
Layer counting |
2-20 layers |
| Process the area the most largely | 550*1000mm |
| Minimum board thickness |
4layers 0.40mm 6layers 0.80mm 8layers 1.0mm 10layers 1.2mm |
| Minimum line space | 0.10mm |
| Hole and wall copper thickness | 0.025mm |
| Metallization aperture public errand | ± 0.08mm |
| Not metallization aperture public errand | ± 0.025mm |
| Hole location public errand | ± 0.05mm |
| Appearance dimension tolerance | ± 0.10mm |
| Weld the bridge minimumly | 0.10mm |
| Insulating resistance | 1E+12Ω(normality) |
| Hot impact | 288 point 20 degrees centigrade(second) |
| Twist and crooked | ≤0.7% |
| Resist the electirc intensity | >1.3KV/mm |
| Resist the intensity of stripping | 1.4N/mm |
| Hinder the intensity of the solder flux | >6H |
| Fire-restardant | 94V-0 |
| Impedance Controlling | ±5% |
One-stop Service:
1. PCB Copy
2. PCB drawing / design according to your schematic diagram
3. PCB manufacturing
4. Component sourcing
5. PCB Assembly
6. PCBA test
Delivery time:
2 Layers: 24 hours
4 Layers: 48 hours
6 Layers: 60 hours
8 Layers: 72 hours
10 Layers above: 96 hours
Quotation time: Satisfactory
1. For PCB & FPC: quotation within 1 hours if all information are clear
2. For PCBA: quotation within 2 days if all information are clear
If you are interesting one of our items products,pls feel free to contact with us,we will try my best to provide the satisfactory serivice to you.
