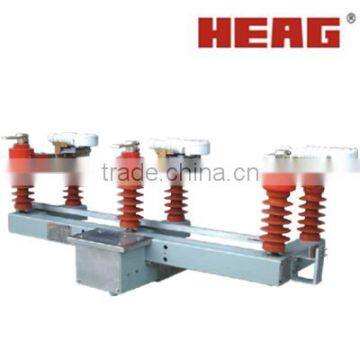

Summary of FKW18-12/24/40.5 Outdoor Load Break Switch HIGH VOLTAGE
FKW18-12/24/40.5 outdoor AC high voltage load break switch is used in rated voltage12/24/40.5kV, rated frequency 50/60Hz outdoor three-phase power system. The load break switch is composed of disconnect blade, arc extinguishing chamber and operation mechanism, simple structure, strong extinguishing arc ability, reliable performance, etc.
NOTE: The model of the 12kV(vertical break) Outdoor HV Load Break Switch is FHY3-12.
Technical Specification of FKW18-12/24/40.5 Outdoor Load Break Switch HIGH VOLTAGE

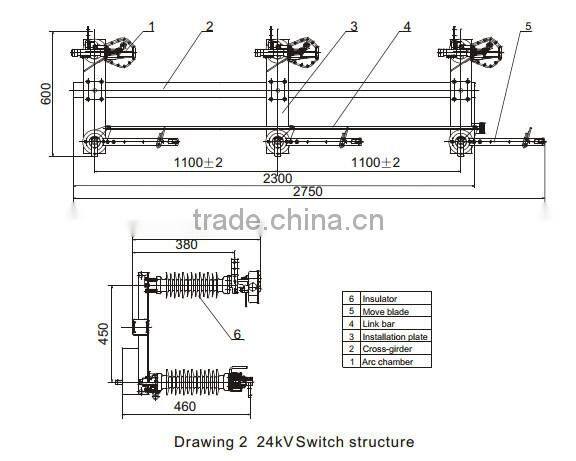

Structure of FKW18-12/24/40.5 Outdoor Load Break Switch HIGH VOLTAGE
Ambient Condition of FKW18-12/24/40.5 Outdoor Load Break Switch HIGH VOLTAGE
1.Altitude: ≤1000m;
2.Ambient temperature: -30℃ ~+40℃ ;
3.Wind speed: ≤34m/s;
4.Pollution degree: ≤IV ;
5.Earthquake intensity: ≤8 degree;
6.Ice thickness: ≤10mm.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn/
