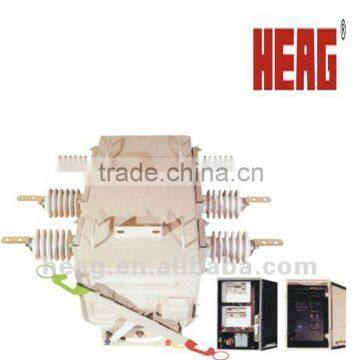

Help CenterOutdoor HV Load Break Switch With SF6 Insulation
Related Products
-
Vacuum Arc Extinguish Outdoor Load Break SwitchNegotiableMOQ: 1 Set -
12KV Outdoor Vacuum Load Break SwitchNegotiableMOQ: 1 Set
-
Outdoor Disconnector/disconnect Switch/isolator SwitchNegotiableMOQ: 1 Set
-
Outdoor Disconnecting Switch High Voltage Three PhaseNegotiableMOQ: 1 Set
-
Outdoor High Voltage Earthing Switch 252kV Earthing Isolated SwitchNegotiableMOQ: 1 Set

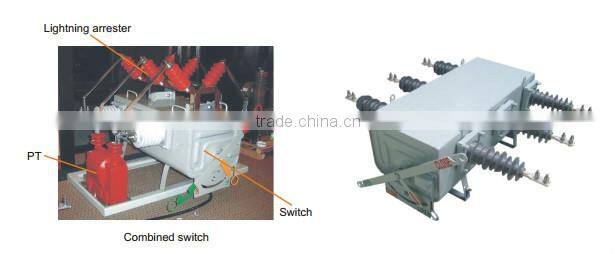

Summary of Outdoor HV Load Break Switch with SF6 insulation:
Outdoor SF6 Insulation Load Break Switch is used in outdoor 12/24kV three phase AC 50/60Hz power system to open and close load current and short circuit current. It accords with the standards of IEC62 271-103 & GB/T3804 : 3.6~40.5kV High voltage switches, IEC60694 & GB/T11022: High voltage switch apparatus and control apparatus.

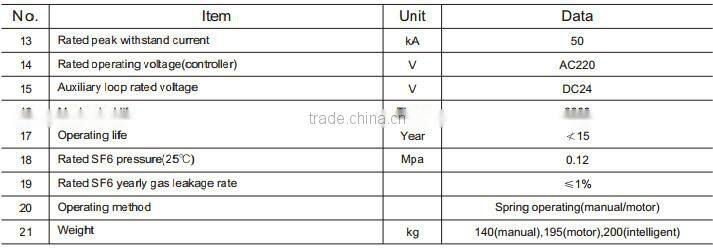

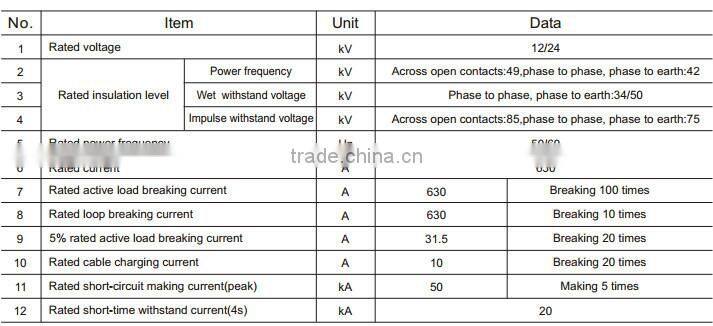

Technical Specification of Outdoor HV Load Break Switch with SF6 insulation:

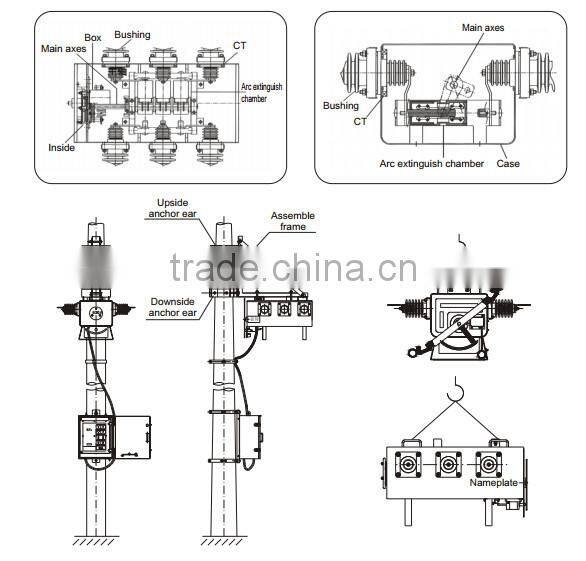

Installation Drawing of Outdoor HV Load Break Switch with SF6 insulation:
Ambient Condition of Outdoor HV Load Break Switch with SF6 insulation:
1. Altitude: ≤1000m;
2. Ambient temperature: -35℃ ~+40℃ ;
3. Relative humidity: daily average ≤90%; monthly average ≤95%;
4. Earthquake intensity: ≤8 degree;
5. Applicable occasions should be free from inflammable, explosives and severe vibration.
Product Feature of Outdoor HV Load Break Switch with SF6 insulation:
1. Stainless steel panel has good antisepsis and seal performance.
2. Light in weight and convenience for transit.
3. Maintenance Free.
4. With anti-explosive device.
5. The switch can be locked automatically when the press is 0.03 to 0.07MPa.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn/
