Summary of GN22-12(C) Three Phase Indoor AC High Voltage Disconnect Switch:
GN22-12(C) disconnect switch is an indoor electric apparatus of rated voltage 12kV three-phase AC 50/60Hz. it is used to break, make and transfer lines when the HV apparatus is under situations with voltage and no-load. It is manufactured according to IEC62271-102.

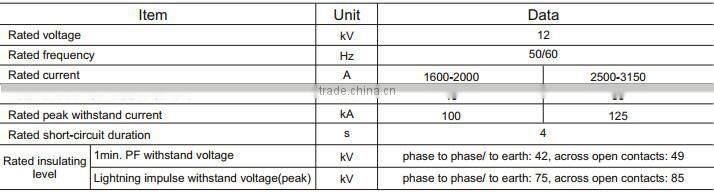

Technical Specification of GN22-12(C) Three Phase Indoor AC High Voltage Disconnect Switch:

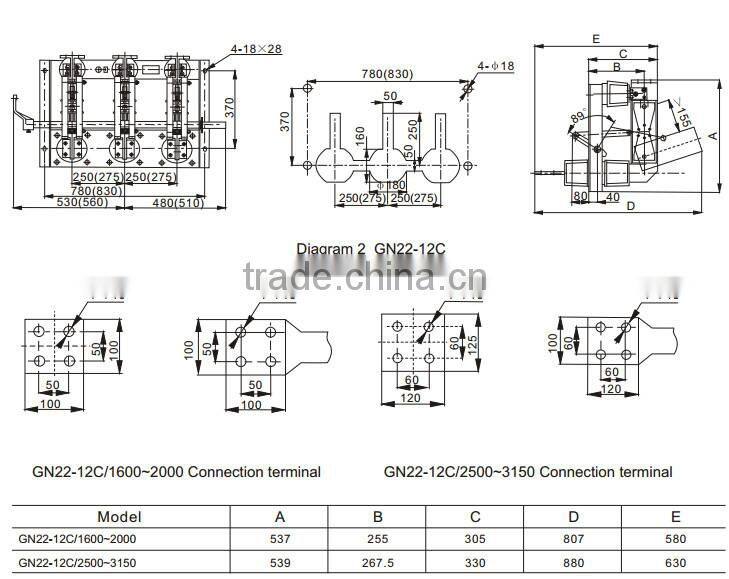

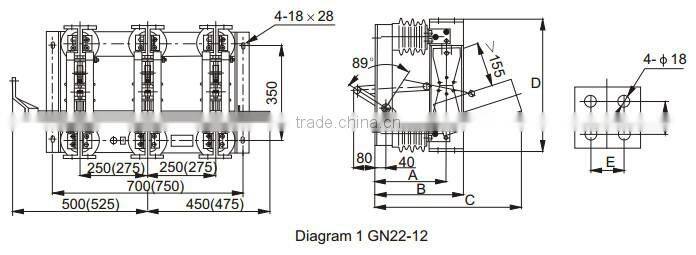

Structure of GN22-12(C) Three Phase Indoor AC High Voltage Disconnect Switch:
Ambient Condition of GN22-12(C) Three Phase Indoor AC High Voltage Disconnect Switch:
1. Altitude: ≤1000m;
2. Ambient temperature: -30℃ ~+40℃ ;
3. Relative humidity: daily average ≤95%, monthly average ≤90%;
4. Earthquake intensity: ≤8degree;
5. Applicable occasions should free from inflammables, explosives, corrosives and severe vibration.
Product Feature of GN22-12(C) Three Phase Indoor AC High Voltage Disconnect Switch:
1. Scientific and reliable design.
2. Large current capacity.
3. Easy maintenance and operation.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
