Summary of GN19-12(C)Indoor AC High Voltage Disconnect Switch high voltage disconnecting switch :
GN19-12(C) indoor HV disconnect switch applies t o power system of rated voltage below 12kV, AC 50/60Hz. It is equipped with CS6-1 manual-operating mechanism and is used to break and make circuit under no-load. There are additional pollution type, high-altitude type and power indicating type. It is made as per IEC62271-102.

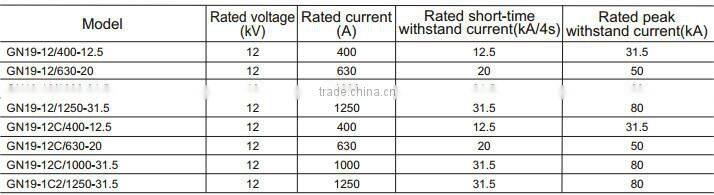

Technical Specification of GN19-12(C)Indoor AC High Voltage Disconnect Switch high voltage disconnecting switch :

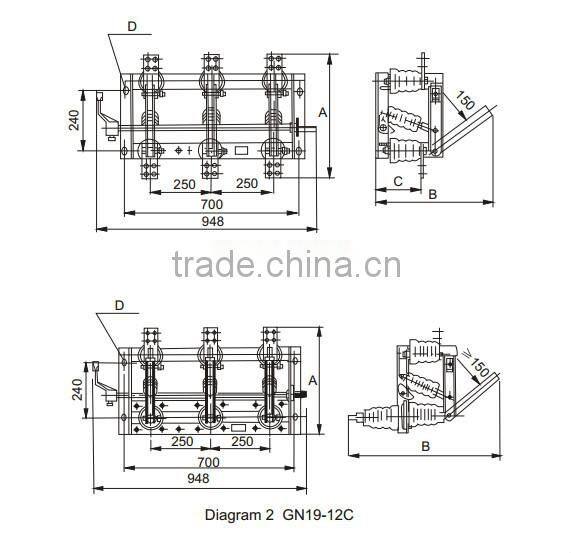

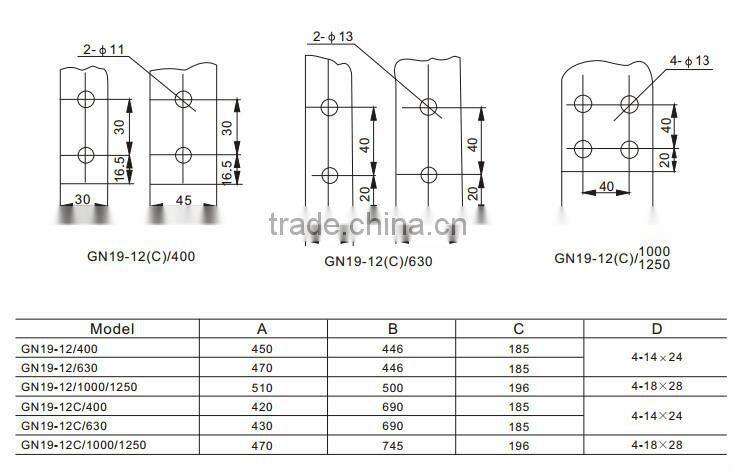

Structure of GN19-12(C)Indoor AC High Voltage Disconnect Switch high voltage disconnecting switch :
Ambient Condition of GN19-12(C)Indoor AC High Voltage Disconnect Switch high voltage disconnecting switch :
1. Altitude: ≤1000m;
2. Ambient temperature: -25℃ ~+40℃ ;
3. Relative humidity: daily average ≤95%, monthly average ≤90%;
4. Earthquake intensity: ≤8degree;
5. Applicable occasions should free from inflammables, explosives, corrosives and severe vibration.
Product Feature of GN19-12(C)Indoor AC High Voltage Disconnect Switch high voltage disconnecting switch :
1. Scientific design and simple structure.
2. Large clearance between gaps.
3. Small operating power and steady performance.
