Summary of VHY1-24/2500-31.5 High Voltage Vacuum Circuit Breaker with KEMA report :
VHY1-12/24 Model indoor AC HV vacuum circuit breaker is a type of holistic sealed HV switchgear with small volume and compact structure. It applies to power system of rated voltage 12/24kV, three-phase AC 50/60Hz, and used to control and protect electric apparatus and circuit with frequent operations. This product conforms to IEC62271-100 & GB1984, JB3855 and DL403.
Technical Specification of VHY1-24/2500-31.5 High Voltage Vacuum Circuit Breaker with KEMA report :

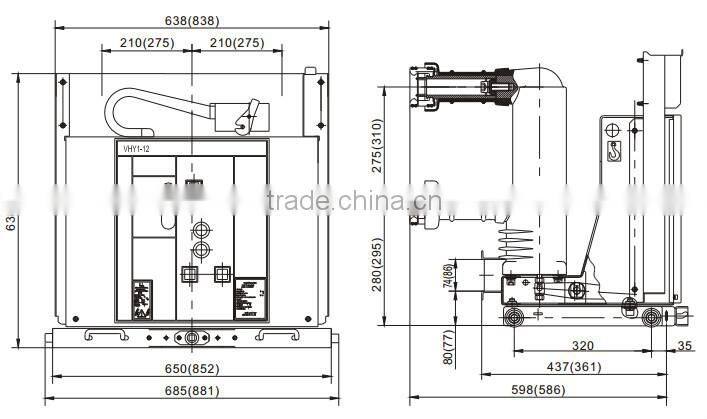

Structure of VHY1-24/2500-31.5 High Voltage Vacuum Circuit Breaker with KEMA report :
Ambient Condition of VHY1-24/2500-31.5 High Voltage Vacuum Circuit Breaker with KEMA report :
1. Altitude: ≤1000m;
2. Ambient temperature: -25℃ ~+40℃ ;
3. Relative humidity: daily average ≤95% , monthly average ≤90% ;
4. Earthquake intensity: ≤8 degree;
5. Applicable occasions should free from inflammables, explosives, corrosives
and severe vibration.
Product Feature of VHY1-24/2500-31.5 High Voltage Vacuum Circuit Breaker with KEMA report :
1. Holistic structure;
2. Sealed arc-extinguishing chamber;
3. High quality vacuum arc-extinguishing;
4. Sound mechanical feature;
5. Various mounting methods.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn/
