Summary of Power Distribution Equipment American Type Compact Substation:
The YB compact substation is an important unit of the power supply network. It has the features of controlling, protecting, power transforming and power distributing for high voltage. The high voltage load break switch and fuse are put into the transformer oil. So it has two kind structures that are: single and sharing substation with transformer. There are the oil thermometer, pressure gauge, pressure release valve, oil drain valve monitors in the fully sealing oil box. The way of power supply is ring main unit mode, terminal mode and bi-power mode. For the fact of the domestic power supply network, our company produces the insert type dry fuse, if the fuse fused, it won't affect to the transformer oil. There are three kind of YB substation: standard model, strengthen model, integrated model .

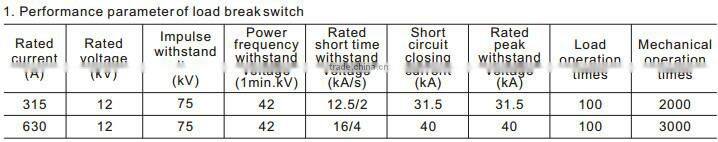

Technical Specification of Power Distribution Equipment American Type Compact Substation:

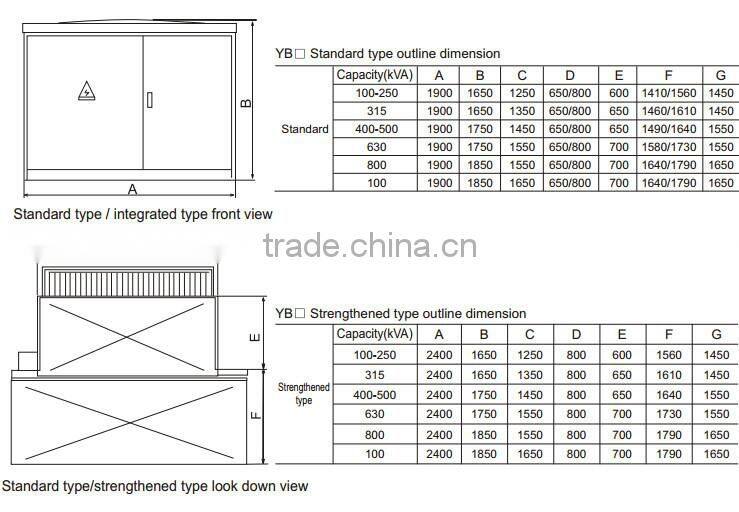

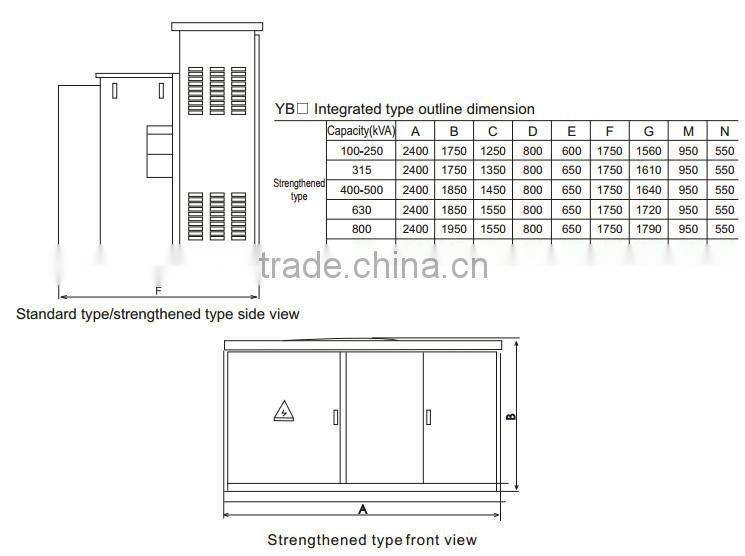

Structure of Power Distribution Equipment American Type Compact Substation:
Ambient Condition of Power Distribution Equipment American Type Compact Substation:
1. Ambient temperature: -10℃ ~+40℃ ;
2. Attitude: ≤1000m;
3. Wind speed: 34m/s(Wind pressure: ≤700Pa);
4. Humidity: Daily average ≤95%, monthly average ≤90%;
5. Shake-proof: Level acceleration ≤0.4m/s, and the vertical acceleration ≤0.15m/s;
6. Gradient of installation place: ≤3 degree;
7. Occasions without fiercely shake and corrosiveness, as well as without flaming and explosive matter;
8. If you have other requirement not on the list, warmly welcome to contact us.
Product Feature of Power Distribution Equipment American Type Compact Substation:
1. Compact structure, the volume is the same as 1/3~1/5 of European substation;
2. Fully sealing and fully insulated, needn't insulated gap;
3. The wiring management can be used in the ring main unit and terminal;
4. Low wastage, noise and temperature rise;
5. It has the strong capability of anti over load, short circuit and impulse;
6. Conforms to the various requirements of low voltage outgoing;
7. There are two kinds of cable, 200A elbow plug and 600A "T" the stationary electric cable, which can match to the fully sealing device;
8. Zinc oxides arresters, 200A electric with load insert which can be used as disconnecting switch.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn/
Switchgear panels; switchgear; high voltage switchgear; 33kv switchgear; 11kv switchgear; schneider switchgear; low voltage switchgear; medium voltage switchgear; gas insulated switchgear; electric switchgear; electrical switchgear; 11kv switchgear panel; medium voltage switchgear manufacturers; switchgear cabinet; 22kv switchgear; Box Transformer Substation; switch cabinet; switchboard; high voltage switch cabinet; high tension switch cabinet; Mvnex; GGD ; GCK ; Blokset; switch cubicle; air insulated high-voltage switchgear; compartmented switchgear panel; Ring main Unit; cubicle switchgear; compartmented switchgear; metalclad switchgear; metal-enclosed switchgear
gas-filled switchgear; insulation-enclosed switchgear;
