2014 the Most Popular FM1100B Handbag Machine

2014 the Most Popular FM1100B Handbag Machine thumbnail-1
2014 the Most Popular FM1100B Handbag Machine photo-1
Negotiable MOQ: 11 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Shopping Bag
Contact Supplier Request Quote Chat Now
Wenzhou Fengming Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Bag Forming Machine
Bag Type Shopping Bag
Material Paper
Computerized Yes
Place of Origin Zhejiang, China
Brand Name fengming
Model Number FM-1100B
Dimension(L*W*H) 9000*1830*1650mm
Certification ISO,CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

this machine can make handbags with different speciffcations and is an idea equipment of manufacturing high-standard handbag


Product Description

Name:FM-1100B

2014 the most popular FM1100B handbag machine2014 the most popular FM1100B handbag machine

The characteristics of the product

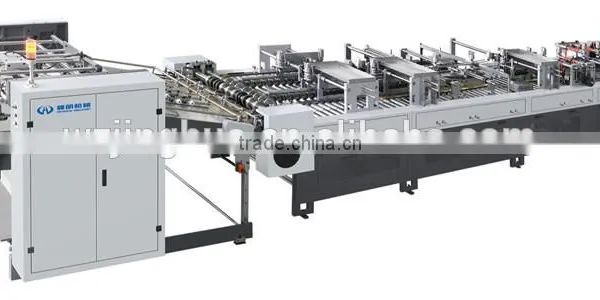

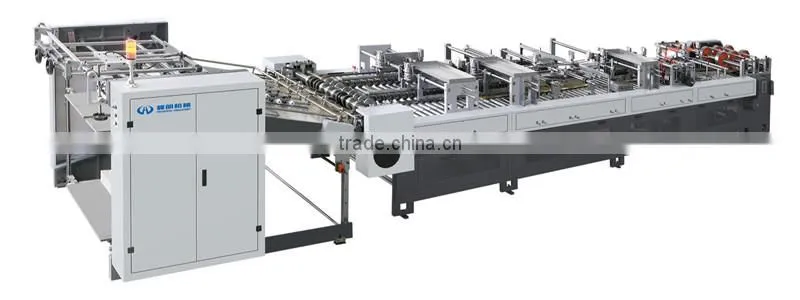

FM-1100B handbag forming machine feeds die-cut single-sheet paper to make bag tube. It features continuous function of automatic paper delivery (by feeder), line aligning (by front guide and side guide),gluing (by water-soluble glue box), automatictube folding, impressing (by steel rollers) and bag tube output.. It adopts water –soluble glue which has no harm to the environment.(Equipped with hot-melt spray gun system can be optional.) The touch screen operation and adjustable speed function provide high precision and rapid speed to this machine. This machine can make handbags with different specifications and is an ideal equipment of manufacturing high-standard handbag.

Specifications

This machine can make handbags with different specifications and is an ideal equipment of manufacturing high-standard handbag.

The applicable Paper materials:

brown paper, copperplate paper, white-paperboard etc (including laminating paper)

Technology information:

Maximum paper feeding specification: 1040*600mm
Minimum paper feeding specification: 480*380mm
Paper weight range with unit : 100-350 g(copperplate 128-300g)
Maximum speed:100pcs/min
 Glue type: water-soluble cold glue
Organ height: mm: 55-180
 Total power: 10kw
Overall dimensions:9000×1900×1600
Total weight: 5.5t

Working procedure:

Big side folding process

1,paper feeding

2,Gluing

3,Tube Formation

4,Gluing

5,Bag Output

Small  side folding process

1,paper feeding

2,Tube Formation

3,Gluing

4,Gluing

5,Bag Output
