Summary of KYN18-12 Removable AC Metal-clad Switchgear:
KYN18-12 removable AC metal-clad switchgear is a new product designed and developed by HEAG group based on advanced foreign design and technology. Its outstanding advantages as follows:
1. The enclosure is completely made of aluminium-zinc plated steel sheet which processed by CNC machine, then assembled with bolts. T he structure is free from corrosives and deformation.
2. LV compartment and HV compartment are completely separated by metal sheet. It prevents from spreading to other parts due to IP4X of protection degree.
3. Effective anti-fault interlock assure that each operation step is according to specified procedure.
4. Integrated and reliable performance assure that it is free from maintenance.
5. The handcart is flexible to draw out and change.
6. Earthing switch with rapid open-close operation function has such capacity on short circuit current.
7. Secondary wiring will be buried in metal channel to prevent damages from internal failures.

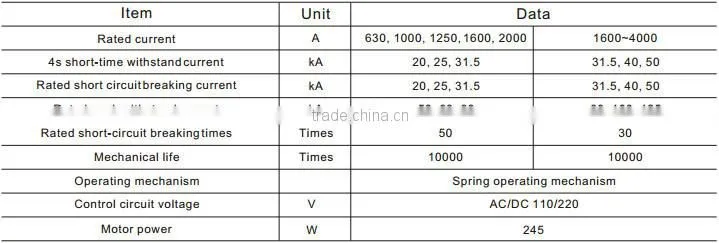

Technical Specification of KYN18-12 Removable AC Metal-clad Switchgear:

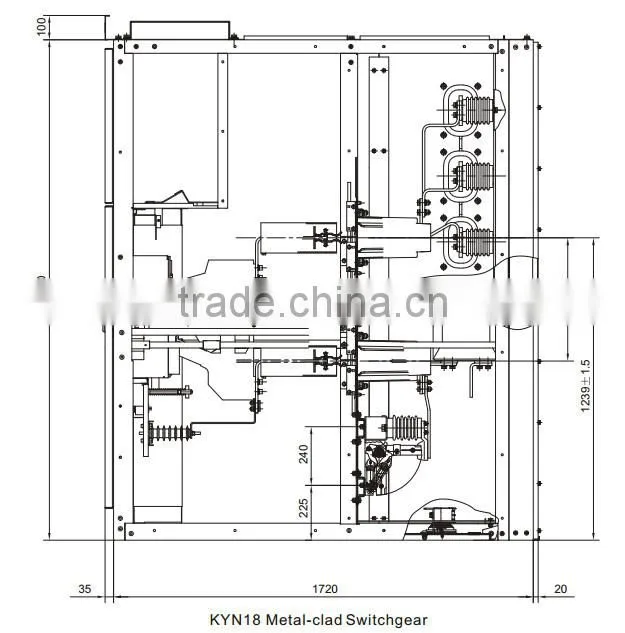

Structure of KYN18-12 Removable AC Metal-clad Switchgear:
Ambient Condition of KYN18-12 Removable AC Metal-clad Switchgear:
1. Ambient temperature: -10℃ ~+40℃ ;
2. Altitude: ≤1000m;
3. Relative humidity: monthly average ≤90%, daily average ≤95%;
4. Applicable occasions should be free from inflammable, explosives and severe vibration.
Product Feature of KYN18-12 Removable AC Metal-clad Switchgear:
1. The enclosure is made of aluminium-zinc plated steel sheet or cold rolled iron sheet after pro cessed by CNC machine and multi-bending, so guarantee advantages of high precision and strong corrosion preventions.
2. The complete panel is divided into four separate compartments, those are busbar compartments, handcart compartment, cable compartments and relay compartment. It is equipped with five protection lock device.
3. There is a exhaust channel spreads to the top in every compartment. The coping will open automatically to release pressure and guarantee the security of operator.
4. There is a valve mechanism among handcart compartment, busbar compartment and cable compartment. The valve closes automatically when the handcart is dr awn out, then cover the main static contact to guarantee the security of maintenance man.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
