Help CenterVSP5-12 11kV Outdoor Vacuum Load Break Switch
Related Products
-
GW7-252 Outdoor HV Disconnect Switch 252kvNegotiableMOQ: 1 Set -
GW4-12/40.5 Outdoor HV Disconnect Switch 11KV 33KV Breaker DisconnectorNegotiableMOQ: 1 Set
-
Isolators Disconnect Switch Disconnector Switch Disconnecting 11kv 33kvNegotiableMOQ: 1 Set
-
Outdoor Railway Disconnect Switch HV SWITCH DISCONNECTORNegotiableMOQ: 1 Set
-
GW Outdoor Disconnecting Switch High Voltage Three Phase OutdoorNegotiableMOQ: 1 Set
Summary of VSP5-12 11kV Outdoor Vacuum Load Break Switch :
VSP5 Outdo or SF6 Insulation Vacuum Load Break Switch is a new product with Toshiba technical support, It's used in outdoor 12/24kV three phase AC 50/60HZ power system to open and close load current and short circuit current. IEC62271-103 & GB/T3804: 3.6kV~40.5kV High voltage AC load break switch, IEC60694 & GB/T11022: High voltage switch apparatus and control apparatus. It is applicable for protect and control distribution system in substation, industrial and especially for village electric net and frequent operation site.

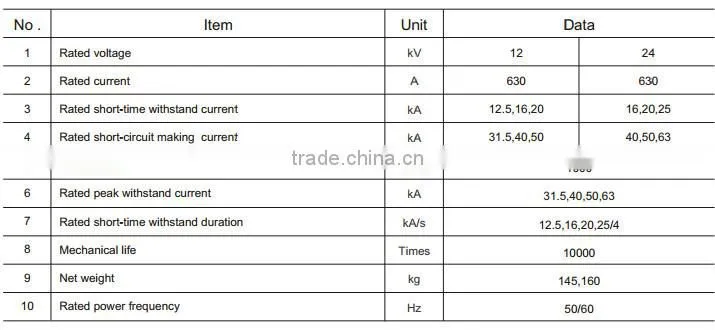

Technical Specification of VSP5-12 11kV Outdoor Vacuum Load Break Switch :

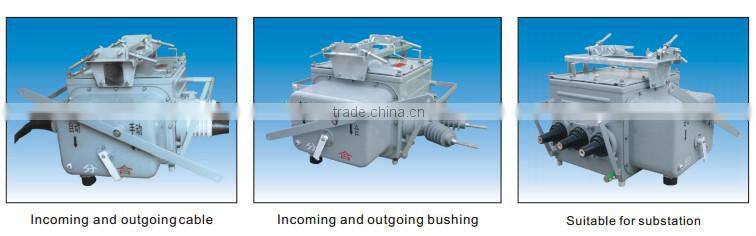

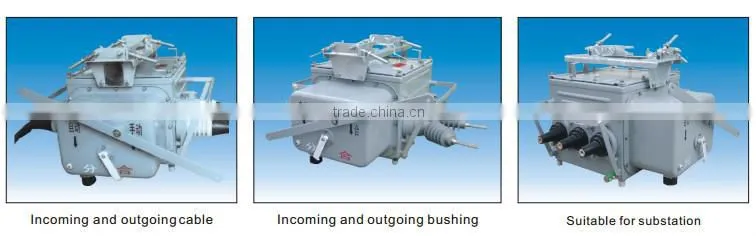

Structure of VSP5-12 11kV Outdoor Vacuum Load Break Switch :
1. High breaking capacity: vacuum arc extinguish, SF6 insulation, high arc extinguishing and insulation performance.
2. High security performance: arc-extinguishing, oil-free insulation medium ; the anti -explosion device on the top of the box to avoid internal fault.
3. Free maintenance: the main circuit and operating mechanism is sealed inside the box.
4. An automatic interface can matched with current transformer which is different ratio.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn/
