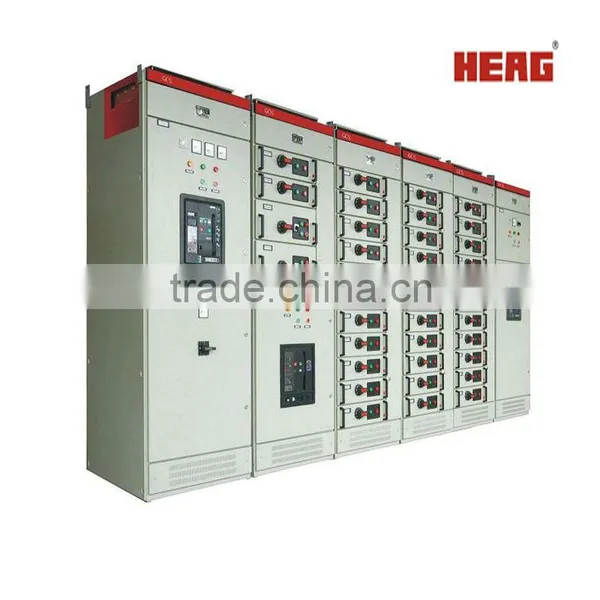

Summary of LV Withdrawable Switchgear switchboard:
LV withdrawable switchgear is suitable for distribution system of power plant, high building and some lines, such as petroleum chemistry and industry, metallurgy, textile, etc. It is applicable for distribution, motor centralized control, reactive power compensation in power generation and power supply system of three phase AC 50/60Hz, rated voltage 380V(400V,600V), rated current 4000A and below, where require high automation and interfaces with computers.

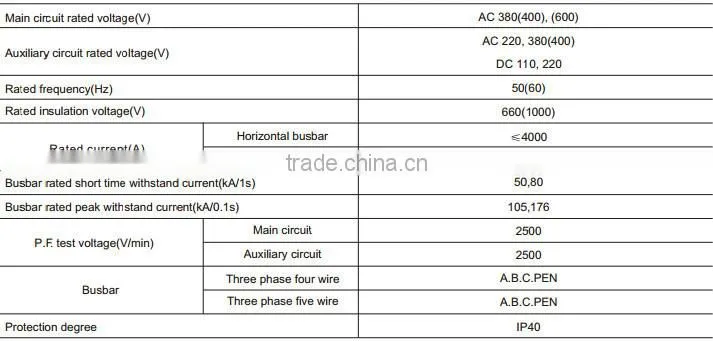

Technical Specification of LV Withdrawable Switchgear switchboard:

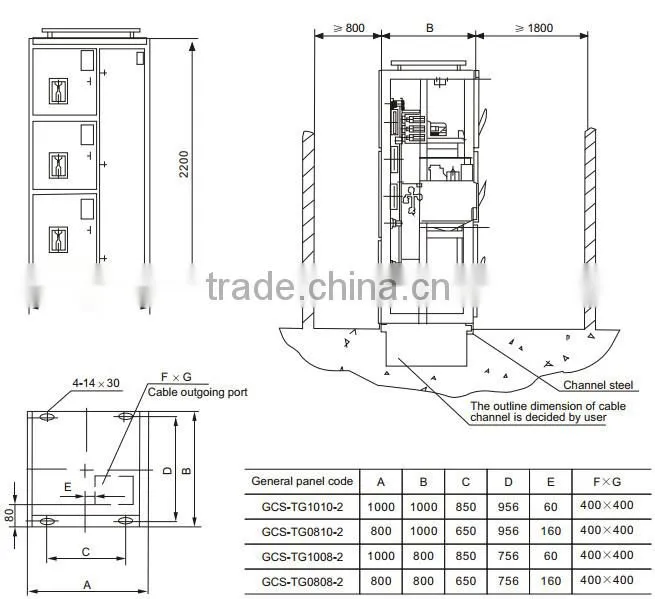

Structure of LV Withdrawable Switchgear switchboard:
Ambient Condition of LV Withdrawable Switchgear switchboard:
1. Ambient temperature: -5℃ ~+40℃ , daily average ≤+35. It should reduce capacity according to real condition when out of stipulation;
2. Indoor, Altitude ≤2000m;
3. The change of ambient relative temperature will cause a little moist by accident;
4. The slant between device installation position and vertical section ≤5%;
5. Occasions without flammable and explosive matter, without corrosive chemical and frequent severe vibration.
Product Feature of LV Withdrawable Switchgear switchboard:
1. Main frame adopts 8MF open type steel which bended by 2.5mm cold rolled steel sheet. There are modulus with 20mm, 100mm, 9.2 mm installation hole located on three side, high strength for modeling installation conveniently.
2. The drawer divided into 1/2 unit,1 unit, 2 unit, 3 unit, loop rated current is 400A and below.
3. Flexible assembly, compact structure, strong versatility, perfect secure performance, convenient assembly.
4. Improve thermal capacity of patchboard, reduce additional temperature rise of plug in, cable terminal, isolating board due to temperature rise of transition element.
5. It can not influence others unit when any unit appears to fault between function unit and isolating unit, limit the emergency in a small scope.
6. Busbar horizontal is good for dynamic and thermal stable performance.
7. The maximum 22 loops for MCC single panel, take consideration of requirement of auto motor door group about large unit capacity power plant, petroleum chemistry system line.
8. It finish connection of device and outer cable in cable compartment, upper and down inlet and outlet is available. The zero sequence current transformer is installed in the cable isolating compartment.
9. It can limit short circuit current depend on limited reactor in the same power distribution system, to stabilize busbar voltage, reduce short circuit intensity requirement.
Certifications:
Cooperation Projects:

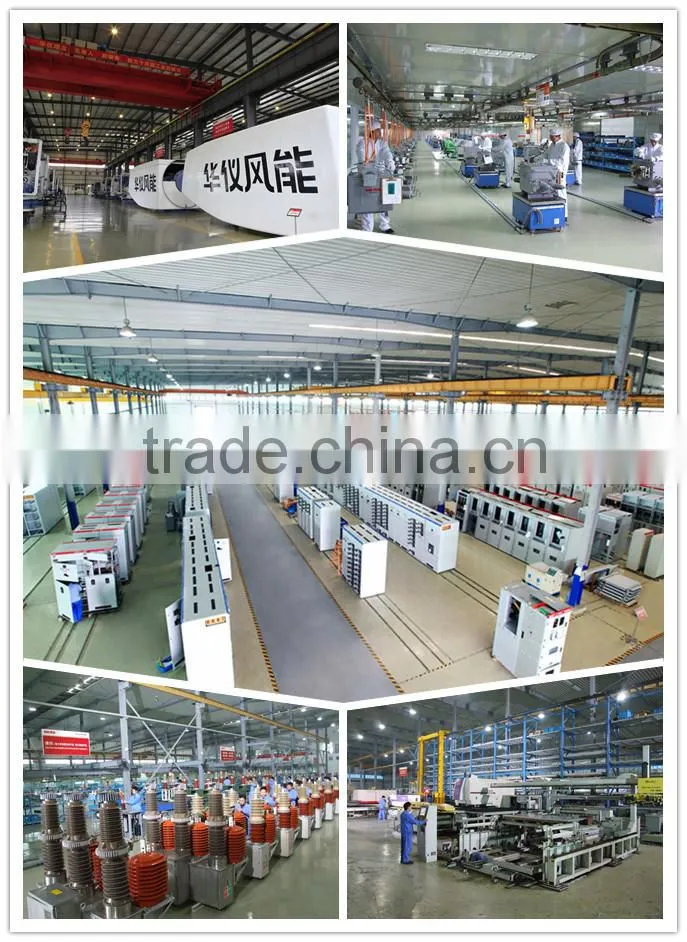

Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
