Summary of high voltage switchgear high tension switch cabinet:
KYN28-12 removable AC metal-clad switchgear (short for panel as below) is a new product, designed and developed by HEAG Group, based on the introduction of advanced foreign design and manufacturing technology. It will be a substitute for old fashioned metal-enclosed switchgear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. It can be arranged for single busbar, single busbar sectionlizing system or double busbar. It accords with IEC62271-200 AC Metal Enclosed Switch and Control Equipment above 1kV and below 52kV IEC60694 Standard Common Clauses for HV Switchgear, DIN. VDE AC Switchgear at Rated Voltage Above 1kV, GB3906 3~35kV AC Metal Enclosed Switchgear and so on. It has perfect and reliable prevention function against misoperation.

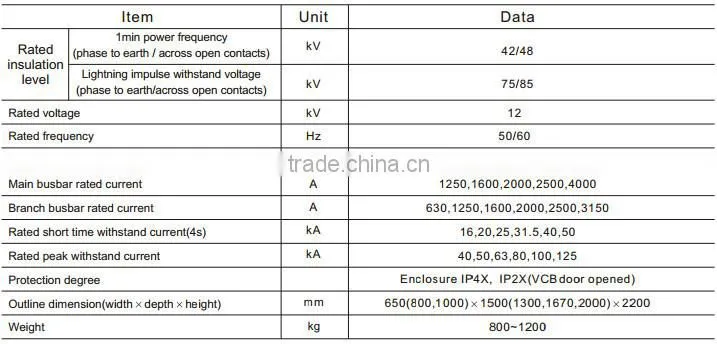

Technical Specification of high voltage switchgear high tension switch cabinet:

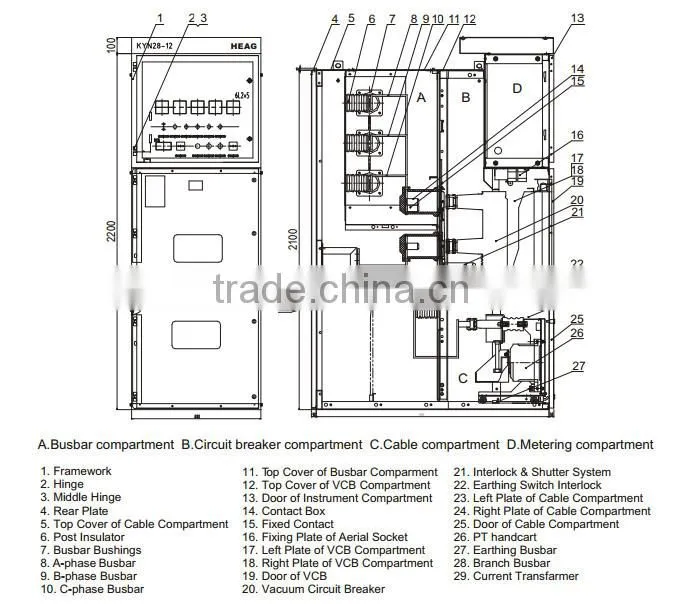

Structure of high voltage switchgear high tension switch cabinet:
Ambient Condition of high voltage switchgear high tension switch cabinet:
1. Ambient temperature: -10℃ ~40℃ ; daily average ≤35℃ ;
2. Altitude: ≤1000m;
3. Relative humidity: daily average ≤95%, monthly average ≤90%;
4. Earthquake intensity: ≤8 degree;
5. Applicable occasions should be free from inflammables, explosives, corrosives and severe vibration.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
