Specifications

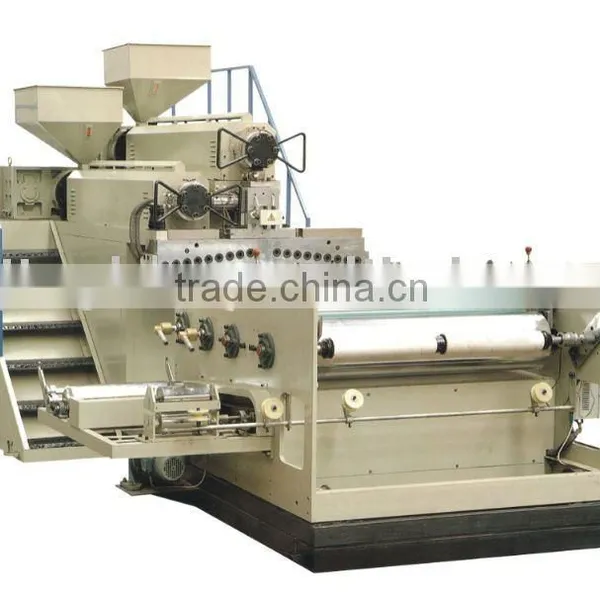

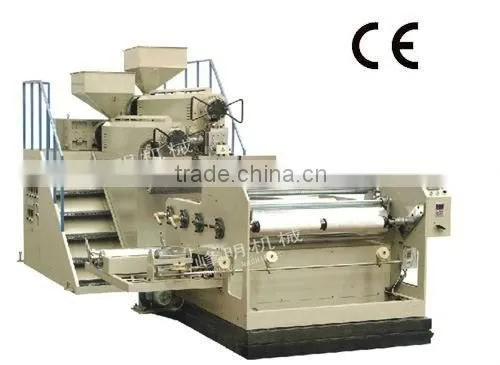

The stretch film making machine is used to manufacture the single/double-side self-sticky stretch wrapping film.
USE
This stretch film making machine uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping or palletized goods. It is a good substitute for hot shrinking packaging film during transportation.
Main Technical Variables:
Model |
FM-1000 (double layer) |
FM-1000 (single-layer) |
Diameter of screw |
Φ65X2 |
Φ75 |
L/D ratio of screw (L/D) |
28:1 |
28:1 |
Width of die head (mm) |
1250 |
1250 |
Width of finished products (mm) |
1000(500X2) |
1000(500x2) |
Thickness of finished products (mm) |
0.015-0.05 |
0.015-0.05 |
Structure of film layers |
A/B |
--- |
Max. Output (kg/h) |
100 |
100 |
Linear speed of machinery (m/min) |
50-100 |
50-100 |
Total power (kw) |
140 |
120 |
Overall dimensions (LXWXH) (m) |
7.5x4.5x3.2 |
7.5x4x3.2 |
Weight (T) (About) |
5.5T |
4.5T |
