Help CenterGW 33kv Isolators Disconnect Switch High Voltage Disconnector
Related Products
-
GW4-12/40.5 China Switch Disconnector Pole Mounted Switch DisconnectorNegotiableMOQ: 10 Sets -
GW7-252 Outdoor High Voltage Disconnect Switch Isolating SwitchNegotiableMOQ: 1 Set
-
GW49 Three Poles Mounted Outdoor High Voltage DisconnectorNegotiableMOQ: 1 Set
-
JW6-252 Outdoor Grounding Switch High Voltage Earthing SwitchNegotiableMOQ: 1 Set
-
FZW39-27.5 Railway Exclusive Load Break SwitchNegotiableMOQ: 1 Set
Main Products
Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categories:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipment and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipment and LV electrical Apparatus.
Product Details
>> Summary :

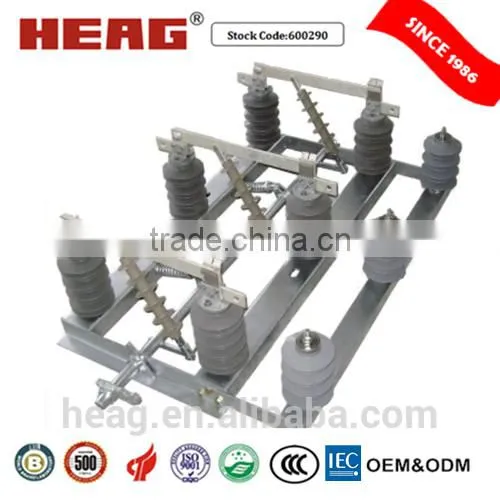

GW-12/24/40.5-630-20(25) outdoor AC high voltage dis connect switch (disconnect switch for short) is used to open and close circuit with voltage but no-load 50/60Hz, 12/24/40.5kV power system, The anti-pollution type can be used in the serious pollution area. Three pole linkage, good synchronous performance. It accords with standards of IEC62271-103: High voltage switches. NOTE: The model of the 24kV Outdoor HV Disconnect Switch is GWHY2-24.

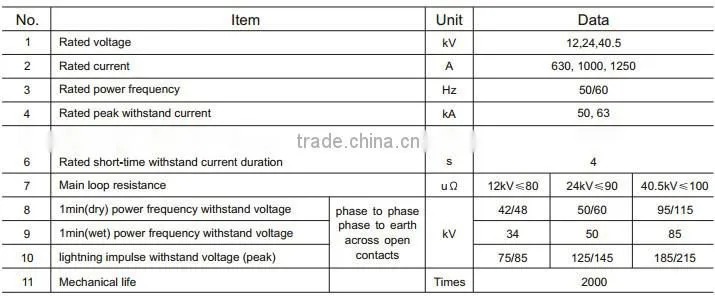

>> Technical Specification :

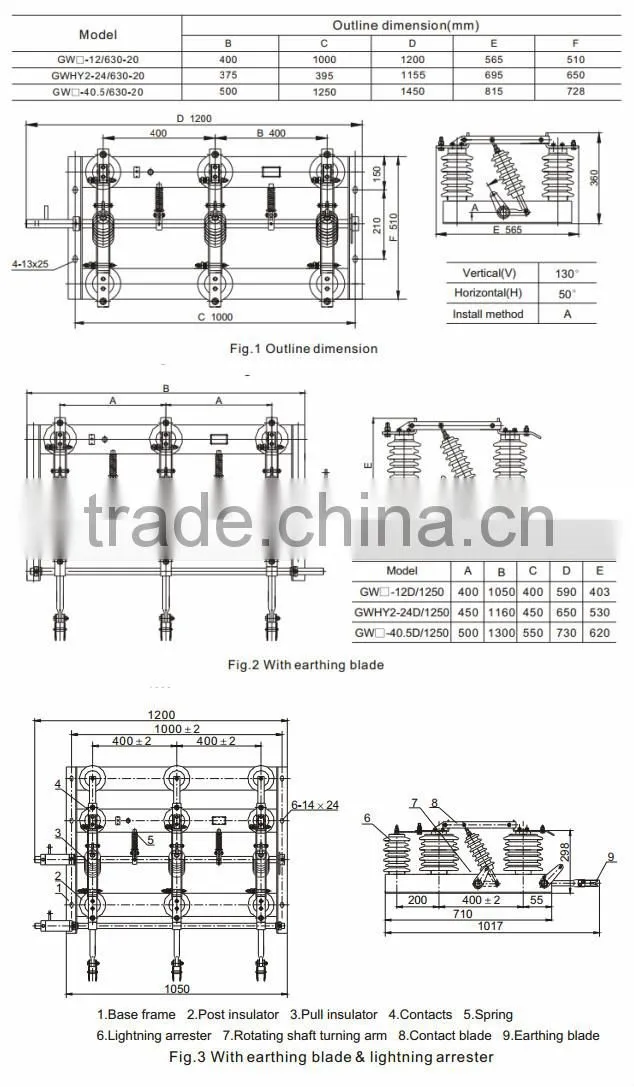

>> Structure :
Related Items
VHY1-12/24 Circuit Breaker JN15-12/24 Earthing Switch FZRN21-12D Combination Apparatus
Why Choose Us
>> Certifications :
>> Package :
Company View
Contact Us
We will be always at your service!
>> FAQ :
1: What certifications do you get?
A: We have ISO, CE, KEMA, SGS, etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
↓
