Product Details
>> Summary :

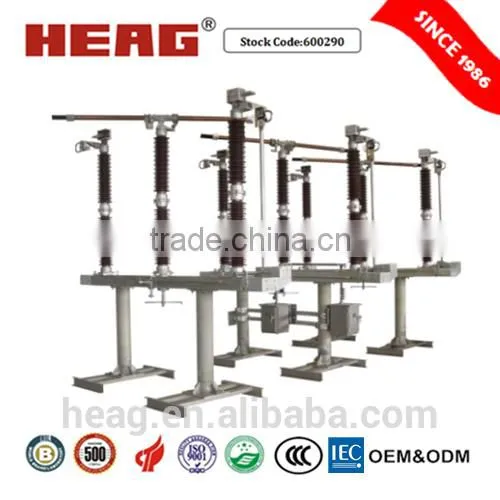

GW7-252 outdoor AC high voltage disconnect switch is used to open and close high voltage circuit in rated voltage 252kV, 50/60Hz power system. It can be used with motor operating mechanism and manual operating mechanism. It accords with the standards of IEC 62271-102 and GB1985-20 04: AC high voltage disconnect switch and earthing switch.

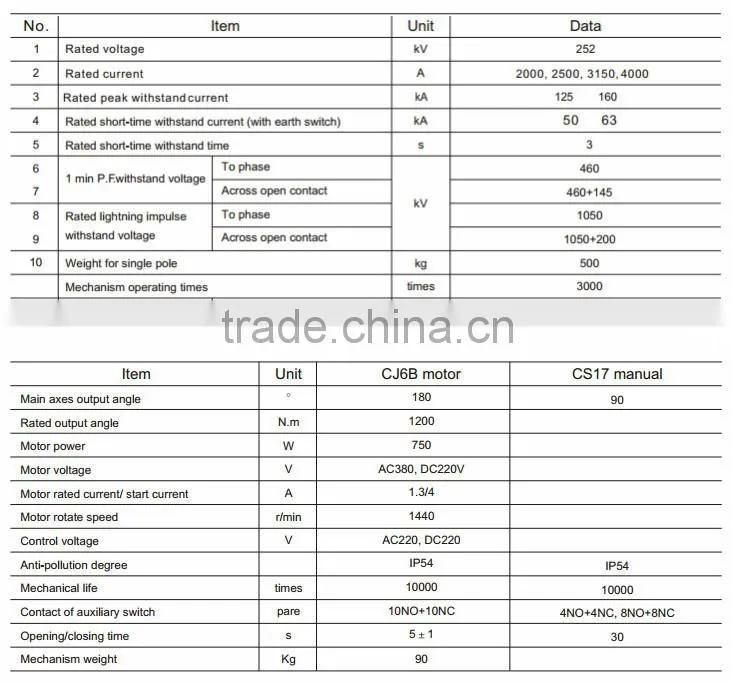

>> Technical Specification :

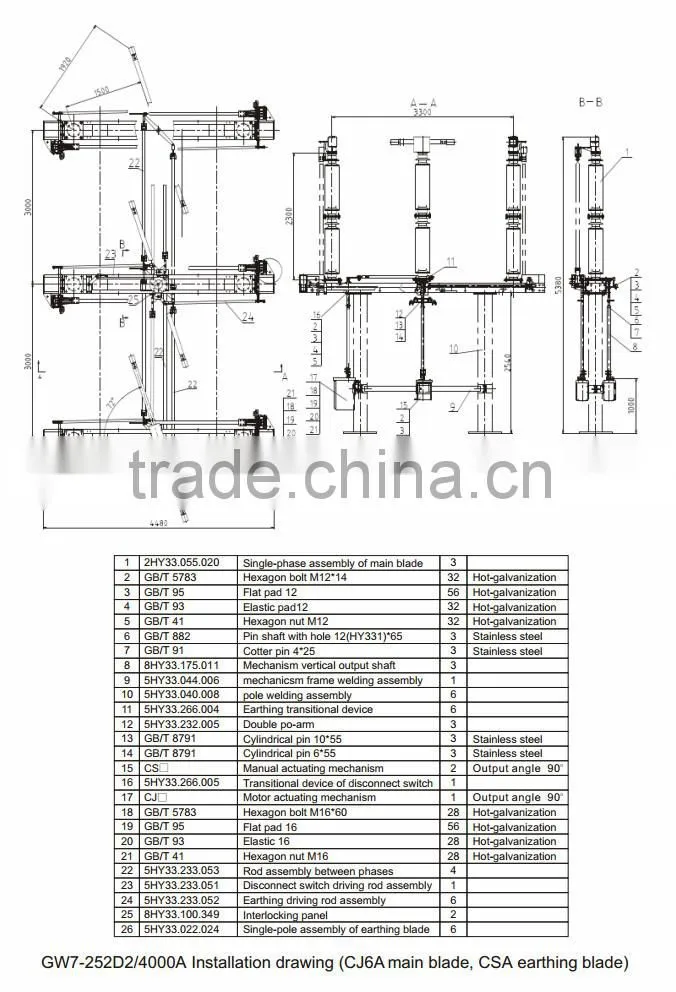

>> Structure :
Related Items
GW4-72.5/126/145 Circuit Breaker JN15-12/24 Earthing Switch VS1-12 Circuit Breaker
Why Choose Us
>> Certifications :
>> Package :
Company View
Contact Us
We will be always at your service!
>> FAQ :
1: What certifications do you get?
A: We have ISO, CE, KEMA, SGS, etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
↓
