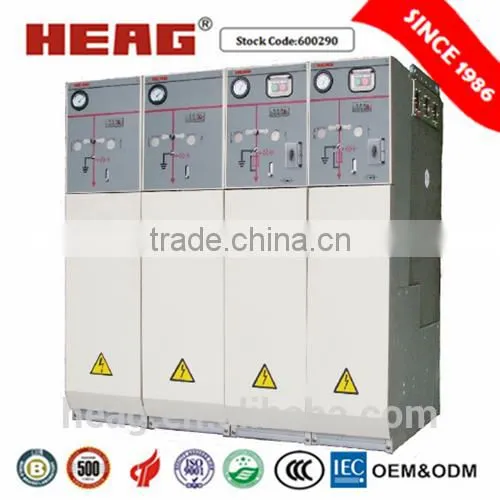

XGN74-12 Box-type Fixed AC Metal-clad Switchgear (SF6 Inflatable Ring Main Unit )

    Main Products

Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categaries:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipments and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipments and LV electrical Apparatus.

    Product Details

 >> Summary :

XGN(W)74-12 Series metal enclosed compact switchgear unit module. Each unit has its independent function. It can be extendable to each side, and supplied in different configurations suitable for actually requirement.
XGN(W)74-12 Series metal enclosed compact switchgear is completely SF6 system with a stainless steel tank containing Main Switch(LBS or VCB), Earthing Switch, Fuse insulation and busbar. A sealed steel tank with constant atmospheric conditions ensures a high level of reliability as well as personnel safety and a virtually maintenance-free system.
XGN(W)74-12 Series metal enclosed compact switchgear, Main Switch is SF6 Load Break Switch(VCB). The switchgear have different merits due to its clear configurations, flexibility, safety interlock, extendable. The switchgear suitable for rated frequency 50/60Hz, rated voltage 12kV distribution network. It is designed for use in the following applications: compact secondary substations, small industries, wind power plants, hotel, shopping centers, office buildings, business centers, lighting mining applications, airport, hospitals, tunnels and underground railway etc. IEC62271-201 & IEC62271-304.

 >> Technical Specification :

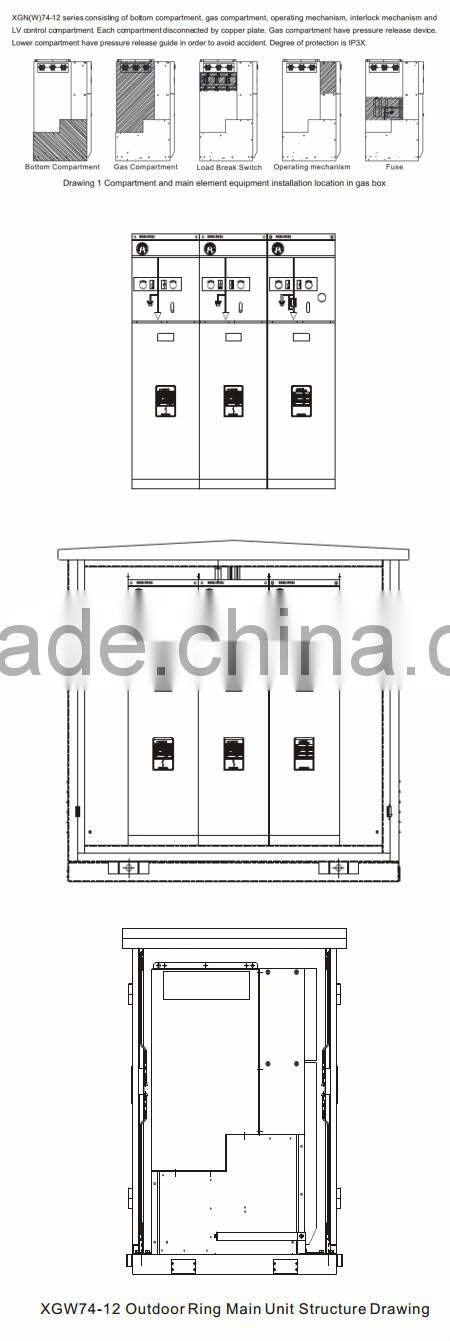

 >> Structure :
