Product Details
>> Summary :
KYH1-24 removable AC metal-clad switchgear(short for panel as below) is a new product, designed and developed by HEAG Group, based on the introduction of advanced foreign design and manufacturing technology. The panel applies to 13.8~24kV, 3phase AC 50Hz or 60Hz network for receiving and distributing power energy and also for control, monitor and protection. It can be arranged for single busbar, single busbar sectionalizing system. It accords to IEC62271-200 AC Metal Enclosed Switch and Control Equipment above 1kV and below 52kV IEC60694 Standard Common Clauses for HV Switchgear, GB3906 3~35kV AC Met al Enclosed Switchgear, DL 404 Order Specification for Indoor AC HV Switchgear, DIN. VDE0670 AC Switchgear at Rated Voltage Over 1kV and so on. It has perfect and reliable prevention function against false operation.

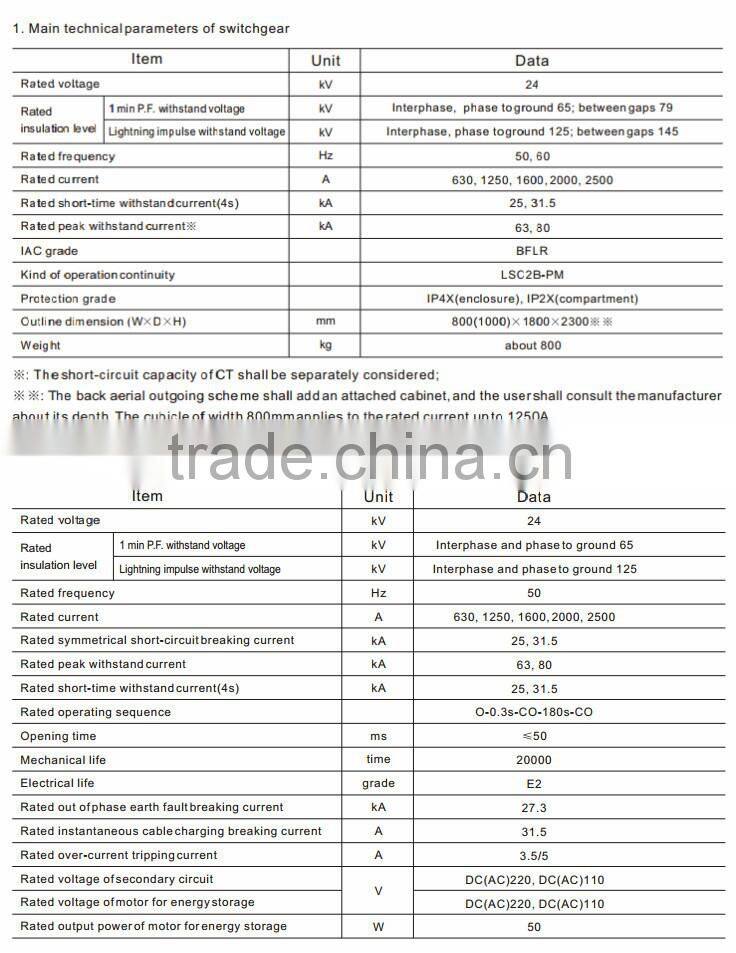

>> Technical Specification :

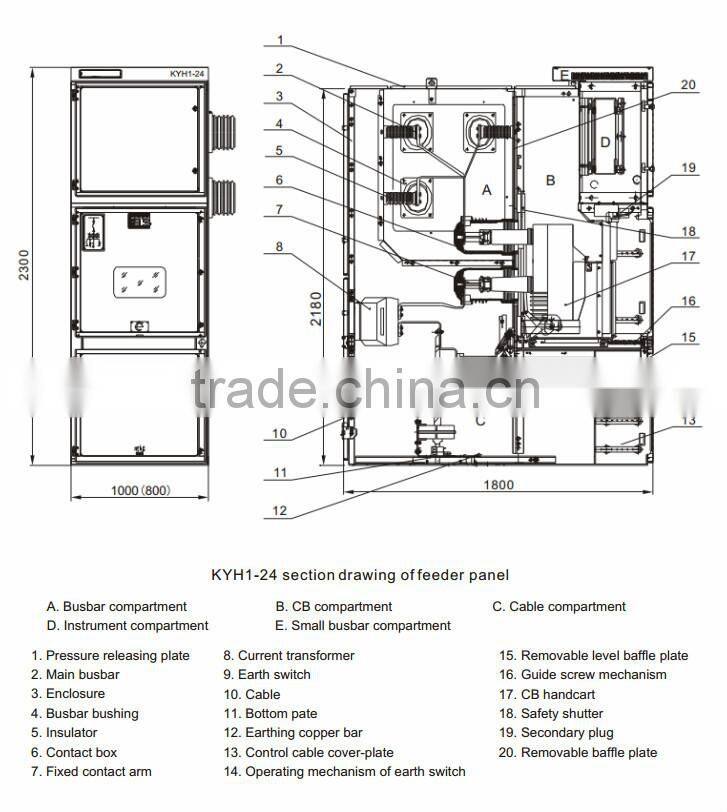

>> Structure :
Related Items
KYH1-24 Switchgear KYN61-40.5 Switchgear MNS Low Voltage Switchgear
Why Choose Us
>> Certifications :
>> Package :
Company View
Contact Us
We will be always at your service!
>> FAQ :
1: What certifications do you get?
A: We have ISO, CE, KEMA, SGS, etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
↓
