Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Factory Coaxial Cable Commscope Rg6 Cable Rg6 Tri Shield Coaxial Cable
Factory Coaxial Cable Commscope Rg6 Cable Rg6 Tri Shield Coaxial Cable
US$ 0.05 - 0.5
MOQ: 15000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
QS
Model Number:
RG6
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Coaxial Cable Commscope Rg6 Cable Rg6 Belden Rg6 Coaxial CableUS$ 0.05 - 0.5MOQ: 15000 Meters -
Factory Coaxial Cable Commscope Rg6 to Hdmi CableUS$ 0.05 - 0.5MOQ: 15000 Meters
-
Factory Coaxial Cable Commscope Rg6 Jelly Filled Rg6 Coaxial CableUS$ 0.05 - 0.5MOQ: 15000 Meters
-
75 Ohm Coaxial Cable RG6 Low db Loss Cable and Wire for CATV Satellite System CE RoHS UL Approved Vga CableUS$ 0.05 - 0.5MOQ: 15000 Meters
-
Linan Factory Coaxial Cable Electric Cable Electrical CableUS$ 0.05 - 0.5MOQ: 15000 Meters
Place of Origin
Zhejiang, China
Brand Name
QS
Model Number
RG6
Type
Coaxial
Number of Conductors
1
Specifications
Rg59 Coaxial Cable with power cable1.CE ISO RoHS SGS
2.Quick Delivery
3.Stable High Quality
4.Competitive Price
10years experience of serious of cable manufacturing. High quality, competitive price, welcome for your inquiry.
| FOB Price: | US $0.05 - 0.5/ Meter |
|---|---|
| Min.Order Quantity: | 15 Kilometer/Kilometers |
| Supply Ability: | 9000 Kilometer/Kilometers per Month |
| Port: | Ningbo/Shanghai |
| Payment Terms: | L/C,T/T |
Quick Details
| Place of Origin: | Zhejiang China (Mainland) |
Brand Name: | QS |
Model Number: | Rg59 Coaxial Cable with power cable |
| Type: | Coaxial |
Number of Conductors: | 1 |
Conductor Material: | BC/CCS/TC/CCA |
| Insulation Material: | Foam PE/Solid PE |
Shield: | Al Foil/Bonded Al Foil |
Shielding coverage: | 30%-95% |
| Braiding: | Al-Mg/CCA/BC/TC |
Jacket: | PVC |
Color: | any color |
| Packaging: | 100 meters per roll, or as per the customer requests |
Application: | CATV,CCTV,Communication |
Certification: | UL/CE/RoHS |
Packaging & Delivery
| Packaging Detail: | 100M/COILS,200M/COIL,100M/GIFT BOX,500FT/WOODEN DRUM,1000FT/WOODEN DRUM AS YOUR REQUIRPMENT OR WITH WOODEN PLATE |
| Delivery Detail: | 10-15days after receiving deposit |
Specifications
Coaxial Cable with power cable 1.CE ISO RoHS SGS 2.Quick Delivery 3.Stable High Quality 4.Competitive Price
Product Description

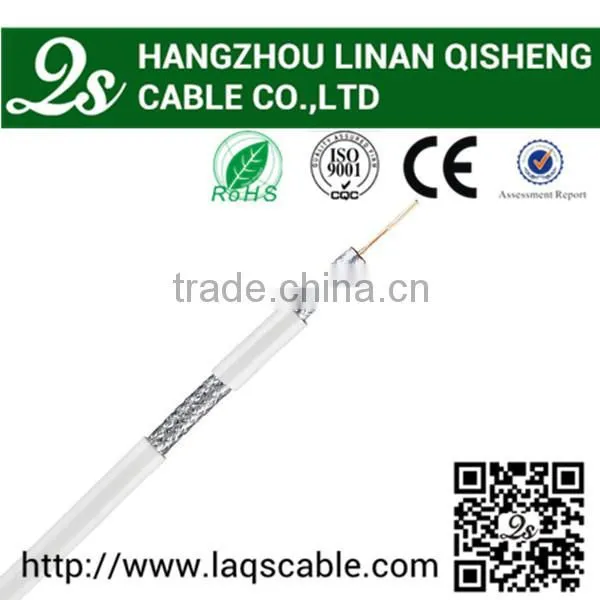

RG59 COAXIAL CABLE WITH POWER CABLE DATA SHEET
1)Construction
| Inner Conductor: | 0.81±0.01mm CCS |
| Insulation: | 3.65±0.05mm Foam PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95%Al-Mg/CCA |
| Jacket: | 6.00±0.05mm PVC |
| Jelly/APD | Per Customers Special Requirement |
| Power Wires | 2*7*0.3mm CCA/BC |
| Power Cable Jacket | 4.95±0.05mm PVC |
2)Characteristics
| Sparker Test: | 4000VAC |
| Impedance: | 75±3 Ohm |
| Capacitance: | 50±3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300Mhz) |
3)Attenuation:
| Attenuation | [@68°F.(20°C.)] | |
| Frequency(Mhz) | Maximum (dB/100 ft.) | Maximum (dB/100m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
QISHENG PRODUCTS:
*Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
Note:Customized specifications are also welcome

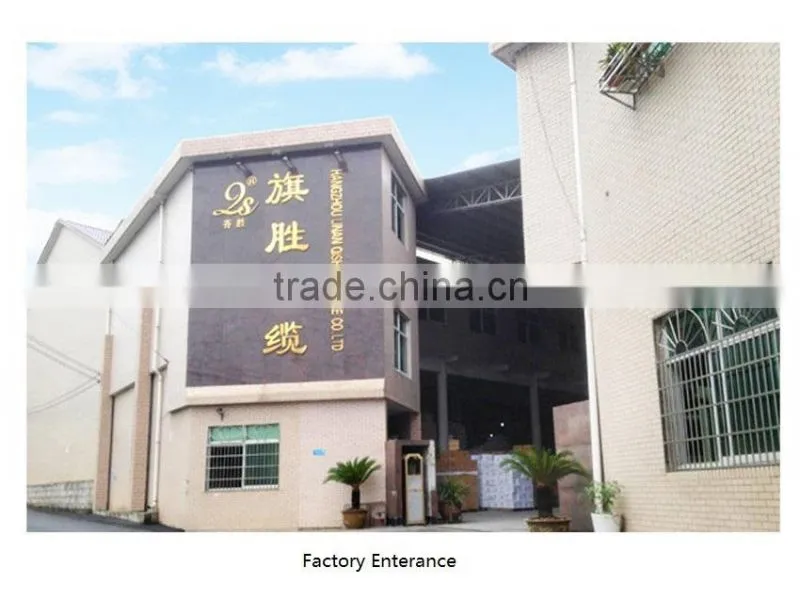

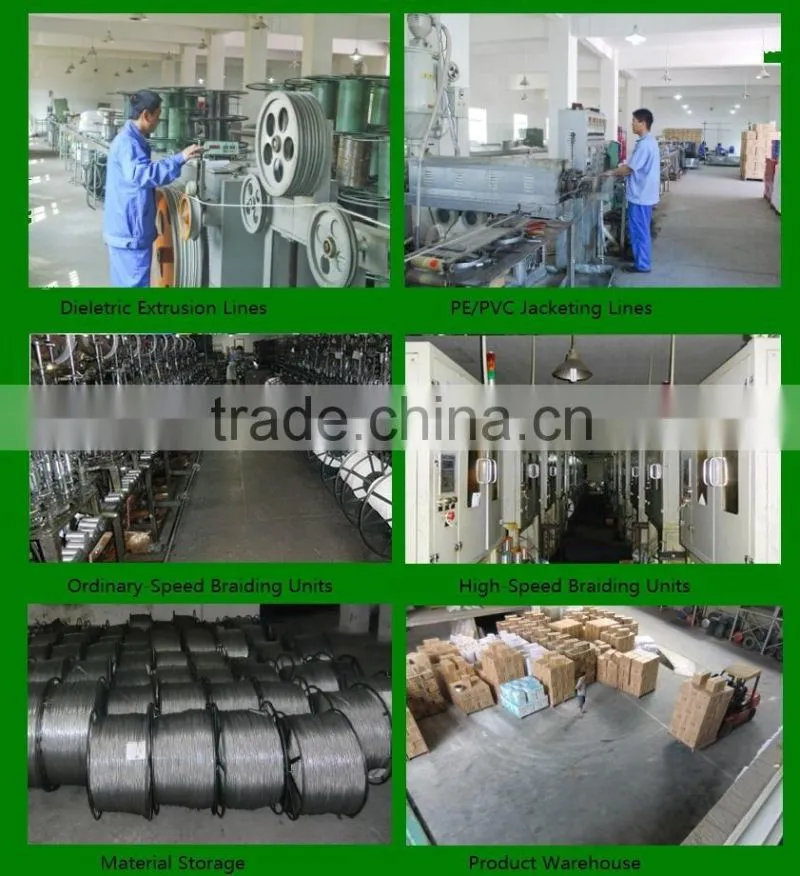

OUR WORKSHOP:
OUR PRODUCTS:

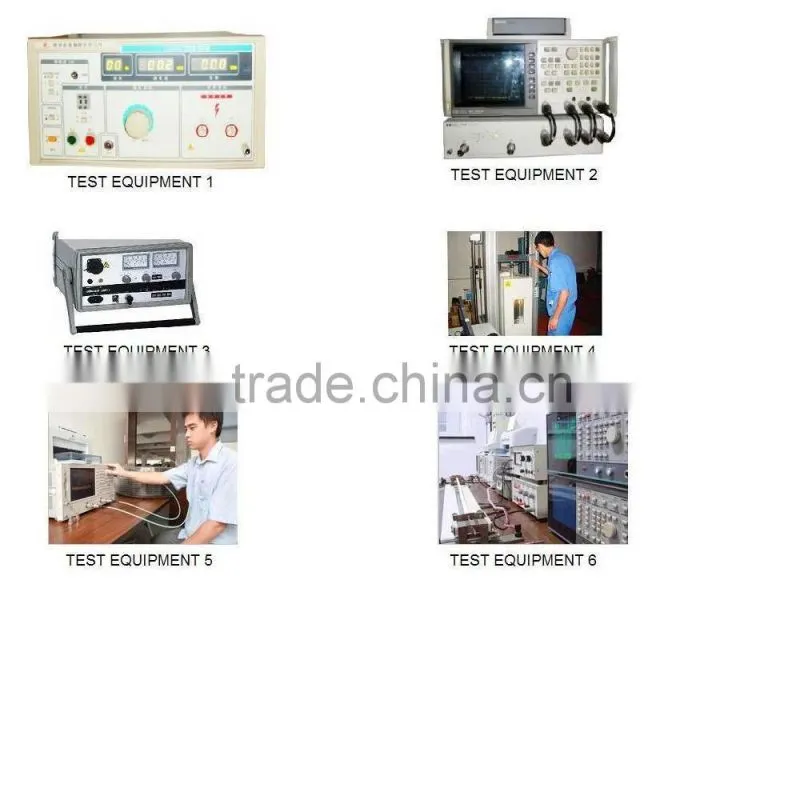

OUR TEST EQUIPMENTS
OTHER PRODUCTS
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
