Help Center0.4mm 0.5mm CCA Telephone Cable Rj11 50 Pair Telephone Cable
Related Products
-
0.4mm 0.5mm CCA Telephone Cable Rj11 Drop Wire Telephone CableUS$ 0.05 - 0.5MOQ: 30 Kilometers -
0.4mm 0.5mm CCA Telephone Cable Rj11 5 Pair Telephone CableUS$ 0.05 - 0.5MOQ: 30 Kilometers
-
0.4mm 0.5mm CCA Telephone Cable Rj11 Outdoor Telephone CableUS$ 0.05 - 0.5MOQ: 30 Kilometers
-
0.4mm 0.5mm CCA Telephone Cable Rj11 Fiber Patch CableUS$ 0.05 - 0.5MOQ: 30 Kilometers
-
0.4mm 0.5mm CCA Telephone Cable Telephone Wiring DuctUS$ 0.05 - 0.5MOQ: 30 Kilometers
50 pair telephone cable
100 pair UTP |
50 pair UTP |
40 pair UTP / FTP |
25 pair UTP / FTP |
|
Conductor |
24 / 26 AWG Copper |
24 / 26 AWG Copper |
24 / 26 AWG Copper |
24 / 26 AWG Copper |
Shield |
Unshield |
Unshield |
Unshield / Al Foil Shield |
Unshield / Al Foil Shield |
Insulation |
HDPE |
HDPE |
HDPE |
HDPE |
Jacket |
PVC / PE |
PVC / PE |
PVC / PE |
PVC / PE |
0.4mm 0.5mm CCA telephone cable 50 pair telephone cable
- Conductor:
- Material: Bare Copper (CCA/CCS optional)
- Type: Solid
- Diameter: 0.50mm (±0.02 )
- Gauge: 24awg
- Category: Cat3
- No.of Pair: 100 Pairs
- Insulation (Dielectric):
- Material: High Density Poly Ethylene
- Diameter: 0.90mm (±0.02 )
- Shield:
- Unshielded Twisted Pair
- Braiding (Screen):
- None
- Filler:
- Rip cord (4 pieces) + Polyester tape
- Jacket (Sheath):
- Material: PVC
- Color: Gray
- Package:
- 300m/Wooden Drum
- Implementation standard:
- ANSI/ICEA S-98-688-2006 , ANSI/ICEA S-99-689-1997
- Application:
- For connecting the broadband inside plant to the individual customer premises
- Network Cabling
- Data/Voice Cabling
- IP Camera
- Telephone Cabling
HYV TELEPHONE LINE
Specification |
Insulation |
Sheath |
Sheath OD(mm) |
20°C Conductor resistance |
||
|
Thickness (mm) |
Insulator OD(mm) |
Thickness (mm) |
Minimum (mm) |
Maximum (mm) |
||
2*1/0.5 |
0.25 |
1.0 |
0.8 |
2.00*3.10 |
2.30*3.40 |
95.5 |
4*1/0.5 |
0.25 |
1.0 |
0.5 |
3.2 |
3.8 |
95.5 |
6*1/0.5 |
0.25 |
1.0 |
0.6 |
4.1 |
4.8 |
95.5 |
We are professional manufacturer and factory ,we have our own producing team and selling team and we can control every step so that we can supply you good quality of products with competitive price, our workers are very experienced and skillful,if you choose us you will be satisfied with what you want here,we are looking forward to cooperating with you.
0.4mm 0.5mm CCA telephone cable 2 pair telephone cable
Let's connect to the world with our together efforts !

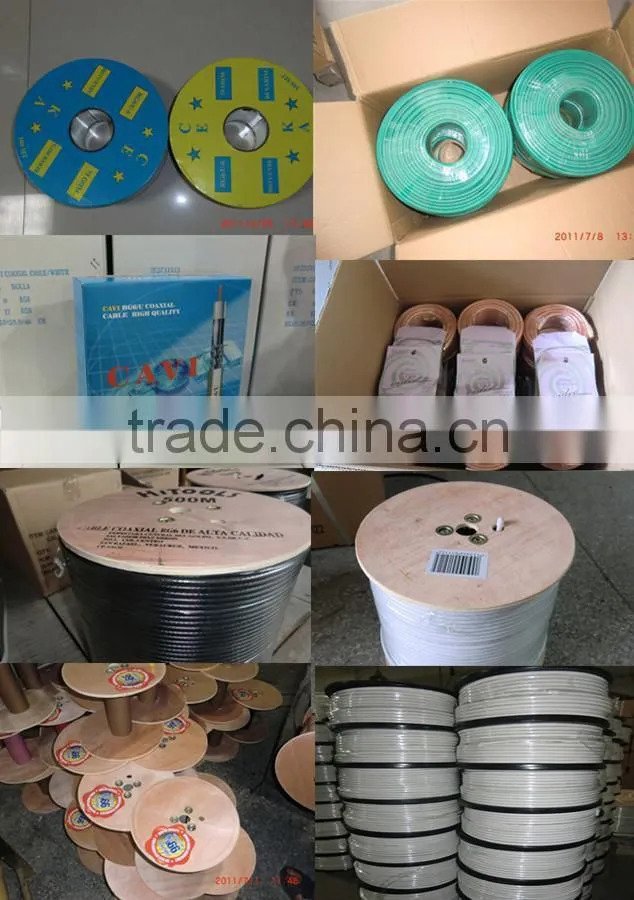

Packing Options:
--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.
--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,
--200m or 250m per Drum, two drums per carton,
--305m/Wooden Drum, one drum per outer carton or pallet loading,
--500m/Wooden Drum, one drum per outer carton or pallet loading,
--1000m or 3000m wooden drum, then pallet loading.
*We can also offer customized OEM packing according to clients' request
0.4mm 0.5mm CCA 50 pair telephone cable
1. Quick Response --All inquiries on our products will be replied within 24 hours.
2. Professional Quotation --All pricing will be made on customers' detailed specifications & requirements.
3. OEM & ODM Service
--We can print your own brand on our cable printing with foot or meter marking.
--Make customized designs for stickers, drums, outer cartons, etc.
4. Stable Quality --All materials and products passed restrict QC procedures, compliant with international standards.
5. Fast Delivery --LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
6.Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients
Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
If u are interested in our products please feel free to contact me ,these are my contacts following :
skype:xiaqingen
mobile :008618667002950
QQ:505688385
telephone:0086057161109618
My work time :7am-10pm( beijing time ).
hot sale network cable cat.6 cat.6 network cable
hot sale coaxial cable rg58 hot sale coaxial cable rg6
1.Q:Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
3.Q:How can I get some samples?
A:We are honored to offer you samples.
4.How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the every end.
Our factory has gained CE,ISO,ETL authentication.
