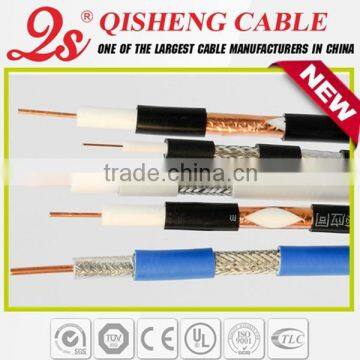

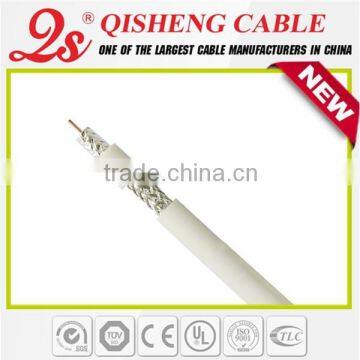

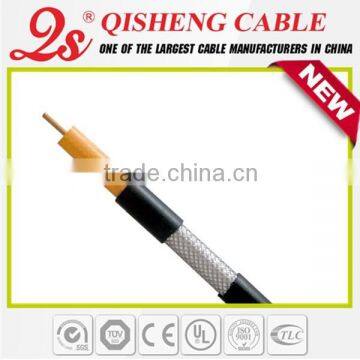

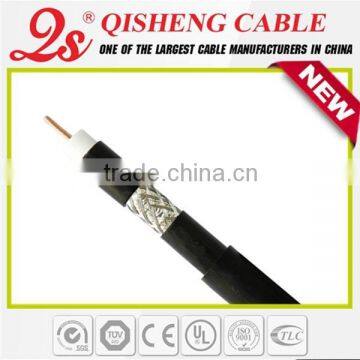

75 ohm RG6 coaxial Low db Loss rg59 rg6 rg11 crimp tool for CATV satellite system CE approved
| Construction | |||||
| Item | RG58 | RG59 | RG6 | RG7 | RG11 |
| Inner Conductor(mm) | 0.5 | 0.81 | 1.02 | 1.29 | 1.63 |
| Dielectric(mm) | 2.9 | 3.66 | 4.57 | 5.72 | 7.11 |
| Shield(mm) | 3.15 | 3.84 | 5.40 | 5.90 | 7.29 |
| Jacket(mm) Standard-shield | 5.10 | 6.10 | 6.90 | 8.10 | 10.16 |
| Jacket(mm) Tri-shield | 5.20 | 6.20 | 7.06 | 8.20 | 10.16 |
| Jacket(mm) Quad-shield | 5.74 | 6.73 | 7.54 | 8.64 | 10.34 |
| Electrical Characteristics | |||||
| Impedance(Ω) | 75 | 75 | 75 | 75 | 75 |
| Capacitance(pF/m) | 55 | 55 | 54 | 52 | 51 |
| Velocity of Propagation(%) | 84 | 84 | 84 | 85 | 86 |
|
Max Attenuation (dB/100m) |
Mhz | RG58 | RG59 | RG6 | RG7 | RG11 |
| 5 | 6.15 | 4.00 | 2.66 | 1.87 | 1.25 | |
| 55 | 8.25 | 6.76 | 5.25 | 4.17 | 3.38 | |
| 211 | 15.87 | 12.93 | 10.10 | 8.04 | 6.59 | |
| 270 | 17.93 | 14.76 | 11.48 | 9.15 | 7.55 | |
| 300 | 18.56 | 15.49 | 12.14 | 9.68 | 7.97 | |
| 330 | 19.67 | 16.27 | 12.76 | 10.17 | 8.37 | |
| 400 | 21.42 | 17.98 | 14.11 | 11.25 | 9.28 | |
| 450 | 23.08 | 19.13 | 15.03 | 12.01 | 9.91 | |
| 550 | 24.39 | 21.23 | 16.70 | 13.35 | 11.02 | |
| 750 | 28.14 | 25.00 | 19.69 | 15.78 | 13.09 | |
| 870 | 30.26 | 27.03 | 21.33 | 17.09 | 14.21 | |
| 1000 | 32.55 | 29.10 | 22.97 | 18.44 | 15.32 | |
|
Min Screening Effectiveness(dB) |
5MHz | 85 | 85 | 85 | 85 | 100 |
| 50MHz | 85 | 85 | 85 | 85 | 100 | |
| 300MHz | 90 | 90 | 90 | 90 | 110 | |
| 550MHz | 90 | 90 | 90 | 90 | 110 | |
| 1000MHz | 90 | 90 | 90 | 90 | 110 | |
| VSWR, Min(dB) | 5 ~300 | 22 | 22 | 22 | 22 | 22 |
| 300 ~1000 | 20 | 20 | 20 | 20 | 20 |

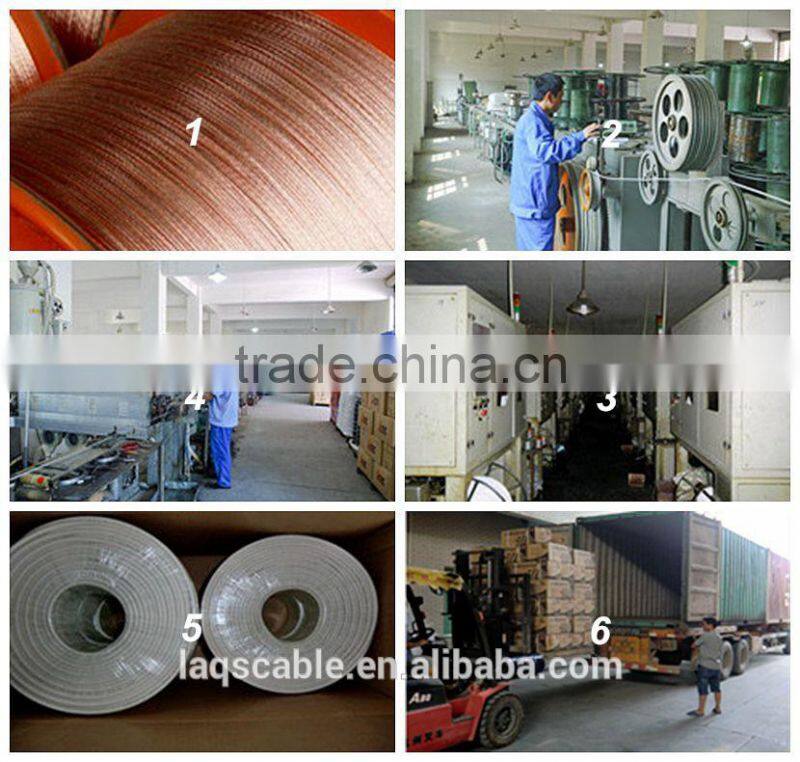

1.99.99% oxygen-free copper.
2.Dielectric machine(Physical Foaming and Solid Foaming).
3.Braiding machine(high-speed and general-speed).
4.PVC Jacket machine(include one transparent pvc jacket machine).
5.Finished products with packaging.
6.Shipping to 20GP, 40HC, 40HQ container.
1.Coaxial cable for CATV,CCTV systems.
2.Plus connector F, BNC, SMA, etc. as connection cable.
3.For Satellite Systems, HDTV, Security Camera Systems, Networking etc.

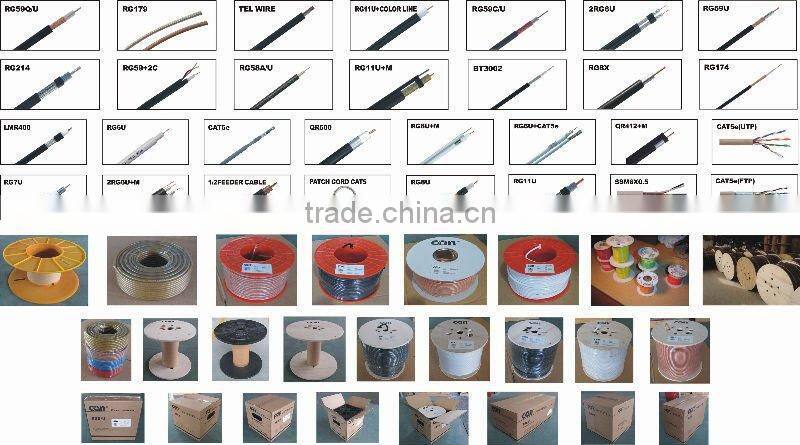

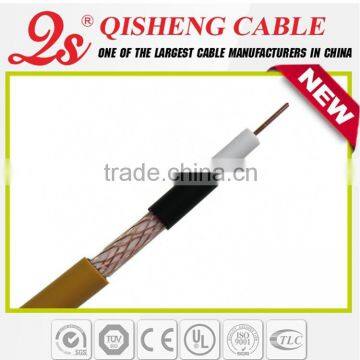

1.Coaxial Cable
Include RG58, RG59, RG59+2C Siamese cable, RG6, RG6 Dual, Tri, Quad shield coaxial cable, RG11, RG11 with messenger etc.
2.Networking Cable
Include cat5e, cat6, cat7(utp, ftp, stp, sftp)

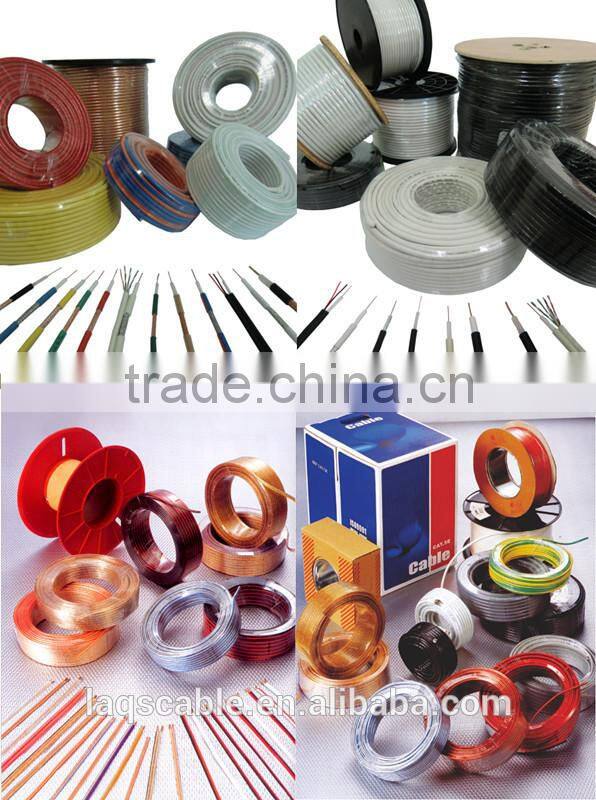

3.Electrical Cable&Audio Cable

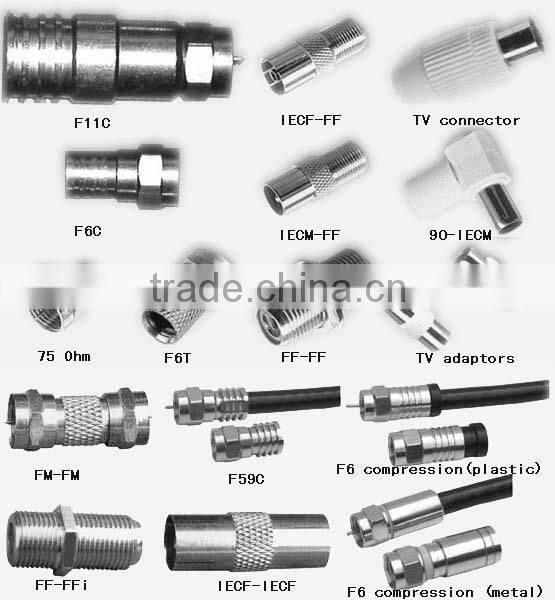

Connectors

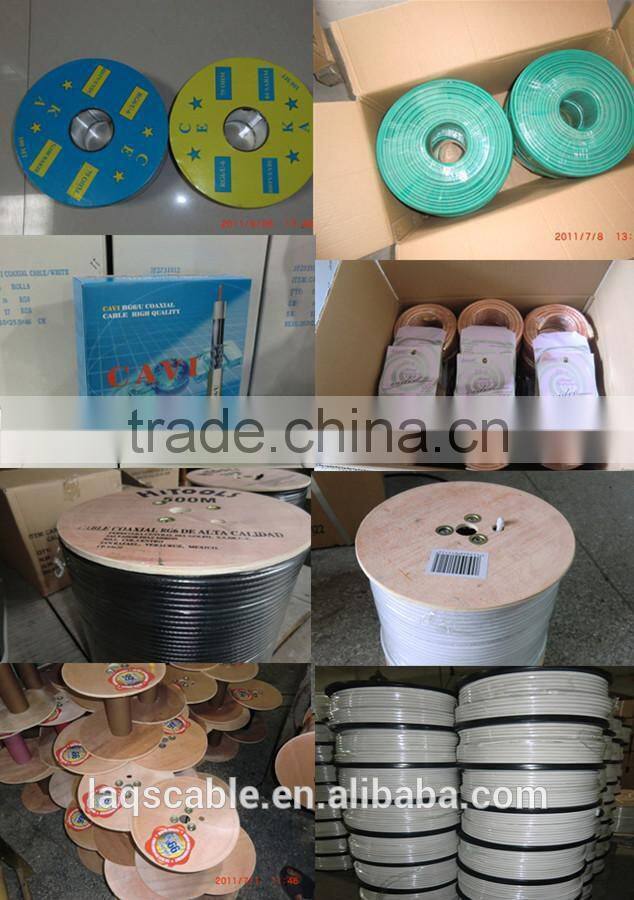

Product Packaging
Shipping
Certificates
Q1:Are you a trading company or manufacture?
A1:QS cable is a professional manufacture,not a trading company,Thus,we can control your order from the first begining to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after PO confirmation,but every inquiry will be based on the quantity.
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20M,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4:Usally we require advanced payment,and the balance before shipment,but every inquiry will be quoted taking client,orders and other factors into consideration
Q5:What is your commerial item?
A5:Usually we adopt FOB Ningbo/Shanghai,CIF,CFR and others.
