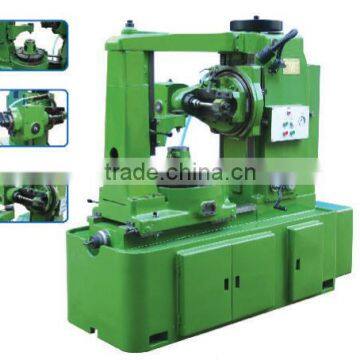

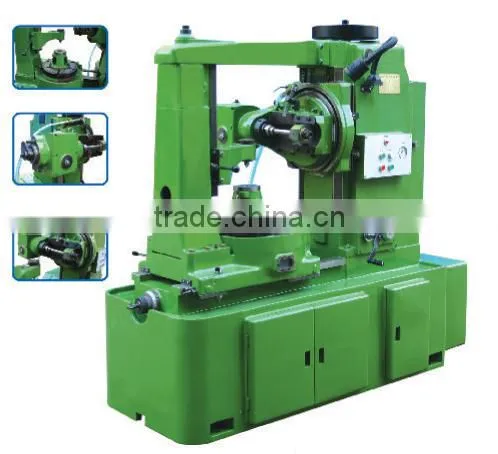

Gear Hobber For Sale Y3150 For Spur Gears
Main technical parameters |
Y3150-3 |
||
Max working module |
steel (mm) |
5 |
|
Cast iron(mm) |
6 |
||
Max diameter cutting straight Spur gear |
with column (mm) |
350 |
|
without column (mm) |
500 |
||
|
Max diameter cutting Cylindrical helical gear
|
Rotation angle 30° |
370mm |
|
Rotation angle45° |
250mm |
||
Max vertical travel of hob (mm) |
260 |
||
Max length of cutting (mm) |
240 |
||
Distance from hob spindle to worktable surface (mm) |
Max(mm)
|
320 |
|
Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm |
25 |
||
Minimum distance from worktable surface to hob spindle axis (mm) |
170 |
||
The changeable Diameter of hob spindle(mm) |
22 27 32 |
||
Max diameter of hob (mm) |
120 |
||
Diameter of workingtable hole (mm) |
60 |
||
Diameter of worktable mandrel (mm) |
30 |
||
Speed of Hob main spindle |
Grade |
8 |
|
Range (r/min) |
50-275 |
||
The vertical feed of hob |
0.24-4.25 mm/r |
||
Main motor power |
3 kw |
||
Main motor speed |
1430 r/min |
||
Pump motor power |
0.125 kw |
||
Pump motor speed |
2790 r/min |
||
Net weight (inclusive all standard accessories) |
2600 kg |
||
Size(L*W*H)mm |
1825*935*1730 |
||
The feature of the Gear Cutting Machines:
1.The basic guide surface :hardening treatment
2.Turbine material:Tin bronze
3. Processing range :spur gear ,spiral gear ,worm wheel and so on
The machine is suitable for processing a variety of cylindrical spur gears, helical gears and worm gear .
If you don't know how to set the change gears ,we could help you and take photoes for you .
The machine is suitable for single-piece production and mass production,As preparing a number of the same type of machine tool ,the most reasonable approach is to separate a certain number of machine tools designed for finishing cutting ,to ensure the machine is working well.
The Hobbing machine has sufficient rigidity, when the machine cutting gears ,it can processe to the desired depth of the teeth in once time, also could cutting in several times (layered cuting), when layered cutting we must follow certain rules to change every time cutting parameters, such as the choice of appropriate cutting speed, feed rate and reasonable precision of cutting depth ,and install the workpiece accurately , the machine can produce the seven grade precision gears.
Spur Gears Gear Hobbing Machine
has the hydraulic balancing device to balance the cutting resistance of the knife rest, the machine also can be used for smooth milling to improve machine productivity.
The gear cutting machine is equipped with a knife rest fast-moving device and automatically stopping device when finishing cutting, so the machine is not only widely used in gear cutting, and easy to operate, also could be multi-machine management.
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
