Product Details
Part: | Wheel | Place of Origin: | Shanghai, China | Brand Name: | Mac |
Model Number: | M12180/M12060 |
Product Description
Brief
Keyword: bicycle engine, hub motor, gear motor

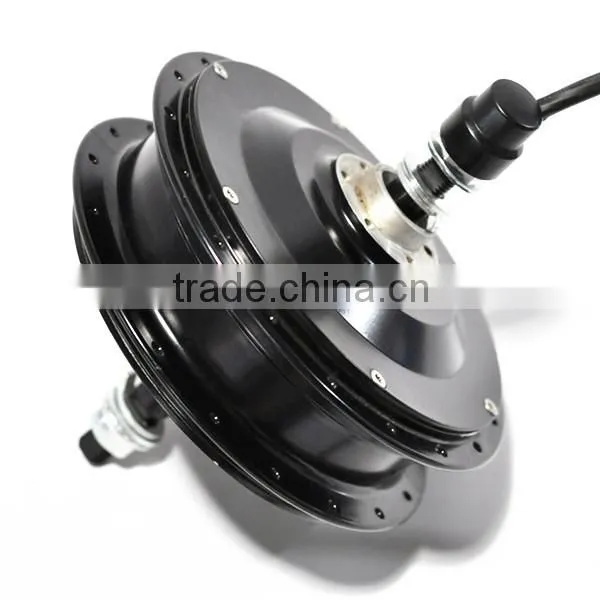

Mac offers a range of Ebike kits built using our Mac Geared Hub motor. For more detailed information on our Geared Hub Motors, please refer to our Hub-Motor listings. As we manufacture the motors we are able to modify the motor winding and stator to optimize the motor speed and power to meet the requirements such as Wheel Size (typically 16” to 700C), Max Speed (up to 50kph continuous or more for prolonged bursts), Max Power (up to 1000W continuous Output power, equivalent to approximately 1250W input power at rated speed), Max Torque and Battery Pack Voltage. The controller used and the controller programming can be modified to tailor the E-Bike Kits performance to your exact requirements and feel.
We are also able to offer lower Budget E-Bike Kits which offer good performance at a competitive price using proven parts and components. For low power 250W or 350W kits our High Power Controllers may not be necessary and cheaper rims and spokes are adequate. In the future we will also be offering lower budget Battery Packs with more modest performance and lower cost.
Whether you require a special E-Bike Kit with class leading performance and value or have more modest requirements, we can offer a well Engineered Kit assembled to your requirements by experts. If the lowest price at all costs is your main priority, we are not the best choice for you.
Motor Spec:
Model | M12180 | M12060 |
Rated Power(W) | 250-800 | 250-1000 |
Rated Voltage(V) | 24/36/48 | 24/36/48 |
Speed Range(rpm) | 160-520 | 160-520 |
Efficiency(%) | >80 | >80 |
Noise(dB) | <65 | <65 |
Weight(kg) | 4 | 4 |
Gear Ratio | 5:1 | 5:1 |
Usage | Front Hub motor for electric bicycle,golf cart,ATV etc. | Rear Hub motor for electric bicycle,golf cart,ATV etc. |
Features
1. Compact, Reliable, High Performance Fully Programmable Controllers for High End Kits. Well proven budget controllers also available.
2. Motor and controller combination optimized to customer requirements, whether that is strong torque for hills with modest speed to keep within EU limits or high torque, high speed and high power or just a well engineered reliable E-Bike Kit.
3. DISC brake compatible and up to 7-speed freewheel
4. Epicyclic Reduction Gear with FreeWheel and High Pole Count motor system means more torque and power in a compact/lightweight package and an effortless riding experience.
5. All kit parts are selected and designed for Long Life, are Maintenance Free and User Serviceable where necessary.
The performance curve of this product:
(If you download this picture, it will be clear.)
The performance data of this product:
(If you download this picture, it will be clear.)
MAC offers the best price-to-performance ratio in the market. We take pride in our products and back them up with good customer service. Our Engineering team is constantly working on developing and improving our products and we have a Western Sales Manager so there are absolutely no problems with communications in English. The Management team and Key Engineering members also have a good level of English, so doing with Business with us will be easy. We are located in Pudong, only about 45mins taxi from Pudong International Airport.
We are now seeking International Distributors for our Products. If you require good quality and high performance at a reasonable price I’m sure we can meet/exceed your requirements. If you want the cheapest and barely adequate products, we may not be the right choice for you.
