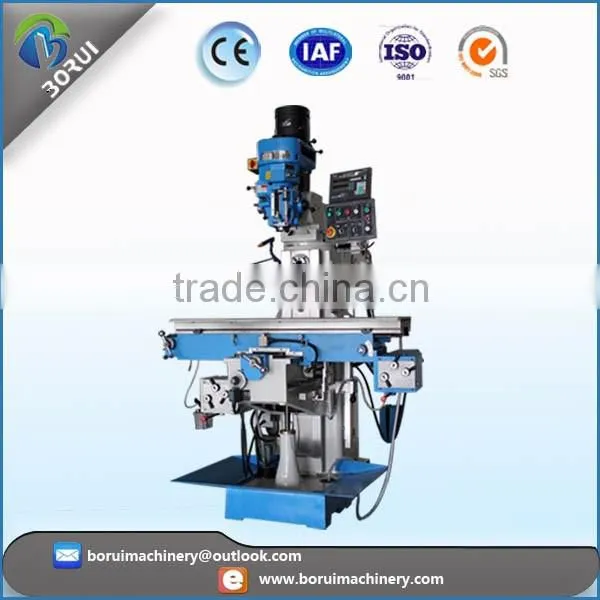

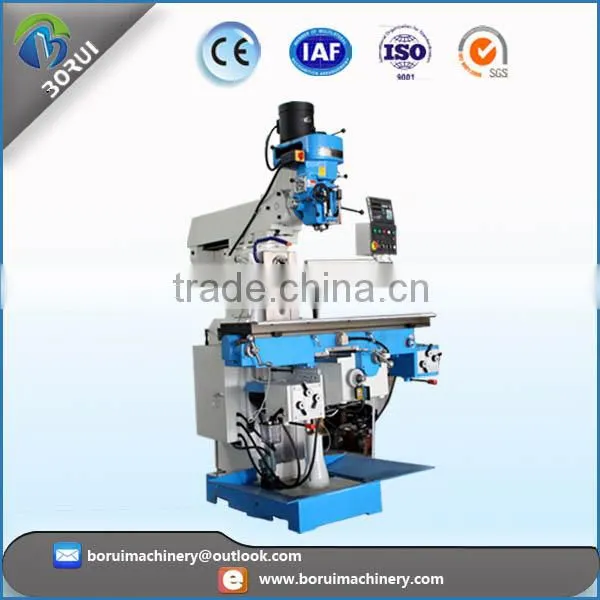

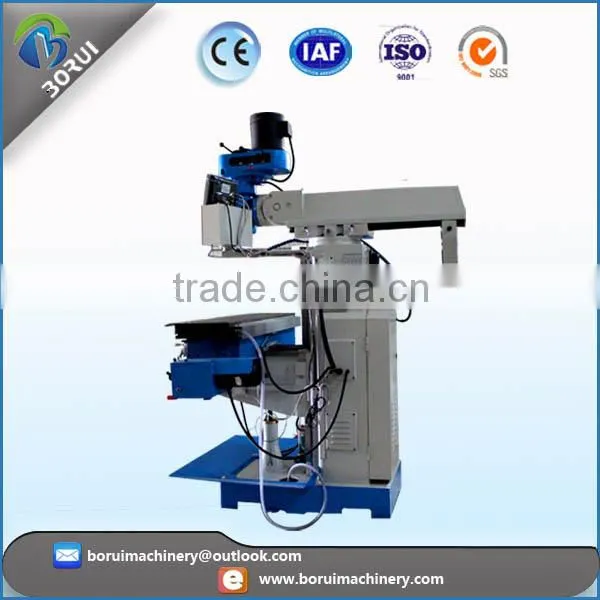

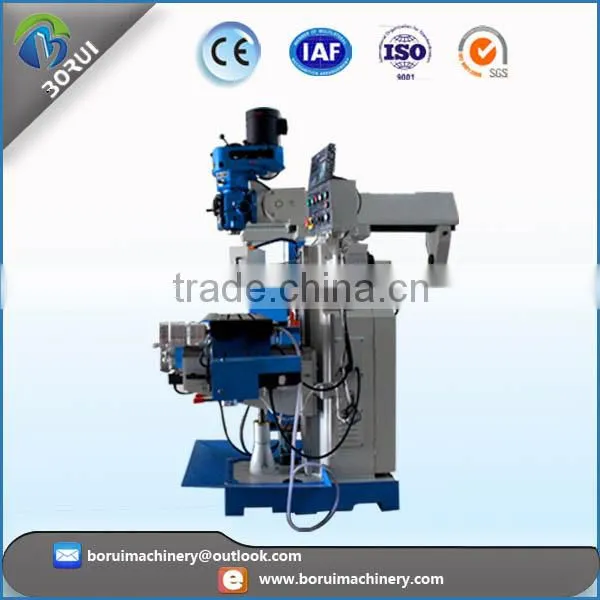

Product Name : X6336 Turret Milling Machine With Price
The Turret Milling Machine advantage :
1.The milling machine Auto feed on two axis,motorized lift on Z axis
2.Hardening treatment,rectangular guide way
3.High speed turret milling head, high precision
4.The Universal milling machine structure of rectangular guide rail, the milling machine itself is more stable, more accurate.
The automatic feed device replaces the lifting motor, which can not only realise the automatic lifting, also can cut.
X6336 Milling Machine Specifications:
Table size |
mm |
1320x360 |
T slot no./width/distance |
no |
3/18/80 |
Max. load of Table |
kg |
300 |
table Longitudinal travel(manual/auto) |
mm |
980 |
table Cross travel (manual/auto) |
mm |
300 |
table Vertical travel(manual/auto) |
mm |
450 |
Spindle taper |
|
ISO40(V)ISO50(H) |
spindle speed /step -- Vertical |
rpm |
70-3620/10steps |
--Horizontal |
rpm |
58-1800/12steps |
Max.drilling dia. |
mm |
30 |
Max.end milling width |
mm |
125 |
Max. vertical milling Dia. |
mm |
25 |
Max.tapping dia. |
mm |
M16 |
quill travel |
mm |
140 |
swivel angle of head stock |
degree |
±45º |
vertical spindle axis to column surface |
mm |
150-550 |
Distance From spindle to table surface |
mm |
200-650 |
horizontal spindle axis to table surface |
mm |
0-450 |
horizontal spindle axis to ram bottom |
mm |
235 |
ram travel |
mm |
400 |
Longitudinal/cross feed |
mm / min |
15-370/8steps |
Vertical/step |
mm/min |
575/1step |
Longitudinal/cross rapid speed |
mm / min |
575 |
Rapid Traverse vertical |
mm/min |
575 |
automatic spindle feed |
|
0.04/0.08/0.15(per rev.) |
main motor |
kw |
3.7(V),4.0(H) |
feed motor |
kw |
0.75(X/Y),1.1(Z) |
coolant motor |
kw |
0.09 |
overall dimension |
cm |
2070x2020x2330 |
N/W,G/W |
kg |
2200/2400 |
Standard accessories |
Optional Accessories: |
1.Drill chuck |
DRO on X, Y, Z--AXIS |
2.Mill chuck |
Clamping kit |
3.Inner hexagon spanner |
Universal dividing head |
|
4.Work light 5.Reduction sleeve |
Rotary work table. |
6.Draw bar |
|
7.Spindle arbor |
|
8.wrench |
|
9.Machine vice |
|
10.Horizontal milling arbor |

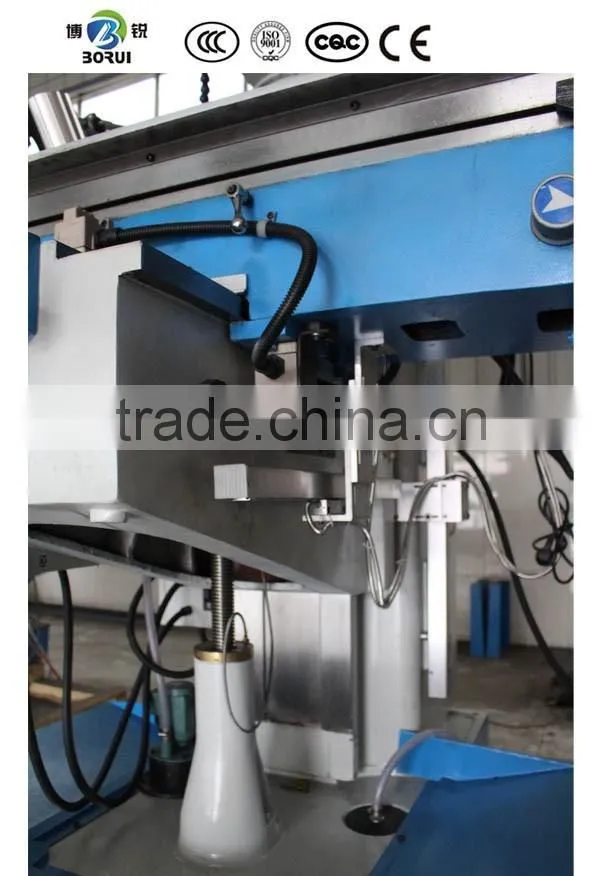

Limit switch configuration, the operation is more secure

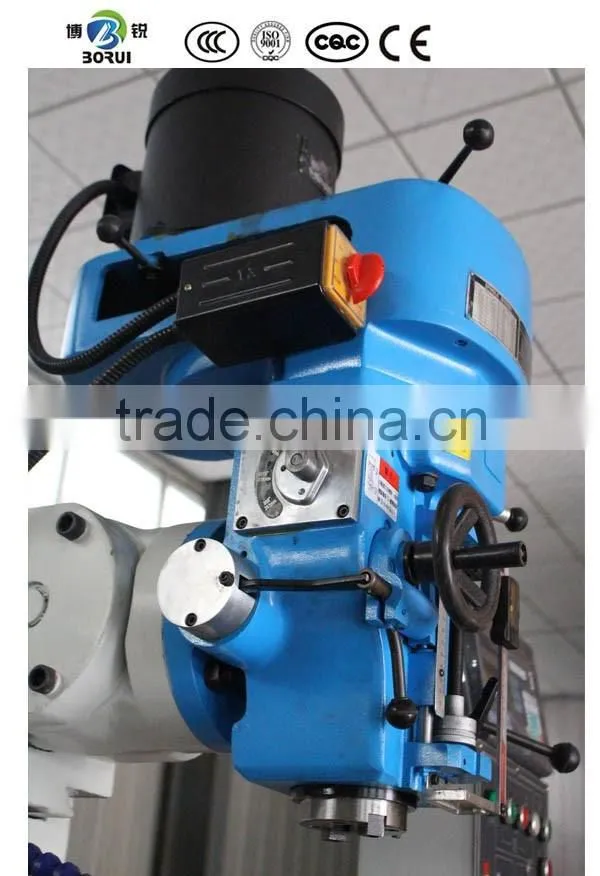

Turret Milling Head with High Speed (70-3620) and Quality is good (Made by TAIWAN Province OF China )
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
