China SINOSUN widely capacity asphalt plant | bitumen plant
SINOSUN asphalt batching plants are designed for international market and could be customized according to different requirements, covering a diverse range of products from 40 TPH to 400 TPH.
SAP series asphalt batching plant is the final solutions for customer requirements on quality , environment and economical investment.
With complete set of accessories, SINOSUN asphalt batching plant can process different materials,10%-35% RAP, modified bitumen, emulsified bitumen etc , and also produced special products , such as SMA ( stone mastic asphalt),colorful asphalt ,additives of liquid ,fibers of granular or cotton-shaped .

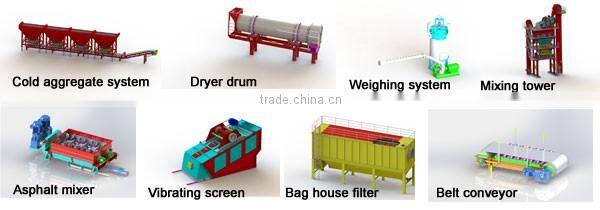

Components of SAP series Asphalt Plant
Cold aggregate feeding system
Drying System (Drying Drum & Burner)
Hot Aggregate Elevator
Mixing Tower (Vibrating Screen,Main Tower, Mixer,Weighing System)
Bitumen Supplying System
Dust Collecting System (Primary Dust Collecting,Secondary Dust Collecting)
Electrical Control System
Filler Supplying System
Features Of SAP series Asphalt Plant/Bitumen Plant
1.SAP Asphalt Plant adopts modular structure, reasonable layout, simple and compact structure, suitable for container transportation, installation demolition convenient.
2.The Asphalt Plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
3.All the components can put into the container, can greatly reduce transport cost.
4.No foundation and modular design, can induce the install and disassembly time to the shortest.
Technical parameter of SAP series asphalt batching plant
Capacity |
SAP80 |
SAP120 |
SAP160 |
SAP240 |
SAP320 |
SAP400 |
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
400t/h |
|
Max capacity of oblique belt machine |
Width 500mm |
Width 600mm |
Width 650mm |
Width 800mm |
||
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
400t/h |
|
Max capacity of dry roller( mm) |
1600×6800 |
1800×8000 |
2200×8500 |
2800×9000 |
2800×11000 |
2800×13000 |
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
400t/h |
|
Max burning amount of burner |
Coal burner |
|||||
1300kg/h |
1700kg/h |
2500kg/h |
3600kg/h |
4500kg/h |
6000kg/h |
|
Filtrating area of bag dust collector( m2) |
Pulse Jet |
|||||
400 |
480 |
624 |
896 |
1152 |
1440 |
|
Recycling screw conveyor |
12t/h |
13.5t/h |
18t/h |
30t/h |
46t/h |
60t/h |
Blower |
900m3/(m) |
900m3/(m) |
1200m3/(m) |
1600m3/(m) |
2200m3/(m) |
2700m3/(m) |
Flue pipe( mm) |
1200×9600 |
1200×10000 |
1300×9600 |
1300×12000 |
1400×12000 |
1500×12000 |
Max. capacity of hot aggregate elevator |
Chain elevating |
|||||
110t/h |
130t/h |
170t/h |
260t/h |
340t/h |
420t/h |
|
Max. capacity of vibrating screen |
80t/h |
120t/h |
160t/h |
240t/h |
340t/h |
420t/h |
Interval capacity of hot aggregate hopper |
4 interval type |
5 interval type |
6 interval type |
|||
Weighting device |
Remote display of electronic gauge) |
|||||
Aggregate:±0.3% | ||||||
Bitumen :±0.15% | ||||||
Fine aggregate:±0.3% | ||||||
Mixer |
Double-axis forcing stirring batch |
|||||
Single-unit drive 1000kg/lot |
Single-unit drive 1500kg/lot |
Single-unit drive 2000kg/lot |
Single-unit drive 3000kg/lot |
Single-unit drive 4000kg/lot |
Single-unit drive 5000kg/lot |
|
Discharging amount of bitumen injector |
Self-flow |
Screw pump injection type |
||||
300L/min |
500L/min |
700L/min |
900L/min |
900L/min |
1200L/min |
|
Max. capacity of filler elevator |
Hopper elevating |
|
|
|
||
15t/h |
15t/h |
20t/h |
|
|
|
|
Spiral conveyor |
15t/h |
20t/h |
24t/h |
36t/h |
44t/h |
60t/h |
Operating panel |
Computer display |
|||||
Drive panel |
Indoor type |
|||||
248kw |
311kw |
500kw |
750kw |
870kw |
960kw |
|
SINOSUN is one of China's dominant manufacturers and exporters of Precisioned Asphalt Batch Mix Plants and related asphalt batching plant parts.
For over years, SINOSUN has supplied the asphalt industry with high quality asphalt batching plant parts and equipments.
SINOSUN's asphalt solutions including asphalt batching plants are cost effective, user friendly, easy to maintain and strong after - sales services. SINOSUN is equipped with most modern and mature factory setup to produce high quality asphalt batching plant.
Due to the diverse product range and sufficient production capacity, SINOSUN could be able to meet various needs of our customers.
We mainly supply:
1.Stationary asphalt batching plant (SAP series)
2.Mobile asphalt mixing plant ( MAP series)
3.Twin-shaft asphalt mixing plant (QLB series)
4.Twin-drum asphalt mixing plant (SLB series)
5.Continuous asphalt mixing plant (CAP series)
Our asphalt plants have been widely used in home and abroad road construction project, such as Russia, Romania , Poland , Brazil , Philippines , Indonesia etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya.
After Sale Service
1. Provide technical consultation service for customer, do well techinical follow-up.
2. Installation, debug, and provide relavant technical training.
3. Strictly carry out three guarantees(guaranteed quality, guaranteed quantity and guaranteed repair).
4. Ensure spare parts and components available adequately and timely for all working life.
1.What's capacity range of SINOSUN asphalt mixing plant?
A:The capacity range of stationary asphalt mixing plant is from 40TPH to 400TPH.
Most popular of stationary asphalt mixing plant are SAP80 stationary asphalt mixing plant and SAP120 stationary asphalt mixing plant.
The capacity range of mobile asphalt mixing plant is from 40TPH to 120TPH.
Most popular of mobile asphalt mixing plant are MAP60 asphalt mixing plant.
The capacity range of continuous asphalt mixing plant(also called drum mix asphalt plant) is from 20TPH to 120TPH.
Most popular of continuous asphalt mixing plant are CAP40 asphalt mixing plant and CAP60 asphalt drum mix plant.
2.What's advantages of SINOSUN asphalt mixing plant?
A:High quality and reliability of asphalt mixing plant;
Professional technical support to solve any technical problems;
Professional service team to provide 24H online service;
Original spare parts are in stock at competitive prices.
3.What's SINOSUN's Quality Certification?
A: Third Control
ISO9001:2000 Certificate
European CE Certificate
Environment Protection Design
