Pulley continuous drawbench machinesuitable for drawing low-carbon steel wire, galvanized wire, tire steel wire, stainless ste

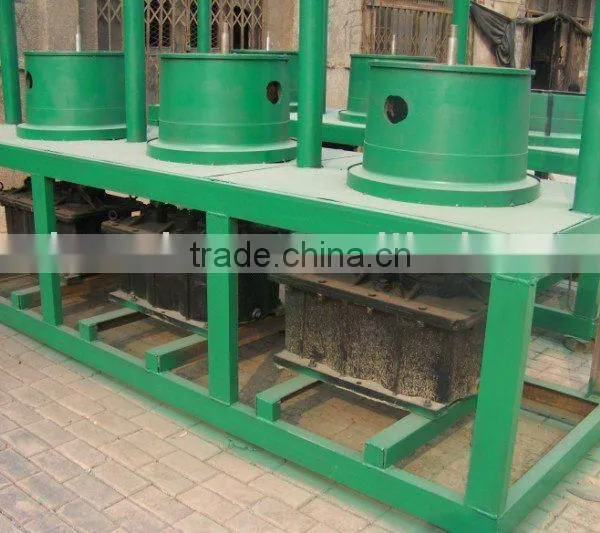

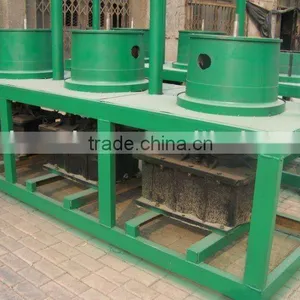

Pulley continuous drawbench machine
Our factorys pulley continues drawbench the pulley continuous wire drawing machine has a simple structure, low cost, easy to operate and so on. Specifications suitable for drawing a variety of fine metal wire, especially suitable for drawing low-carbon steel wire, galvanized wire, tire steel wire, stainless steel wire, hose steel wire, spring steel wire, welding wire as well as aluminum pole, copper wire etc,.
Scope of application: gas security wire, welding electrode wire, stainless steel wire, galvanized iron wire, medium and high-carbon steel wire, copper wire, wire and other metal products used etc.,
Spec |
Drawing path times |
Max. wire comingMM |
Mini. Wire outingMM |
Motor Power KW |
Max.speedM/S |
Running form |
650 |
1-4 |
8.00 |
4.00 |
22-15 |
2 |
Gear running |
560 |
1-7 |
6.50 |
2.00 |
22-11 |
6 |
Gear running |
450 |
1-7 |
3.50 |
1.20 |
18.5-15 |
7 |
Gear running |
400 |
6-8 |
2.50 |
0.80 |
11-15 |
18 |
Triangle belt running |
360 |
1-7 |
2.50 |
0.60 |
11-7.5 |
8 |
Gear running |
