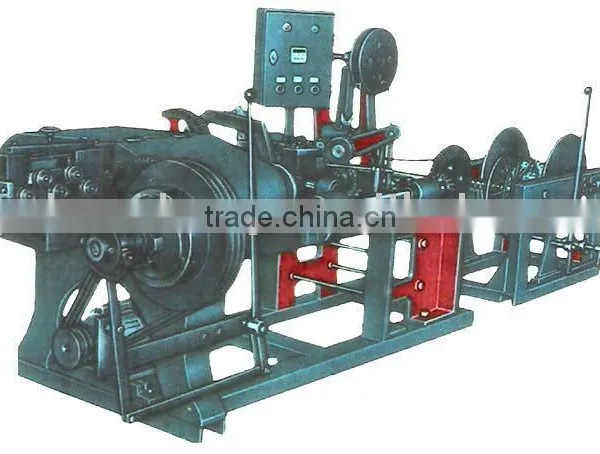

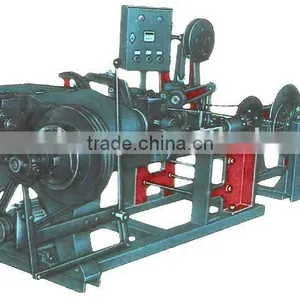

Razor Barbed Wire MachineRazor Barbed Wire Machine
This machine is used in produce of various types of razor barbed wire, and gill nets. It's compact, small size, easy to operate, easy maintenance, small energy-consuming, high efficiency, and the loss of raw materils is far less than traditional models.
STRUCTUREDATA |
POWER |
NUMBER |
SPEE(time/min) |
MEASUREMENT(m) |
WEIGHT/KGS |
PURPOSE |
Pressure machine |
2.2KW |
1 |
90 |
0.9 x 2.1 |
1300 |
Press and cut the steel strip to 9 pieces. |
Convey machine |
1.1KW |
1 |
100-1200 |
1.3 X 1.3 X 1.5 |
500 |
Convey steel strip to pressure machine |
Winding machine |
1.1KW |
1 |
100-1200 |
0.75 x 1 x 1.3 |
200 |
Winding the blade |
Wire wap machine |
1.1KW |
3 |
100-1200 |
1.1 x 1 x 1.2 |
245 |
To wrap the core wire by the shaped blade |
Blade bracket |
----- |
1 |
100-1200 |
------------------- |
------- |
Separate the 9 shaped blade. |
"±" shaped box |
----- |
9 |
100-1200 |
------------------- |
------- |
Wrap the wire for the blade. |
Wire Camer |
------ |
3 |
100-1200 |
------------------- |
------- |
For camier of steel wire |
Wire canister |
----- |
3 |
100-1200 |
------------------- |
------- |
For fix on the diameter of the coil(size according to the request) |
