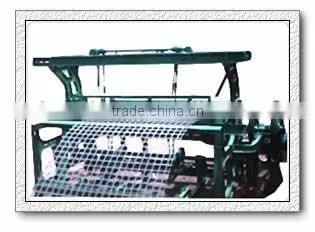

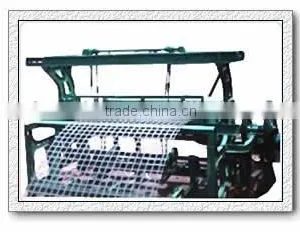

Help CenterCrimped Wire Mesh Machine
Related Products
Specifications
Uses:This machine is using to produce Square Mesh.Crimped Wire Mesh Machine is developed by our company.This machine is using to produce Square Mesh.There are two main types, Full-Automatic and Semi-Automatic .By using pedal control system ,it greatly improves the number of shuttle, uses type of control to lead the new tide faction in screen machine field.It can weave crimped wire mesh with large diameter Steel, iron, lead and stainless steel.The machine firstly rolls the large-diameter metal wire into the necessary curve shape, then weaves .As weaving after the first series of rolling processes,the machine bends the two cards in the relative position,to guarantee mesh size and strengthen the structure .It can be widely used in coal, metallurgy, construction, mining, farming, chemical and other industries.
Main Technical Parameters:
1. Braided aperture:0.5mm-2mm, 2mm-10mm, 0.7-20mm 3mm-120mm
2. Braided width:1m-6m
3. The maximum spindle speed 36 turns/min
4. Equipped with power 3km-7.5km
5. Weight 1.5T
Crimped Wire Mesh Machine
The warp and weft wire can be feeded automatically.
The wire scope : 2--8mm.
The mesh opening: 1mm--20mm
Spare Part: Electric System, Crimped System, Crimped Gear
Crimped Wire Mesh Machine | |||
Model |
MEASUREMENT(mm) |
WEIGHT(kg) |
WIDTH (m) |
YHZJ-SA-44 |
2500*2100*1350 |
1200 |
1.0 |
YHZJ-SA-52 |
2500*2300*1350 |
1280 |
1.2 |
YHZJ-SA-56 |
2500*2400*1350 |
1350 |
1.3 |
YHZJ-SA-63 |
2500*2600*1580 |
1500 |
1.5 |
YHZJ-SA-75 |
2500*2900*1580 |
1800 |
1.8 |
YHZJ-SA-21 |
2500*3400*1650 |
2000 |
2.2 |
YHZJ-A-44 |
2260*2700*1350 |
1550 |
1.0 |
YHZJ-A-52 |
2260*3000*1350 |
1600 |
1.2 |
