Rebar Tying MachineBLD-220,BLD-400 ,BLD-510

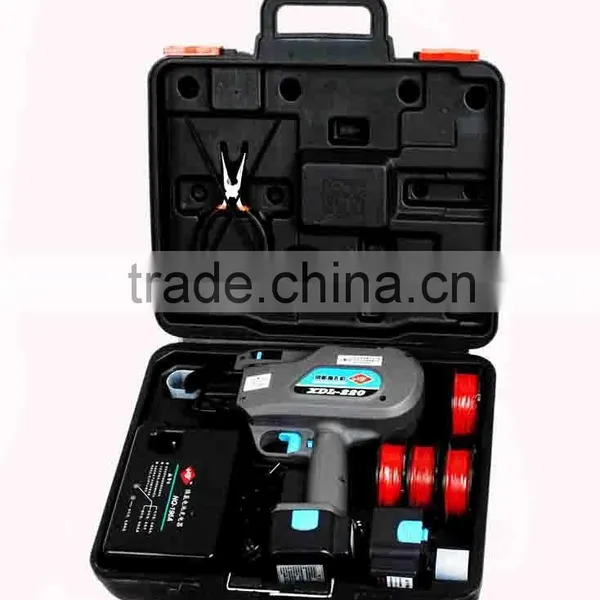

BLD-220The total weight is 2.15kgs,the max. tying diameter is 21mm.Motor voltage is 9.6V with nickel and metal hydride electric batteries. It will take around 0.8 seconds to tie a knot. The length of wire for tying is around 380mm (2 wraps)/510mm (3 wraps).The charged battery can tie more than 1000 knots once and the charge time is around 50 minutes. The diameter of wire is 0.8mm.

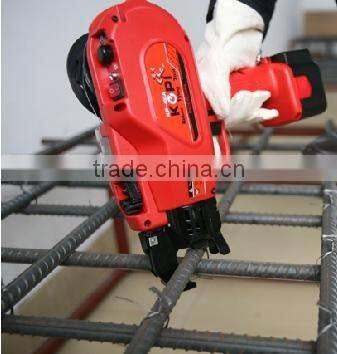

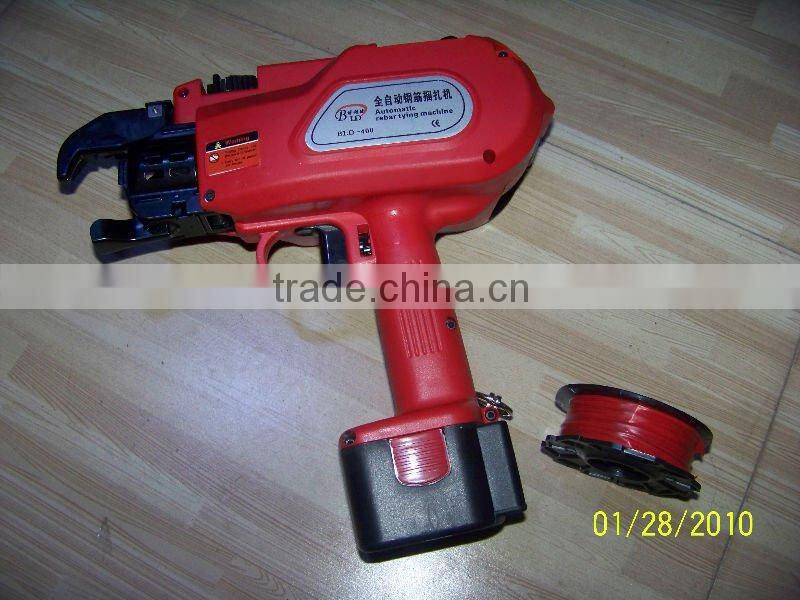

BLD-400The total weight is 2.2kgs,the max. tying diameter is 40mm.Motor voltage is 9.6V with nickel and metal hydride electric batteries. It will take around 0.9 seconds to tie a knot. The length of wire for tying is around 600mm (2 wraps)/780mm (3 wraps).The charged battery can tie more than 900 knots once and the charge time is around 50 minutes. The diameter of wire is 0.8mm.
Model No. | BLD-220 | BLD-400 | BLD-510 |
Max Tying Diameter | 21mm | 40mm | 50mm |
Time of Making a Knot | 0.8 seconds | 0.8 seconds | 1.0 seconds |
Voltage | DC9.6V | DC9.6V | DC9.6V |
Weight | 2.15kgs | 2.2kgs | 2.25KGS |
Turns per Tie | 2 turns/3turns | 2turns/3turns | 3turns/4turns |
Ties per Coil | Approx. 230ties(2turns) | Approx.160ties(2turns) | Approx. 100 ties(3 turns) |
Ties per Charge | 4-5 Coils | 6-7 Coils | 7-8 Coils |
Length of Wire for Tying | 380mm/2 turns 510mm/3 turns | 600mm/2 turns 780mm/3 turns | 1100mm/3turns 1350mm/4turns |
Dimension(L)X(W)X(H) | 398mmX150mmX410mm | 398mmX150mmX410mm | 398mmX150mmX410mm |
If you are interested with our machine, kindly contact us :
Tel:86-318-7589165
Fax:86-318-7589592
Att.: Julia zhu
