Hydroelectric Pelton Turbine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Wa Wu Shan
Model Number:
CJA475-W-90/2X9.6
Payment & Shipping
Payment Methods:
Port of Shipment:
Negotiable(Shanghai or CIF required port)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Power Plant Design and Construction--project With Pelton Turbine Generator UnitUS$ 200 - 80,000MOQ: 1 Set -
50kw Turgo High Pressure Hydraulic GeneratorUS$ 10,000 - 200,000MOQ: 1 Set
-
Jet Turgo Turbine for Hydraulic Power PlantUS$ 10,000 - 200,000MOQ: 1 Set
-
Small Turgo 50kw Water TurbineUS$ 10,000 - 200,000MOQ: 1 Set
-
Turgo Generator 500kw Water TurbineUS$ 10,000 - 200,000MOQ: 1 Set
Place of Origin
Sichuan, China
Brand Name
Wa Wu Shan
Model Number
CJA475-W-90/2X9.6
Type
Other, Hydro power
Specifications
1.Generator:SFWE-K2000-8/14302.water head:265m
3.Professional turbine factory
4.Capacity:2500KVA
5.Storage power station
Hydroelectric pelton turbine,a type of impulse turbine
| Frequncy | 50HZ,60HZ | ||||||||||
| MOQ | 1 set | ||||||||||
| Packing | in wooden casewith export packing standard | ||||||||||
| Inlet valve connected | GLYWT-1000 | ||||||||||
| Exported area | Indonesia, Albania, Burma, Vietnam,Pakistan.... | ||||||||||
|
Superiority |
Wide range for different water head Easy operation Optimum efficiency up to 94% Stable operation up to 50 years R & D support ISO9001:2008 |
||||||||||
|
Model number |
|
||||||||||
|
Specification and detail |
Pelton wheel,also called a free-jet turbine,a type of impulse turbine ,suited to high head, low flow applications. Typically, to work this type of turbine, water is piped down a hillside so that at the lower end of the pipe it emerges from a narrow nozzle as a jet with very high velocity. The Pelton turbine can be controlled by adjusting the flow of water to the buckets. In order to stop the wheel a valve is used to shut off the water completely. Small adjustments, necessitated by alterations in the load on the generator, are more safely made by a device which deflects part of the water jet away from the buckets. Pelton wheels are are used in storage power stations with downward gradients up to 2,000 meters and can contain up to 6 nozzles. Compare with the Francis turbine and the Kaplan turbine. |

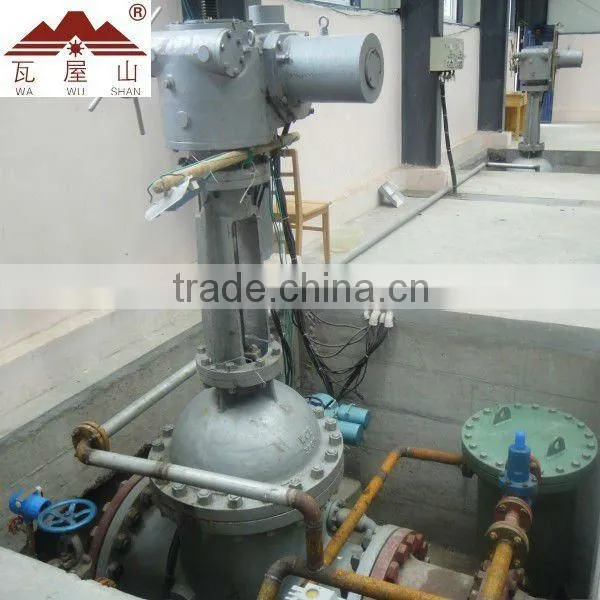

Electrical gate valve installed before the water turtine

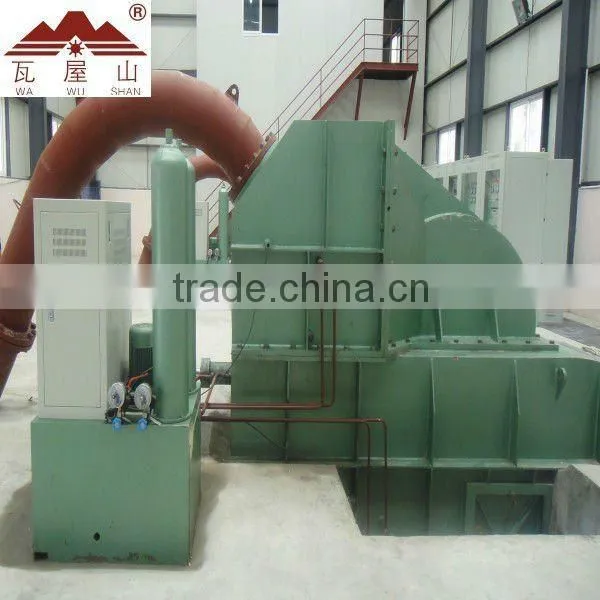

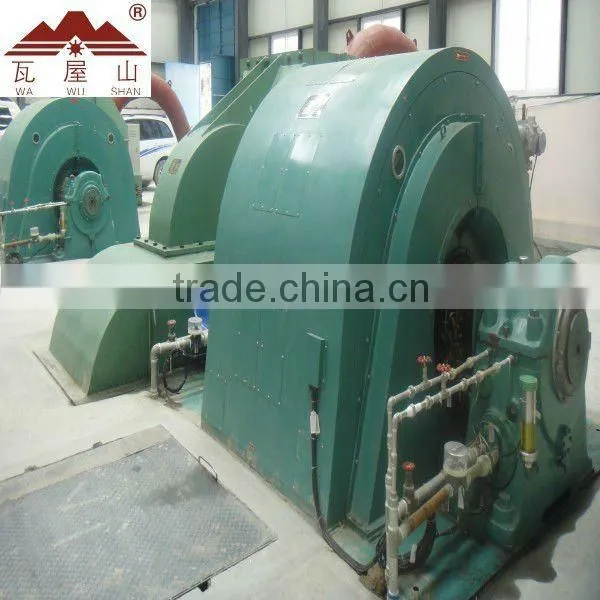

Pelton turbine(double nozzles) installed in the power station

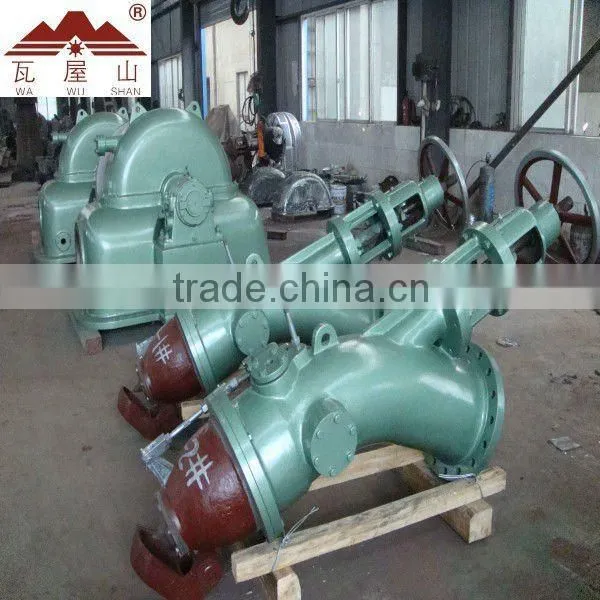

Pelton turbine (single nozzle) manufactured in our factory

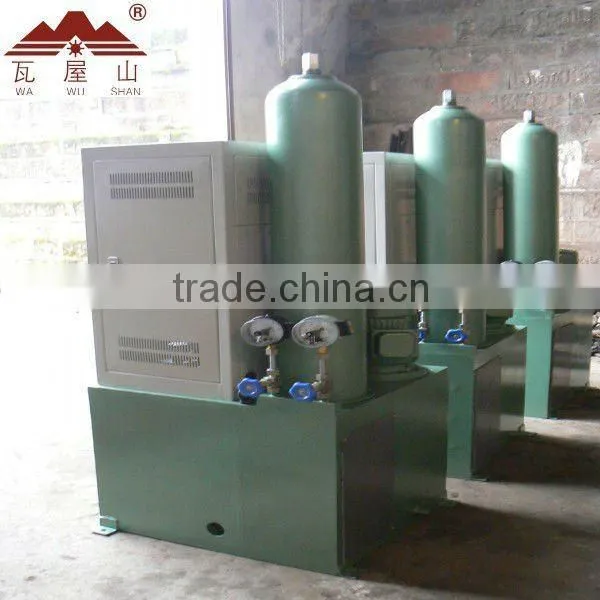

GLYWT-1000 generator speed controller

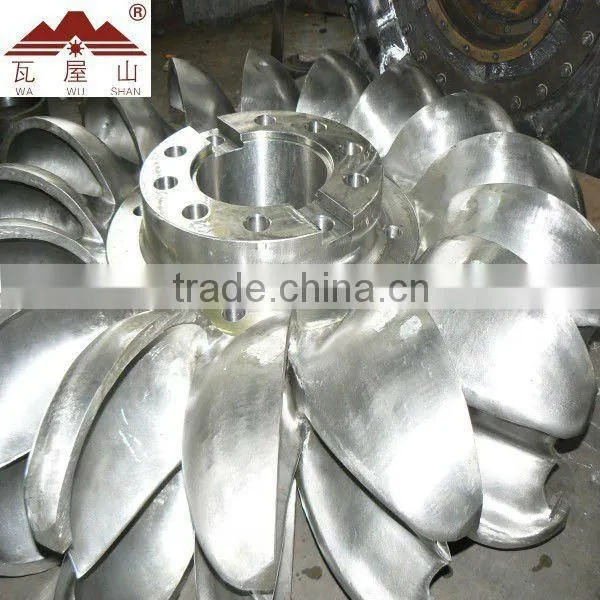

Pelton turbine runner CJA475

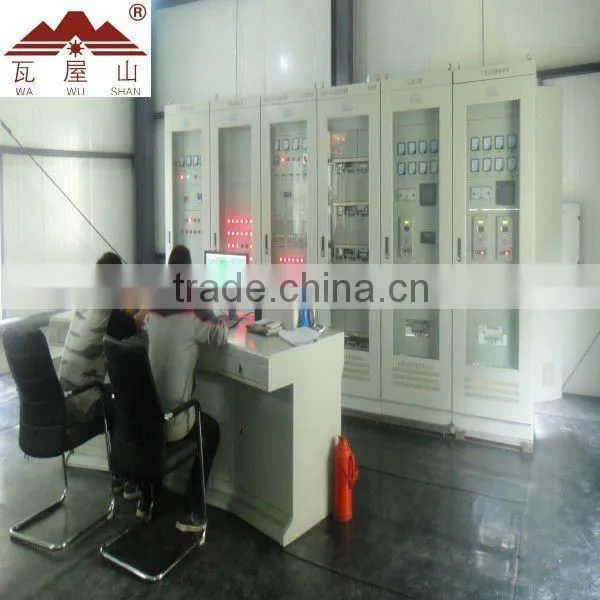

Centre control room

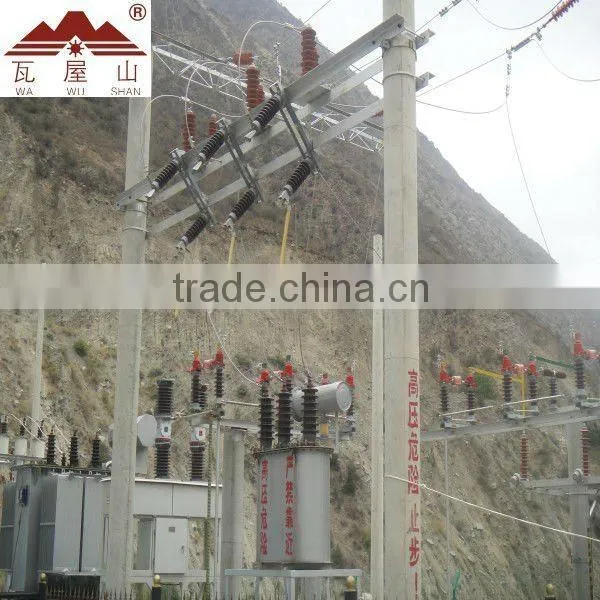

Power transmission part to the power grid
