QC11K-25x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting Machine

Specifications

QC11K hydraulic CNC guillotine shearing machine
Passed CE and ISO,SGS ,Easy to operation High performance
National high

Features of CNC Hydraulic Shearing Machine QC11K:
- Welded steel plate construction makes this metal machining tool have high strength and good durability
-As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal), shadow-line cutting.

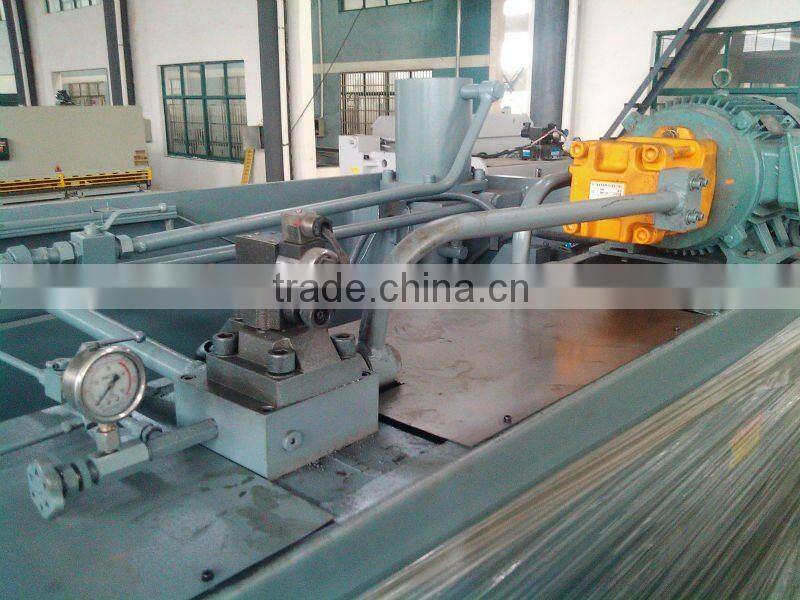

-This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance
- Highly reliable integrated hydraulic system
- Adopt handwheel to rapidly and accurately adjust the blade clearance
- The rectangular monoblock blades featuring long life with 4 cutting edges
- Imported servo motor and driver, high in performance
- European key electrics
-The adjustable rake angle can minimize plate deformation
- CNC system to control back gauge working
- Blades clearance, cutting angle and cutting length are automatically calculated and controlled by CNC
- Light alignment device eases drawing line for cutting
- This forging machine is ideally suited for your metal machining requirements

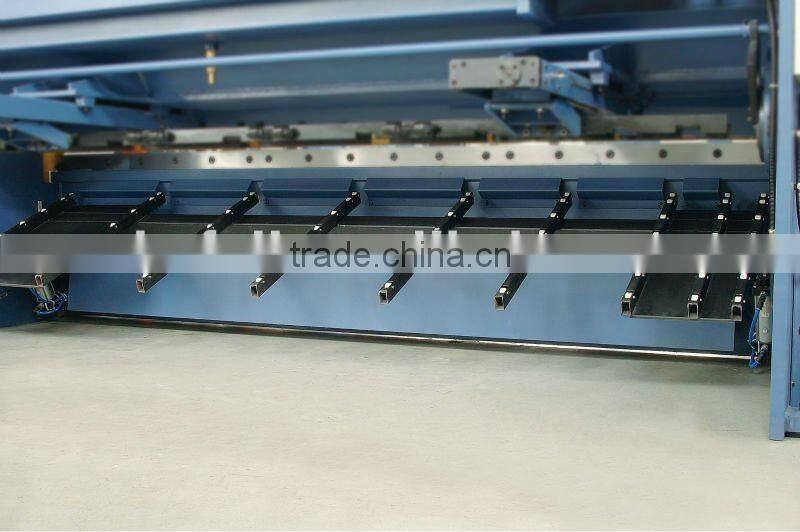

- Standard front support sheet frame
- A set of standard blades
- DAC310, E20 and other systems are optional.
-counter for the motorized back gauge, very accurate and convenient.
-rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
2. Components
-the main sealing components of the cylinder are imported products.

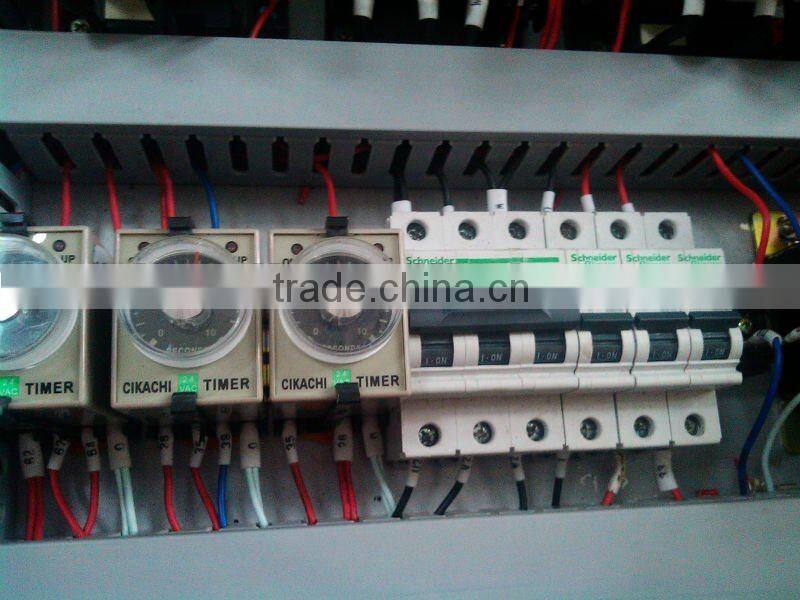

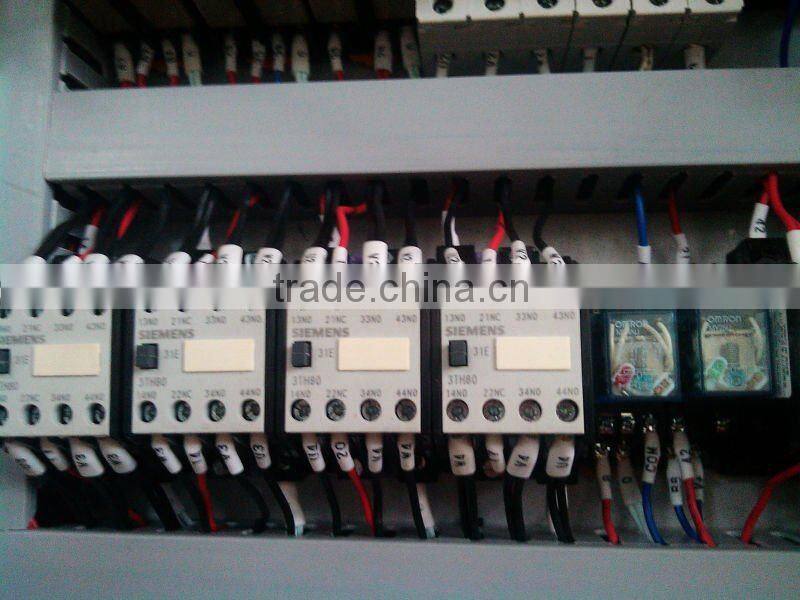

-main electric components: From french schneider.

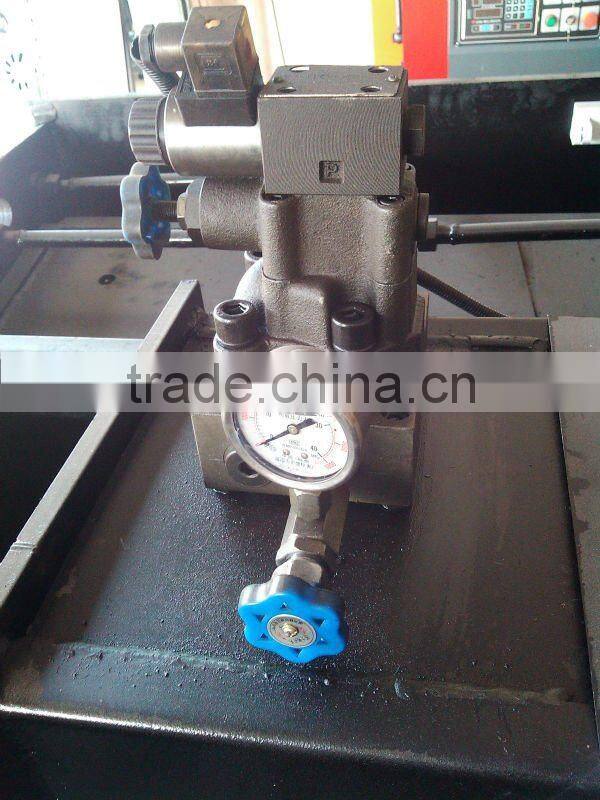

- hydraulic valves are from shanghai hydraulic parts no. 1 plant
- oil pumps are from shanghai hydraulic parts no. 3 plant.
- blades are from shanghai blades plant.





specifications	shearing hickness	shearing width	strokes	backgauge  range	shearing angle	throat  height
	mm	mm	min-1	mm	(°)	mm	kw
QC11K-6X2500	6	2500	16-35	20-600	30-1°30	800	7.5
QC11K-6X3200	6	3200	14-35	20-600	30-1°30	800	7.5
QC11K-6X4000	6	4000	10-30	20-600	30-1°30	800	7.5
QC11K-6X5000	6	5000	10-30	20-800	30-1°30	900	11
QC11K-6X6000	6	6000	8-25	20-800	30-1°30	1000	11
QC11K-8X2500	8	2500	14-30	20-600	30-2°	800	11
QC11K-8X3200	8	3200	12-30	20-600	30-2°	850	11
QC11K-8X4000	8	4000	10-25	20-600	30-2°	900	11
QC11K-8X5000	8	5000	10-25	20-800	30-2°	1000	15
QC11K-8X6000	8	6000	8-20	20-800	30-2°	1050	15
QC11K-12X2500	12	2500	12-25	20-800	30-2°	840	15
QC11K-12X3200	12	3200	12-25	20-800	30-2°	900	15
QC11K-12X4000	12	4000	8-20	20-800	30-2°	940	15
QC11K-12X5000	12	5000	8-20	20-1000	30-2°	1000	22
QC11K-12X6000	12	6000	6-20	20-1000	30-2°	1060	30
QC11K-16X2500	16	2500	12-20	20-800	30-1°30	840	22
QC11Y-16X3200	16	3200	12-20	20-800	30-1°30	900	22
QC11K-16X4000	16	4000	8-15	20-800	30-1°30	940	22
QC11K-16X5000	16	5000	8-15	20-1000	30-1°30	1000	30
QC11K-16X6000	16	6000	6-15	20-1000	30-1°30	1100	37
QC11K-20X2500	20	2500	10-20	20-800	30-3°	900	30
QC11K-20X3200	20	3200	10-20	20-800	30-3°	950	30
QC11K-20X4000	20	4000	8-15	20-800	30-3°	1100	30
QC11K-20X5000	20	5000	8-15	20-1000	30-3°	1100	37
QC11K-20X6000	20	6000	6-15	20-1000	30-3°	1200	37
QC11K-25X2500	25	2500	8-15	20-800	30-1°30	900	37
QC11K-25X3200	25	3200	8-15	20-800	30-1°30	950	37
QC11K-25X4000	25	4000	6-12	20-1000	30-1°30	1100	37
QC11K-32X2500	32	2500	6-12	20-1000	30-4°	1000	55
QC11K-32X3200	32	3200	8-12	20-1000	30-4°	1100	55
QC11K-40X2500	40	2500	4-10	20-1000	30-4°	1200	55
QC11K-40X3200	40	3200	4-10	20-1000	30-4°
