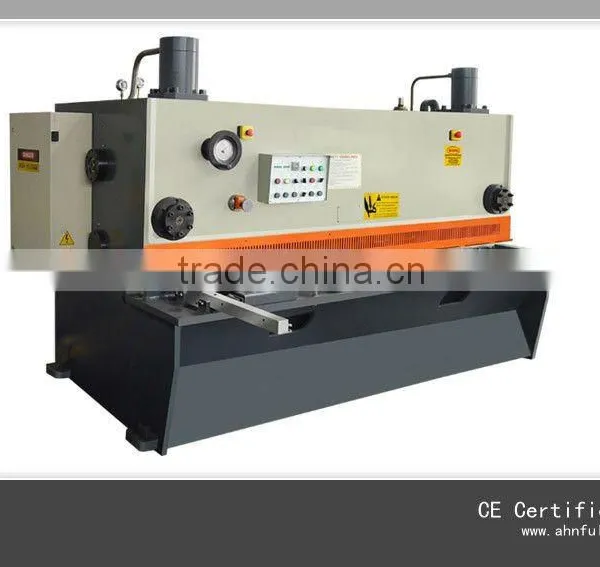

QC11K-16x2500 CNC Guillotine Shearing Machine, CNC Steel Plate Cutting Machine

QC11K-16x2500 CNC Guillotine Shearing Machine, CNC Steel Plate Cutting Machine thumbnail-1
QC11K-16x2500 CNC Guillotine Shearing Machine, CNC Steel Plate Cutting Machine photo-1
US$ 3,000 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
NFL
Model Number:
QC11K
Contact Supplier Request Quote Chat Now
Maanshan New Fuli Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name NFL
Model Number QC11K
Rated Power 1
Weight 1

Specifications

QC11K hydraulic CNC guillotine shearing machine
Passed CE and ISO,SGS ,Easy to operation High performance
National high

Features of CNC Hydraulic Shearing Machine QC11K:
- Welded steel plate construction makes this metal machining tool have high strength and good durability
-As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal), shadow-line cutting.
-This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance
- Highly reliable integrated hydraulic system
- Adopt handwheel to rapidly and accurately adjust the blade clearance
- The rectangular monoblock blades featuring long life with 4 cutting edges
- Imported servo motor and driver, high in performance
- European key electrics
-The adjustable rake angle can minimize plate deformation
- CNC system to control back gauge working
- Blades clearance, cutting angle and cutting length are automatically calculated and controlled by CNC
- Light alignment device eases drawing line for cutting
- This forging machine is ideally suited for your metal machining requirements
- Standard front support sheet frame
- A set of standard blades
- DAC310, E20 and other systems are optional.
-counter for the motorized back gauge, very accurate and convenient.
-rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
2. Components
-the main sealing components of the cylinder are imported products.
-main electric components: From french schneider.
- hydraulic valves are from shanghai hydraulic parts no. 1 plant
- oil pumps are from shanghai hydraulic parts no. 3 plant.
- blades are from shanghai blades plant.

QC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting Machine

 QC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting MachineQC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting Machine

QC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting MachineQC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting MachineQC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting MachineQC11K-16x2500 CNC guillotine shearing machine, CNC Steel Plate Cutting Machine



specifications   shearing hickness   shearing width strokes   backgauge  range   shearing angle    throat  height
mm mm min-1 mm (°) mm kw
QC11K-6X2500 6 2500 16-35 20-600 30-1°30 800 7.5
QC11K-6X3200 6 3200 14-35 20-600 30-1°30 800 7.5
QC11K-6X4000 6 4000 10-30 20-600 30-1°30 800 7.5
QC11K-6X5000 6 5000 10-30 20-800 30-1°30 900 11
QC11K-6X6000 6 6000 8-25 20-800 30-1°30 1000 11
QC11K-8X2500 8 2500 14-30 20-600 30-2° 800 11
QC11K-8X3200 8 3200 12-30 20-600 30-2° 850 11
QC11K-8X4000 8 4000 10-25 20-600 30-2° 900 11
QC11K-8X5000 8 5000 10-25 20-800 30-2° 1000 15
QC11K-8X6000 8 6000 8-20 20-800 30-2° 1050 15
QC11K-12X2500 12 2500 12-25 20-800 30-2° 840 15
QC11K-12X3200 12 3200 12-25 20-800 30-2° 900 15
QC11K-12X4000 12 4000 8-20 20-800 30-2° 940 15
QC11K-12X5000 12 5000 8-20 20-1000 30-2° 1000 22
QC11K-12X6000 12 6000 6-20 20-1000 30-2° 1060 30
QC11K-16X2500 16 2500 12-20 20-800 30-1°30 840 22
QC11Y-16X3200 16 3200 12-20 20-800 30-1°30 900 22
QC11K-16X4000 16 4000 8-15 20-800 30-1°30 940 22
QC11K-16X5000 16 5000 8-15 20-1000 30-1°30 1000 30
QC11K-16X6000 16 6000 6-15 20-1000 30-1°30 1100 37
QC11K-20X2500 20 2500 10-20 20-800 30-3° 900 30
QC11K-20X3200 20 3200 10-20 20-800 30-3° 950 30
QC11K-20X4000 20 4000 8-15 20-800 30-3° 1100 30
QC11K-20X5000 20 5000 8-15 20-1000 30-3° 1100 37
QC11K-20X6000 20 6000 6-15 20-1000 30-3° 1200 37
QC11K-25X2500 25 2500 8-15 20-800 30-1°30 900 37
QC11K-25X3200 25 3200 8-15 20-800 30-1°30 950 37
QC11K-25X4000 25 4000 6-12 20-1000 30-1°30 1100 37
QC11K-32X2500 32 2500 6-12 20-1000 30-4° 1000 55
QC11K-32X3200 32 3200 8-12 20-1000 30-4° 1100 55
QC11K-40X2500 40 2500 4-10 20-1000 30-4° 1200 55
QC11K-40X3200 40 3200 4-10 20-1000 30-4°
