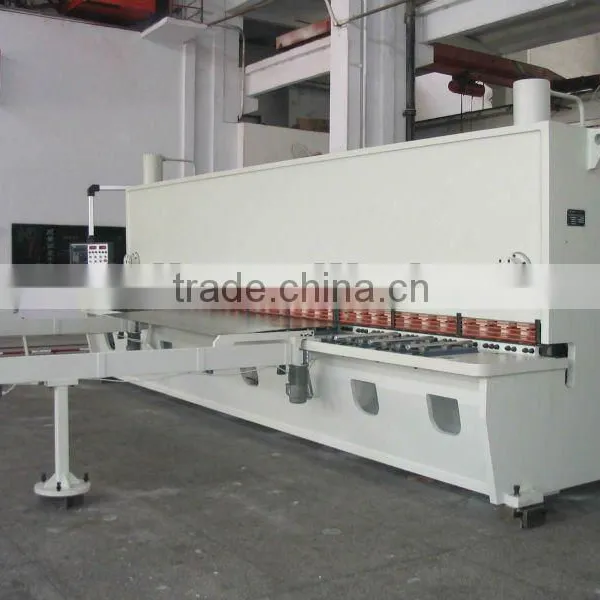

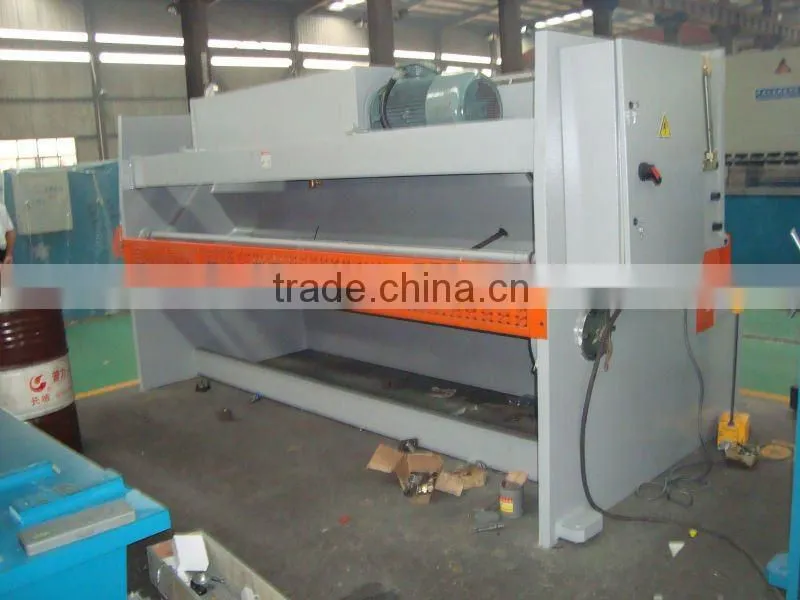

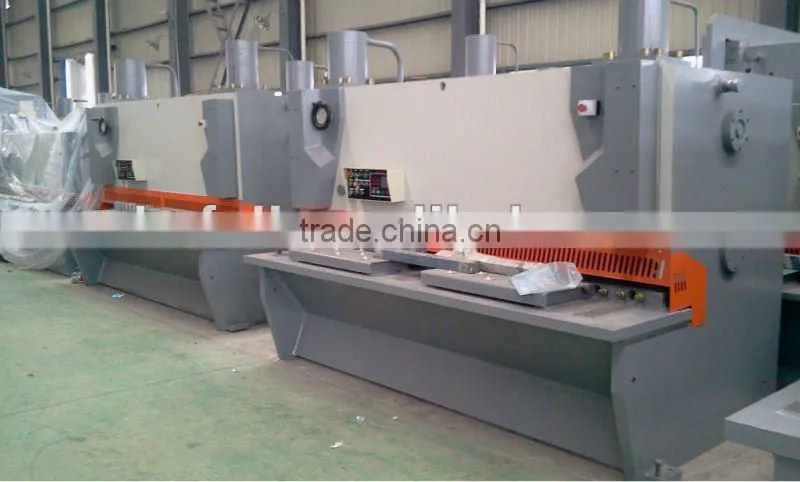

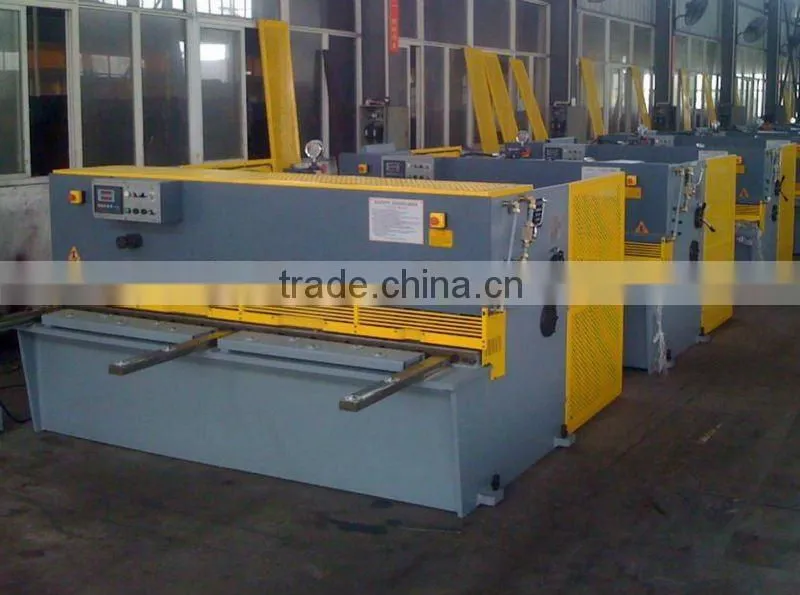

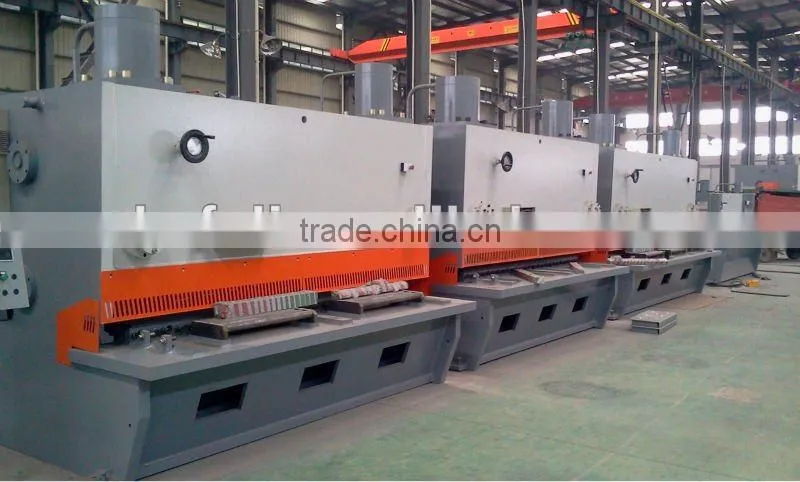

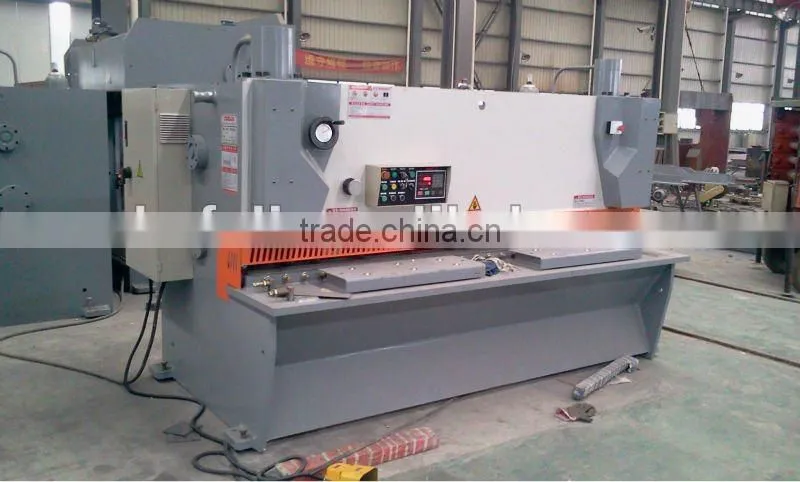

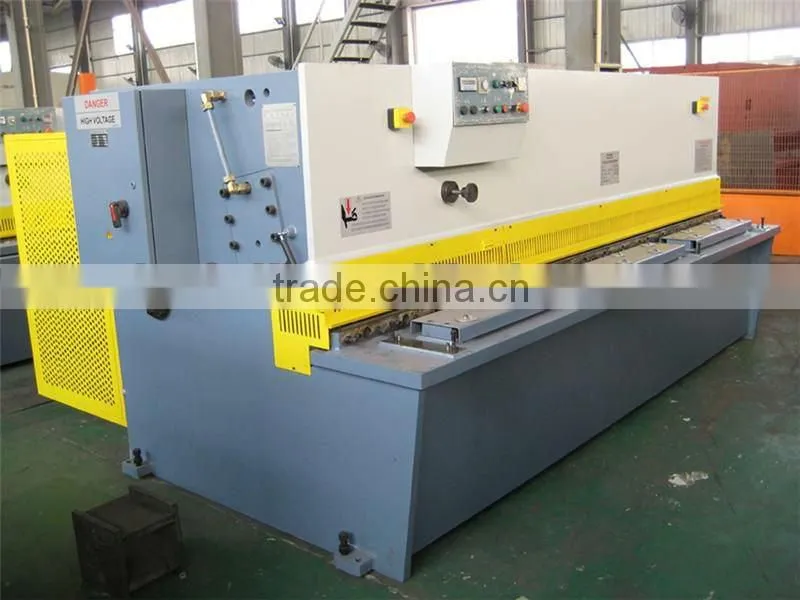

QC11K Hydraulic CNC Guillotine Shearing Machine
US$ 8,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
NFL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QC12Y-10x3200 Hydraulic Pendulum Shearing Machine/Pendulum ShearUS$ 5,000 - 10,000MOQ: 1 Set -
QC12Y-10x3200 Hydraulic Pendulum Shearing MachineUS$ 12,000 - 15,000MOQ: 1 Set
-
Hydraulic Pendulum Metal Sheet Cutting MachineUS$ 12,000 - 15,000MOQ: 1 Set
-
NC Hydraulic Shearing MachineUS$ 1,200 - 90,000MOQ: 1 Set
-
NC Hydraulic Shearing Machine With E10US$ 1,200 - 90,000MOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
NFL
Model Number
QC11K
Voltage
220V 380V 415V 480V
Rated Power
11
Dimension(L*W*H)
4200*1850*1850
Weight
11000
Certification
CE SGS CQC
Warranty
TWO YEARS
After-sales Service Provided
Engineers available to service machinery overseas
hydraulic guillotine shear QC11Y:
1, the blade gap adjustment drived through worm reducer, by the MD-100 system, encoder feedback, adapt to different thickness and material needs of the shear.
2, Turret shear angle adjustment by the MD-100 system, through synchronization round, time belt control, encoder feedback, can adjust in a certain extent, can make deformation of shear materials reduce to ideal state.
3, back gauge adjustment drived through worm reducer, parachute gear, by MD-100 system, encoder feedback has ensured accuracy of back gauge(≤ ± 0.10 mm).
| specifications | shearing hickness | shearing width | strokes | backgauge range | shearing angle | throat height | |
| mm | mm | min-1 | mm | (°) | mm | kw | |
| QC11Y-6X2500 | 6 | 2500 | 16-35 | 20-600 | 30-1°30 | 800 | 7.5 |
| QC11Y-6X3200 | 6 | 3200 | 14-35 | 20-600 | 30-1°30 | 800 | 7.5 |
| QC11Y-6X4000 | 6 | 4000 | 10-30 | 20-600 | 30-1°30 | 800 | 7.5 |
| QC11Y-6X5000 | 6 | 5000 | 10-30 | 20-800 | 30-1°30 | 900 | 11 |
| QC11Y-6X6000 | 6 | 6000 | 8-25 | 20-800 | 30-1°30 | 1000 | 11 |
| QC11Y-8X2500 | 8 | 2500 | 14-30 | 20-600 | 30-2° | 800 | 11 |
| QC11Y-8X3200 | 8 | 3200 | 12-30 | 20-600 | 30-2° | 850 | 11 |
| QC11Y-8X4000 | 8 | 4000 | 10-25 | 20-600 | 30-2° | 900 | 11 |
| QC11Y-8X5000 | 8 | 5000 | 10-25 | 20-800 | 30-2° | 1000 | 15 |
| QC11Y-8X6000 | 8 | 6000 | 8-20 | 20-800 | 30-2° | 1050 | 15 |
| QC11Y-12X2500 | 12 | 2500 | 12-25 | 20-800 | 30-2° | 840 | 15 |
| QC11Y-12X3200 | 12 | 3200 | 12-25 | 20-800 | 30-2° | 900 | 15 |
| QC11Y-12X4000 | 12 | 4000 | 8-20 | 20-800 | 30-2° | 940 | 15 |
| QC11Y-12X5000 | 12 | 5000 | 8-20 | 20-1000 | 30-2° | 1000 | 22 |
| QC11Y-12X6000 | 12 | 6000 | 6-20 | 20-1000 | 30-2° | 1060 | 30 |
| QC11Y-16X2500 | 16 | 2500 | 12-20 | 20-800 | 30-1°30 | 840 | 22 |
| QC11Y-16X3200 | 16 | 3200 | 12-20 | 20-800 | 30-1°30 | 900 | 22 |
| QC11Y-16X4000 | 16 | 4000 | 8-15 | 20-800 | 30-1°30 | 940 | 22 |
| QC11Y-16X5000 | 16 | 5000 | 8-15 | 20-1000 | 30-1°30 | 1000 | 30 |
| QC11Y-16X6000 | 16 | 6000 | 6-15 | 20-1000 | 30-1°30 | 1100 | 37 |
| QC11Y-20X2500 | 20 | 2500 | 10-20 | 20-800 | 30-3° | 900 | 30 |
| QC11Y-20X3200 | 20 | 3200 | 10-20 | 20-800 | 30-3° | 950 | 30 |
| QC11Y-20X4000 | 20 | 4000 | 8-15 | 20-800 | 30-3° | 1100 | 30 |
| QC11Y-20X5000 | 20 | 5000 | 8-15 | 20-1000 | 30-3° | 1100 | 37 |
| QC11Y-20X6000 | 20 | 6000 | 6-15 | 20-1000 | 30-3° | 1200 | 37 |
| QC11Y-25X2500 | 25 | 2500 | 8-15 | 20-800 | 30-1°30 | 900 | 37 |
| QC11Y-25X3200 | 25 | 3200 | 8-15 | 20-800 | 30-1°30 | 950 | 37 |
| QC11Y-25X4000 | 25 | 4000 | 6-12 | 20-1000 | 30-1°30 | 1100 | 37 |
| QC11Y-32X2500 | 32 | 2500 | 6-12 | 20-1000 | 30-4° | 1000 | 55 |
| QC11Y-32X3200 | 32 | 3200 | 8-12 | 20-1000 | 30-4° | 1100 | 55 |
| QC11Y-40X2500 | 40 | 2500 | 4-10 | 20-1000 | 30-4° | 1200 | 55 |
| QC11Y-40X3200 | 40 | 3200 | 4-10 | 20-1000 | 30-4° |
