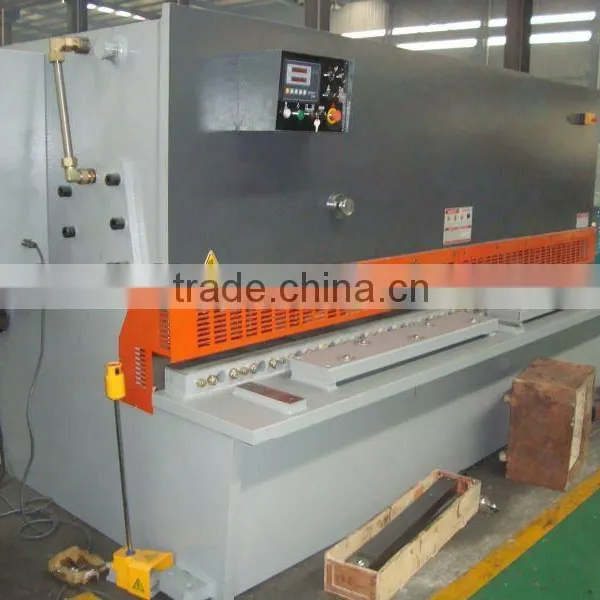

NC Hydraulic Shearing Machine

US$ 1,200 - 90,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

NFL

Model Number:

QC12Y

Maanshan New Fuli Machinery Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name NFL

Model Number QC12Y

Specifications

hydraulic pendulum metal sheet cutting machine
CE, ISO, good quality, High-precision

The machine body adopts integral welded construction which is tempered in furnace;

Hydralic transmission and nitrogen gas cylinder return stroke;

Equipped with light alignment device which can steplessly adjust the stroke of upper rest;

Equipped with fence type protective device for safety;

Length of backgauge and shearing times can be read by digital display device.

Model	Maximum shearing thickness mm	Maximum shearing width mm	Shearing angle mm	Sheet strength n/mm2	Backgauge station mm	Motor Power kw	Overall dimensions £¨L¡ÁW¡ÁH£© mm	Weight kg
QC12Y-4x2500	4	2500	130	450	600	4	3100x1405x1500	4300
QC12Y-4x3200	4	3200	130	450	600	5.5	3800x1600x1620	5800
QC12Y-4x4000	4	4000	130	450	600	5.5	4600x1700x1850	7500
QC12Y-6x2500	6	2500	130	450	600	7.5	3100x1580x1550	5800
QC12Y-6x3200	6	3200	130	450	600	7.5	3800x1600x1620	6800
QC12Y-6x4000	6	4000	130	450	600	7.5	4600x1700x1850	8500
QC12Y-6x6000	6	6000	130	450	600	7.5	6650x2500x1980	18000
QC12Y-8x2500	8	2500	130	450	600	11	3140x1590x1570	5800
QC12Y-8x3200	8	3200	130	450	600	11	3800x1750x1700	7500
QC12Y-8x4000	8	4000	130	450	600	11	4600x1900x1780	9600
QC12Y-8x6000	8	6000	130	450	600	11	6680x2550x1990	19800
QC12Y-12x2500	12	2500	140	450	800	18.5	3150x1980x1850	9500
QC12Y-12x3200	12	3200	140	450	800	18.5	3850x2040x1900	11500
QC12Y-12x4000	12	4000	140	450	800	18.5	4650x2380x1980	14600
QC12Y-12x6000	12	6000	140	450	800	18.5	6680x2470x2850	26000
QC12Y-16x2500	16	2500	220	450	800	18.5	3180x2150x1880	11500
QC12Y-16x3200	16	3200	220	450	800	18.5	3880x2450x2030	14700
QC12Y-16x4000	16	4000	230	450	800	18.5	4680x2650x2100	19000
QC12Y-20x2500	20	2500	230	450	1000	30	3180x2420x2020	14800
QC12Y-20x3200	20	3200	230	450	1000	30	3880x2680x2150	19500
QC12Y-20x4000	20	4000	230	450	1000	30	4680x3100x2250	25000
QC12Y-20x6000	20	6000	230	450	1000	30	6750x2350x3600	56000
QC12Y-25x2500	25	2500	3	450	1000	30	3280x2650x2300	19000
QC12Y-32x2500	32	2500	330	450	1000	37	3300x2850x2450	25000
