steel iron worker , ironworker for metal works, steel worker, shearing and punching

Specifications

Iron worker,press machine,steel worker,hydraulic iron worker, hydraulic steel worker, punching and shearing machine,

   Ironworker :Ten Function in One Machine, hydraulic shearing, punching, bending, notching machine

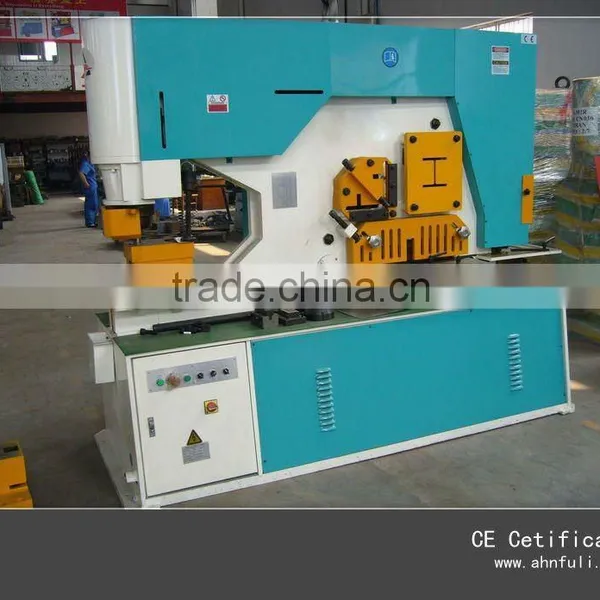

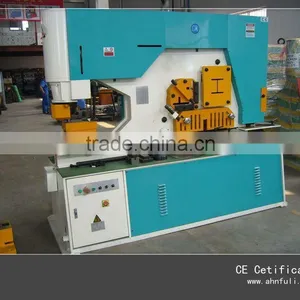

   Q35Y series hydraulic ironworkers adopt hydraulic driving system. Iron worker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bar, profiled bars ,channel steel and joist steel can be cutted, punched and notched on the machines.

Detailed function as follow:

1) Robust and accurate steel frame

2) Large punch table with scales

3) Removable bolster for punching flanges and channel and beam

4) 2 independent hydraulic cylinders

5) 2 shielded foot controls

6) 2 Separate Die Openings for oversized punching

7) 5 working stations for wide applications

8) Power inching on all 5 work stations

9) Plate shear support/table and notching table

10) Adjustable stroke controls with indicators on both cylinders

11) Movable work light as standard

12) Overload protection on hydraulic system

13) Electric back gauge

14) 5 pieces punches and dies (punch die, angel steel, square steel, round iron and a series of shearing die)

15) Other punches and dies can be produced as clients’ requirement.

TECHANICAL DATA AS FOLLOWS:

A Special order for the joist and channel moulds needed.
