Q35Y metal steel Hydraulic Iron cutting machine, steel rod cutting machine
- 10 Set / Sets per Month
- Shanghai
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Anhui, China | Brand Name: | New Fuli | Model Number: | Q35Y |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Iron worker,press machine,steel worker,hydraulic iron worker, hydraulic steel worker, punching and shearing machine,

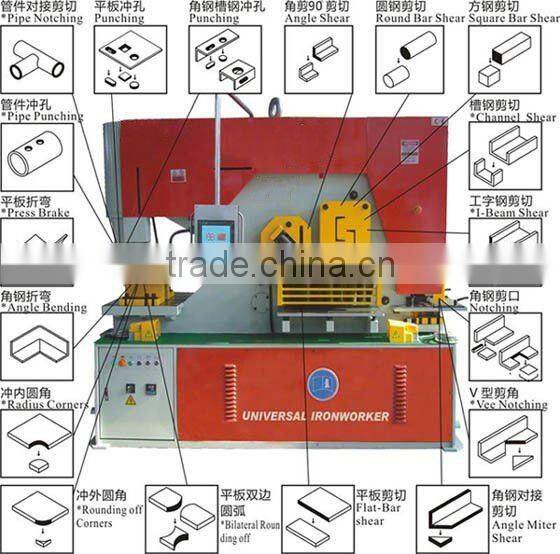

Ironworker :Ten Function in One Machine, hydraulic shearing, punching, bending, notching machine

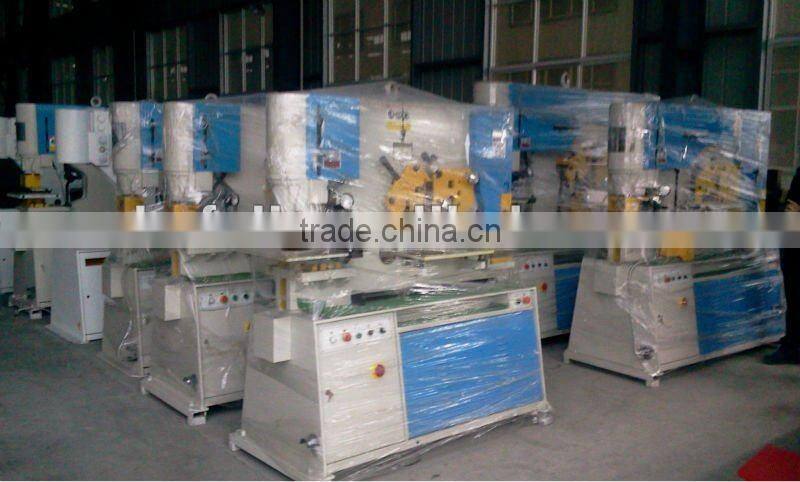

Q35Y series hydraulic ironworkers adopt hydraulic driving system. Iron worker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bar, profiled bars ,channel steel and joist steel can be cutted, punched and notched on the machines.
Detailed function as follow:
1) Robust and accurate steel frame

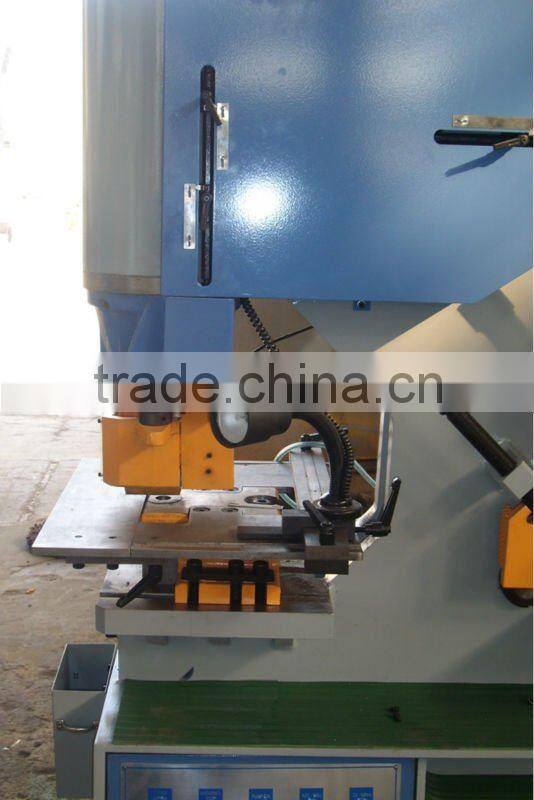

2) Large punch table with scales
3) Removable bolster for punching flanges and channel and beam
4) 2 independent hydraulic cylinders
5) 2 shielded foot controls
6) 2 Separate Die Openings for oversized punching
7) 5 working stations for wide applications
8) Power inching on all 5 work stations
9) Plate shear support/table and notching table
10) Adjustable stroke controls with indicators on both cylinders
11) Movable work light as standard
12) Overload protection on hydraulic system
13) Electric back gauge

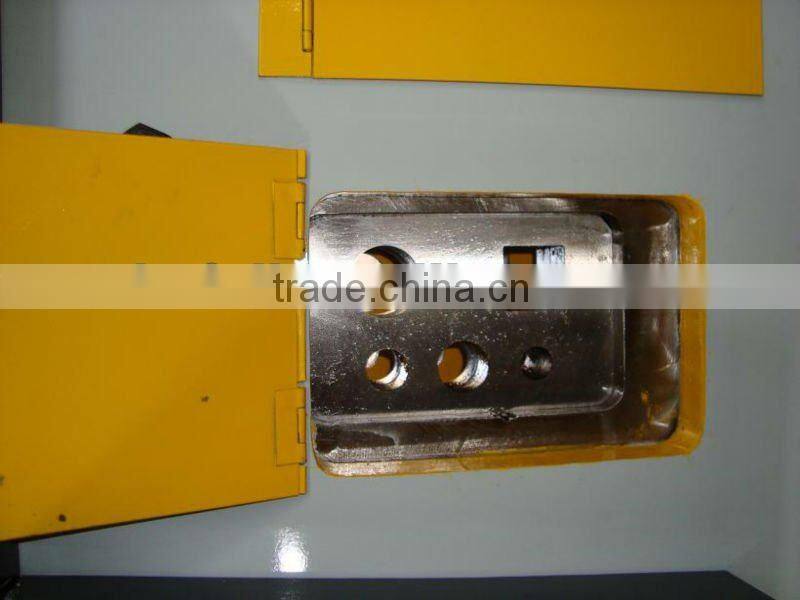

14) 5 pieces punches and dies (punch die, angel steel, square steel, round iron and a series of shearing die)
15) Other punches and dies can be produced as clients’ requirement.
TECHANICAL DATA AS FOLLOWS:
A Special order for the joist and channel moulds needed.
Specification Model | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
Pressure | TON | 55 | 75 | 110 | 140 |
Max.cutting tickness | Mm | 16 | 20 | 25 | 30 |
Plate strength | n/mm2 | <450 | <450 | <45 | <45 |
Cutting angle | degree | 7 | 8 | 8 | 8 |
Shearing size of one stroke | mm | 16*250,8*400 | 20*330 ,10*480 | 25*300 ,16*600 | 30*355 , 20*600 |
Ram stroke | mm | 80 | 80 | 80 | 80 |
Number of strokes | cpm | 8 | 8 | 6 | 8 |
Throat thickness | mm | 300 | 355 | 400 | 600 |
Pumching thickness | mm | 16 | 20 | 25 | 26 |
Max.Puching diameter | mm | 25 | 30 | 35 | 38 |
Power of main motor | Km | 4 | 5.5 | 7.5 | 11 |
Profile for cutting |
|
|
|
|
|
Round Bar | mm | 45 | 50 | 60 | 65 |
Square Bar | mm | 40*40 | 50*50 | 50*50 | 55*55 |
Equal Angle | 90°Shearing | 125*125*12 | 140*140*12 | 160*160*14 | 180*180*16 |
45°Shearing | 70*70*8 | 70*70*10 | 80*80*7 | 80*80*10 | |
T-Bar | 90°Shearing | 120*120*12 | 140*140*12 | 160*160*14 | 180*180*16 |
45°Shearing | 60*60*8 | 70*70*10 | 80*80*10 | 80*80*10 | |
Joist | mm | 126*74*5 | 160*86*6 | 200*102*9 | 280*124*10.5 |
Channel | mm | 126*53*5.5 | 160*60*6.5 | 200*75*9 | 280*86*11.5 |
dimensions(L*W*H) | Mm | 1640*730*1770 | 1860*800*1900 | 2355*960*2090 | 2680*1040*2330 |
Weight | Kg | 1600 | 2000 | 4800 | 6800 |
