Water turbine for micro hydro power plant/ pelton turbine
- 200 Set / Sets per Month
- Shanghai or any port as required
- T/T L/C D/P D/A Credit Card PayPal
- China manufacture Lock sheet Generator QFSN-300-2-20B for Pacitcan TPP material
- Yawing horizontal axis wind generator 25kw
- 2kw Eolica wind generator
- 3KW 360 RPM Permanent Magnet Generator For Wind Turbine Or Hydro Turbine Customized Electric Motor
- 2000W Wind-solar Hybrid Home Wind Power Generation Five-blade portable manufacturers 48v wind generator turbine price
- 300w household small wind generator solar wind energy power generation system micro generator set home use wind turbines price
Product Details
Place of Origin: | Sichuan, China | Brand Name: | WA WU SHAN | Model Number: | HL- |
Type: | Other, Hydro power |
Product Description
Specifications
1.ISO9001-20082.SGS& BV,TUV&ISO certified
3.Competitive price&good quality&industry-leading runner
4.Customized design
Hongya Power Generating Equipment to Utilities Limited (HPGE for short)is professional manufacturer of hydro power turbine from 50KW to 20MW. Hydro turbines manufactured by HPGE are of different types, with high efficiency, reliable quality, and they enjoy good reputation in both domestic and overseas market.
For Francis turbine, You can find the general specification as below.
1. A type of hydropower reaction turbine.
2. Runner blades typically 9 to 19 in number, which cannot be adjusted.
3. Runner Diameter 0.35m to 4m.
4. The applicable design head is 2m to 800m,.
5. Unit capacity 50KW to 12 MW.
6. Specific speed 50 to 300 rpm.
7. Efficiency 85% to 95%.
8. Life span 30 to 50 years.
For Turgo turbine, You can find the general specification as below.
1.A type of impulse turbine, similar to pelton turbine but can handle higher flow rates.
2. Applicable net head 40m-300m.
3. Unit capacity 50KW to 20MW.
4. Efficiency 85% to 95%.
5. Life span 30 to 50 years.
For Pelton turbine, You can find the general specification as below.
1. Also called a free-jet turbine or Pelton wheel, a type of impulse turbine.
2. Suited to high head, low flow applications.
3. Can contain up to 6 nozzles.
4. Applicable net head 50m to 1000m.
5. Efficiency 85% to 95%.
6. Life span 30 to 50 years.
For Kaplan turbine, You can find the general specification as below.
1. A propeller-type of water turbine, evolution of the Francis turbine with adjustable blades, widely used throughout the world in high-flow, low head power production.
2. Head ranges from 2m to 40m.
3. Runner diameters from 2m to 8m.
4.Turbine range from 79rpm to 429rpm.
Runner:
Francis turbine runner

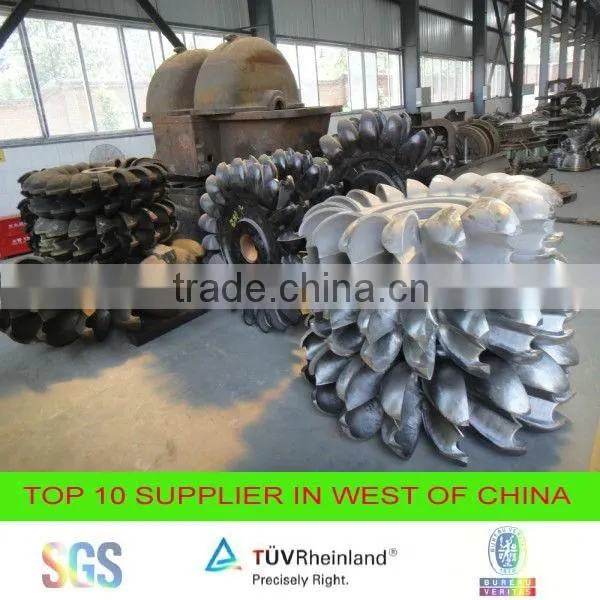

Pelton turbine runner:
Turgo turbine tunner:
Axial flow turbine runner:
Package and transport:
How to inquire our product?
1. please send us the detailed parameters of the HPP
A Water head----- m
B Flow------ m³/s
C Installed capacity--- KW
D Frequency---- 50HZ or 60HZ
E Generator excitation-- static SCR excitation or brushless excitation
Those parameters will decide which type of turbine and generator best satisfy your water condition.
2. Tell us your requirements of the water turbine generator unit.
A Does special material required for the equipments?
B Does the unit controlled manually or by computer?
C What should be quoted in the proposal?
Mechanical and Electrical part? Swithyard?
If you have any questions, pls. feel free to contact us! We promise you a professional service!
Contact person: Icy Yang
Mobile: 86 15928174370
Skype: icyyang618
