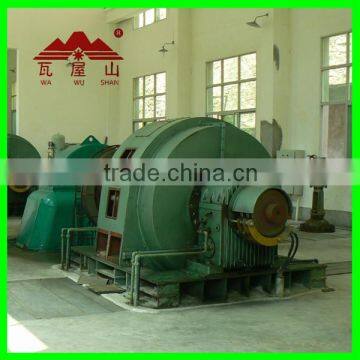

Hydro Turbine Water Generator Manufacturers 1000kw Hydro Generators

Francis turbine

Francis turbine is a reaction turbine and the most common water turbine in use today. It’s of simple structure, small size, low cost and high efficiency. They operate in a head range from 10m to 700m with runner diameter from 0.35 to 4 m, and specific speed 50~300rpm. Currently the largest capacity of our single Francis turbine unit is 6000KW.

Pelton turbine

Pelton turbine is one kind of impulse turbines,used for high-head (50m~1300m) power plants.our company has streamlined the contraction of the nozzle; the energy can flow efficiently into kinetic energy of high-speed jet. While the turbine changes in the load, the water inlet speed and direction keep the same. Pelton turbine changes in a relatively small head, speed, efficiency and therefore the efficiency changes less while the load changes , the maximum efficiency can excess 91%.

Turgo turbine

One of the impulse type, applicable water head 40-300m.

The center line of jet flow with gyration plane of runner is angled 22.5° . The runner is heavily pushed by water from pressure pipe that is switched to high speed jet flow through spray nozzle. The runner works by water flow entering one side of vane and coming out from its other side. It can reliably operate with simple structure, easy inspection and maintenance.

Axial flow turbine

Applicable water head: H=2m to 40m.

Kaplan turbine has two types, fixed blade propeller and Kaplan turbine. The fixed blade type is with fixed runner, generally used for the small load and water changing; The Kaplan type is with adjustable runner by the oil pressure equipment to adapt to the load and water head changing to get the higher average efficiency of some of the Kaplan type turbine is higher than 94%.

 Hongya Power Generating Equipment To Utilities Limited, is a professional manufacturer of water turbine (Francis turbine, pelton turbine, turgo turbine and kaplan turbine), AC three phase synchronous generator, speed governor and hardwares.

We supply equipments to hydro power project with water-to-wire system including  electro-mechanical equipments, scada system, excitation system, control panels, 6.3KV cubicles, power transformer, switchyard equipments etc.

Now we have many projects in China, Albania, Vietnam, Burma, Peru, Berlaus, Russia, Indonesia, Nepal, Turkey, Laos, Sri-lanka and we are working hard to provide qualified equipments worldwide for making a brighter world for everyone.We sincerely hope to cooperate with those who working in hydro power.

HPGE offer a comprehensive range of hydroelectric power plant

solutions that cover the entire scope of service including:

Small hydro power project consultant

Site management studies

Equipments Design

Hydroelectric equipemtns Manufacture

Project management

Installation guidance

Commission and start operation

Operation guidance

Hydroelectric equipments maintainence

How to inquire our product?

1. please send us the detailed parameters of the HPP

A water head----- m

B flow------ m³/s

C Installed capacity--- KW

D frequency---- 50HZ or 60HZ

E Generator excitation-- static SCR excitation or brushless excitation

Those parameters will decide which type of turbine and generator best satisfy your water condition.

2. Tell us your requirements of the water turbine generator unit.

A Does special material required for the equipments?

B Does the unit controlled manually or by computer?

C What should be quoted in the proposal?

Mechanical and Electrical part? Swithyard?
