hydronic power station 6300v high voltage generator 3 phase transformer
- 150 Set / Sets per Month
- Shanghai; Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Jubang | Model Number: | S9/S11 |
Usage: | Power | Phase: | Three | Coil Structure: | Toroidal |
Coil Number: | Autotransformer |
Product Description
hydronic power station 6300v high voltage generator 3 phase transformer
What kind of products we can offer:
1,Francis turbine
Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.
1,Suitable water head : 20-300m
2, Output scope : 50Kw -50Mw
3, Runner diameter : 35cm -250cm
4,Runner material : stainless steel
5, Arrangement type : Vertical and Horizontal

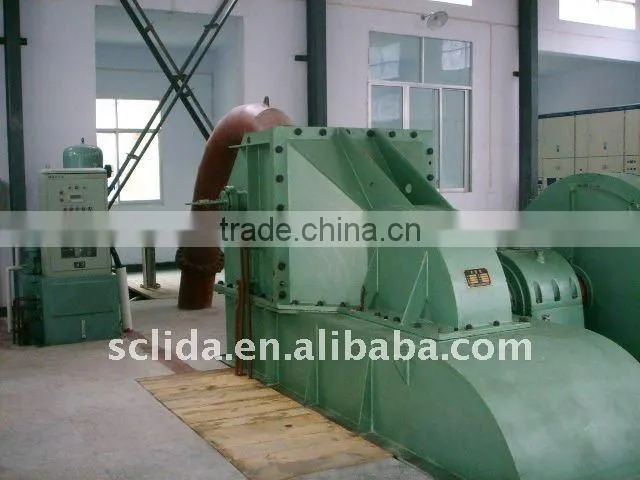

2,Pelton Turbine
Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement, nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.
1,Suitable water head : 80-1000m
2, Output scope : 50Kw -20Mw
3, Runner diameter : 55cm -230cm
4,Runner material :cast or forged stainless steel
5, Arrangement type : Vertical and Horizontal
6, Nozzle numbers : 1-6
3,Kaplan turbine
Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.
Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
1,Suitable water head : 3-45m
2, Output scope : 100Kw -30Mw
3, Runner diameter : 80cm -400cm
4,Runner material : stainless steel
5, Arrangement type : Vertical
4.Turgo Turbine
Turgo turbine is a type of Impulse turbine need less water head than Pelton turbine, transfers the water dynamic energy through the nozzle, impact on the Turgo runner, and then drive the generator transfer to electrical energy. The main different between Turgo turbine and Pelton turbine is the angle of runner center line and jet center line.Turgo turbine suit to 30-400meter water head, and water flow 30L /s -2000L/s, and output range from 10Kw to 3200Kw; runner diameter form 32cm to 80cm. Turgo turbine designed as horizontal simple structure, less investment, high efficiency, and reliable long service life.
1,Suitable water head : 30-400m
2, Output scope : 10Kw -3200Kw
3, Runner diameter : 32cm -800cm
4,Runner material :cast or welded stainless steel
5, Arrangement type : Horizontal
6, Nozzle numbers : 1-2

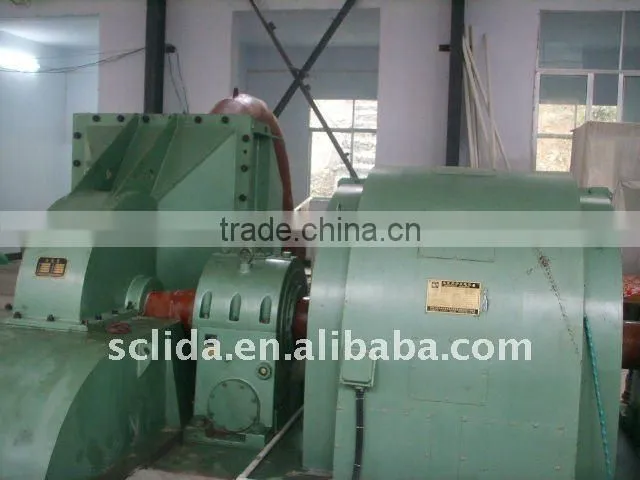

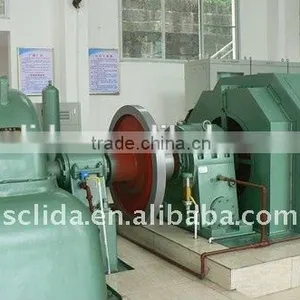

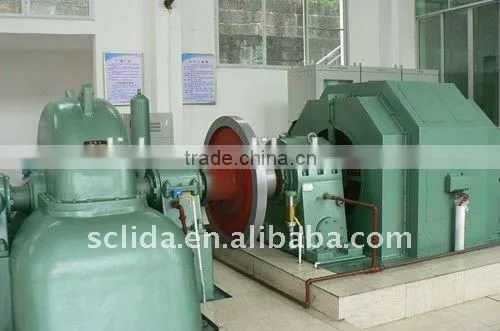

Generator
Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.
1, Frequency: 50 or 60Hz
2, Voltage scope: 0.38-13.8KV
3, Arrangement : vertical and horizontal
4, Speed scope: 93.75-1500r/m
5, Power factor: 0.8 - 1
6 Insulation Level: F/F
7,Output scope: 50Kw- 50Mw

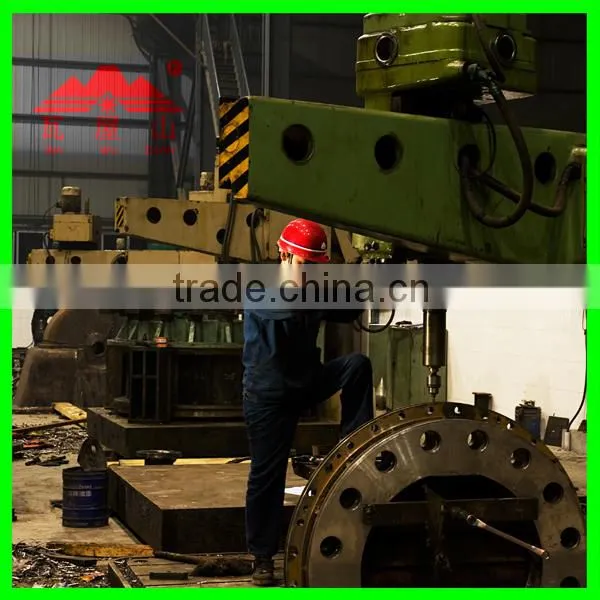

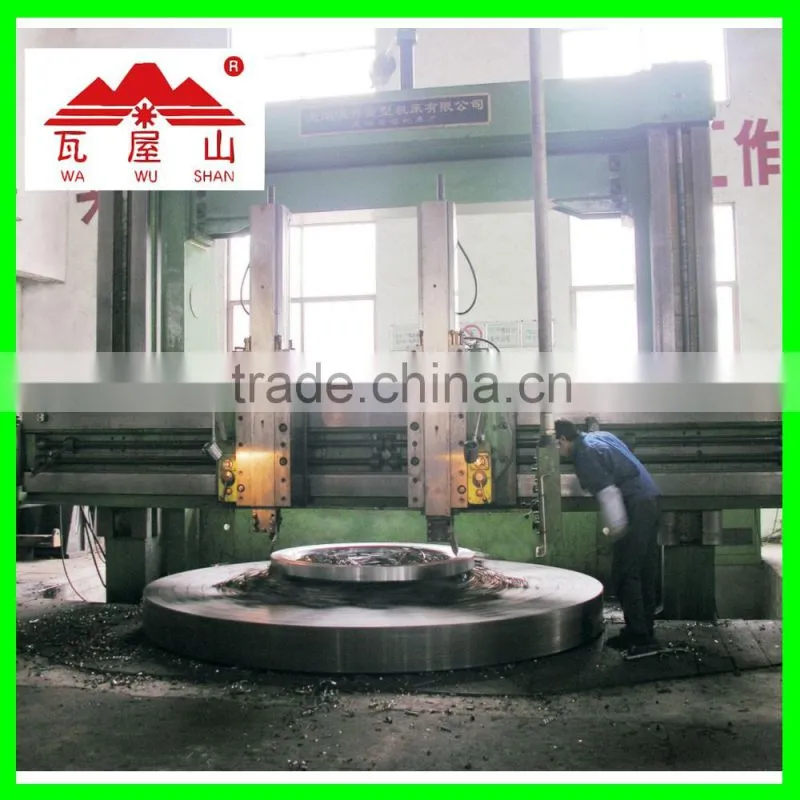

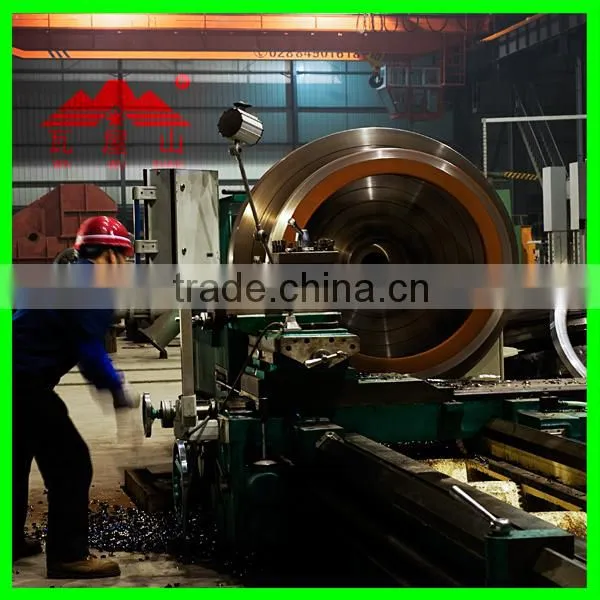

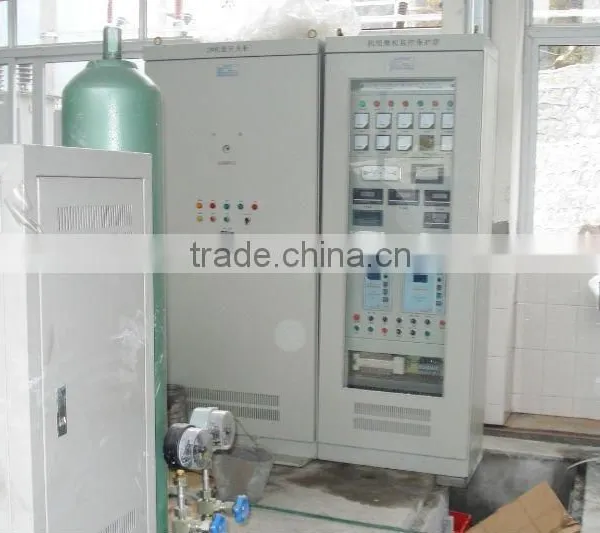

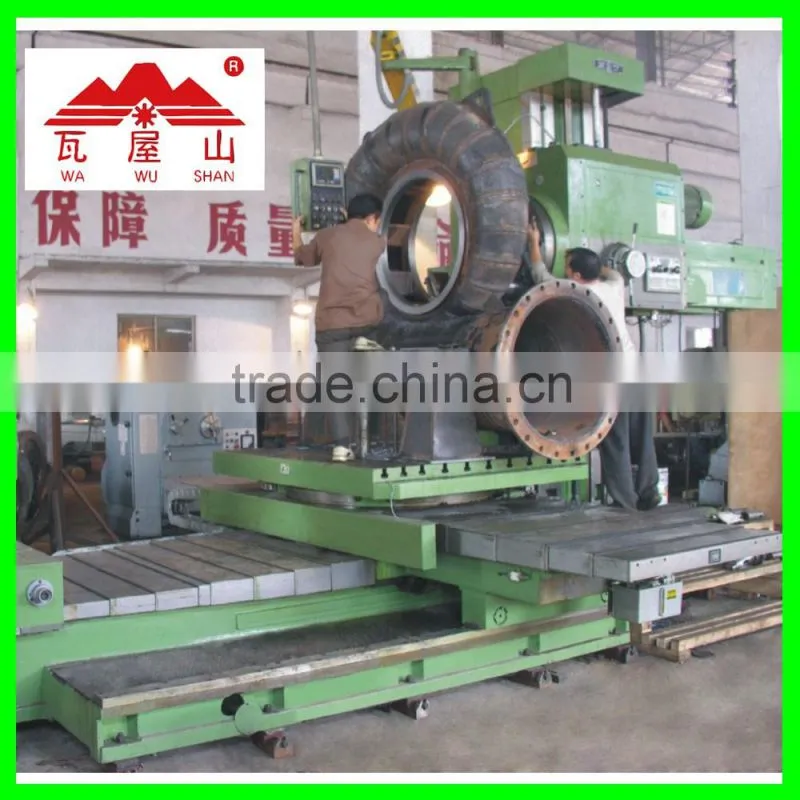

Product pictures:
About packing:
all products will be packed with wooden box as international export term.
you never need to worry damage the device and miss the accessory.
Shipping:
Usually we ship goods by sea to save your cost.
if you want us to ship it by other method,please let us know when we quote you.
We can provide:
1. Professional project advice and economic quotation based on your require
2. Long life-time and quality product
3. Best service from inquiry to install the device for your power plant.
4. Customized products you can choose.
5. On time delivery.
HongYa Power company passed ISO 2008 quality management system and have own brand as WA WU SHAN.
We have more than 10 R & D engineer and release more than 50 new products every year.
Customized project and cost will be made according to different require.
Q1: What kind of water turbine should i choose?
A1: You just tell us water head,water flow,frequency and output power capacity,our engineer will make a project solution to you
Q2: If you can offer us all equipment for my power plant?
A2: Yes,we can offer you water turbine,generator,governor,valve,aotomatic device,control screen and many other products.
Q3: How can we install the devices?
A3: Our company will dispatch enginner person and sales manager to the power plant if you need,they will guide you to install the machines and test them.
Q4: What's the packing of the devices?
A4: All products will be packed as export packing with wooden box to protect the goods
Q5: What's the warranty time?
A5: We provide life-time warranty.
