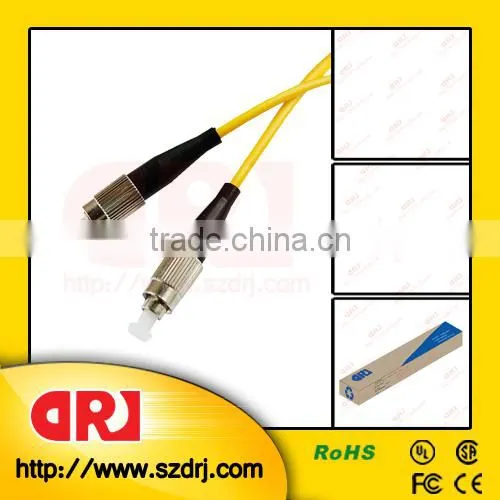

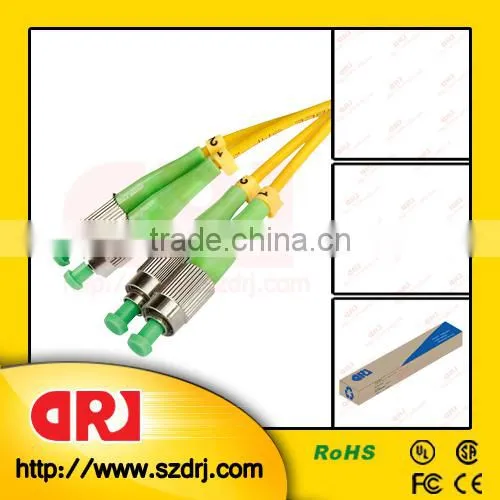

FC-FC SM/MM Fiber Optic Cable With Connector
US$ 1 - 3
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DRJ
Model Number:
FB-FCA-FCA-S2C-XM
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Fiber ConnectorNegotiableMOQ: 500 Pieces -
Made in China 16 Ports ODF Optical Fiber Patch PanelUS$ 10.77 - 15.88MOQ: 50 Pieces
-
China Shenzhen PLC Fiber Optical SplitterNegotiableMOQ: 1000 Pieces
-
Made in China Shenzhen Fiber Optical Distribution BoxNegotiableMOQ: 50 Pieces
-
Made in China Single Mode Simplex LC Type Fiber Optic AdapterUS$ 0.35 - 0.48MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
DRJ
Model Number
FB-FCA-FCA-S2C-XM
Number of Conductors
2
Specifications
1)fiber optic cable2)Good air blowing installation property
3)High density fiber
4)OEM
FC-FC SM/MM Fiber Optic Cable With Connector
Technical Parameters :
1 . Insertion Loss ( Single - Mode : PC ≤ 0.2 db ,APC ≤ 0.3 db , Multi - Mode : PC ≤ 0.3 db ) .
2 . Return Loss ( Single - Mode : PC ≥ 50 db , APC ≥ 50 db , Multi - Mode : PC ≥ 45)
3.Working Temperature:-40 °C ~+75°C
4.Operating Wavelength:1310,1550nm
5.The plug to dial the number of : ≥ 1 , 000 times
Technical Standard:
| SM | MM | |||
| PC | APC | UPC | PC | |
| Insertion Loss | ≤0.2dB | UPC≤0.2dB | APC≤0.2dB | PC≤0.2dB |
| Return Loss | PC≥50dB | APC≥65dB | UPC≥55dB | PC≥35dB |
| Interchangeability | ≤0.2dB | |||
| Salt Spray | ≤0.2dB | |||
| Vibration | (550Hz 1.5mm) ≤0.1dB | |||
| Apex Offset | 0μm≤≤50μm | |||
| Radius of Curvature | 7mm≤≤25mm | |||
| Humidity | (+25+65 93 R.H.100 hours) ≤0.2db | |||
| Cable Type | TypeSimplex, Duplex, Fan-Out | |||
| Connector Type | LC,SC,FC,ST, E2000, MU, MPO, MTRJ,DIN, SMA, FDDI | |||
